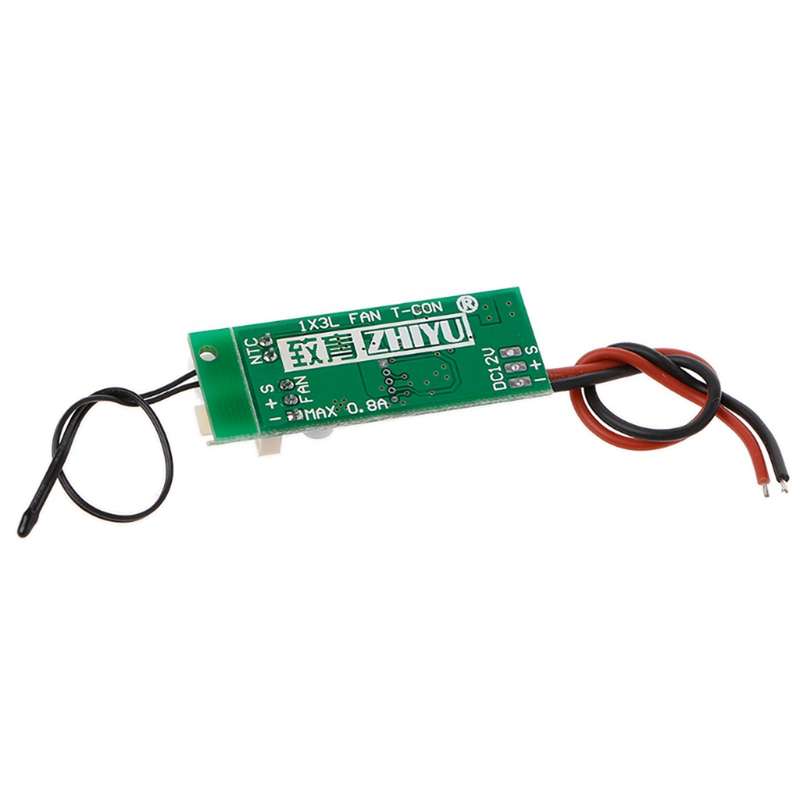

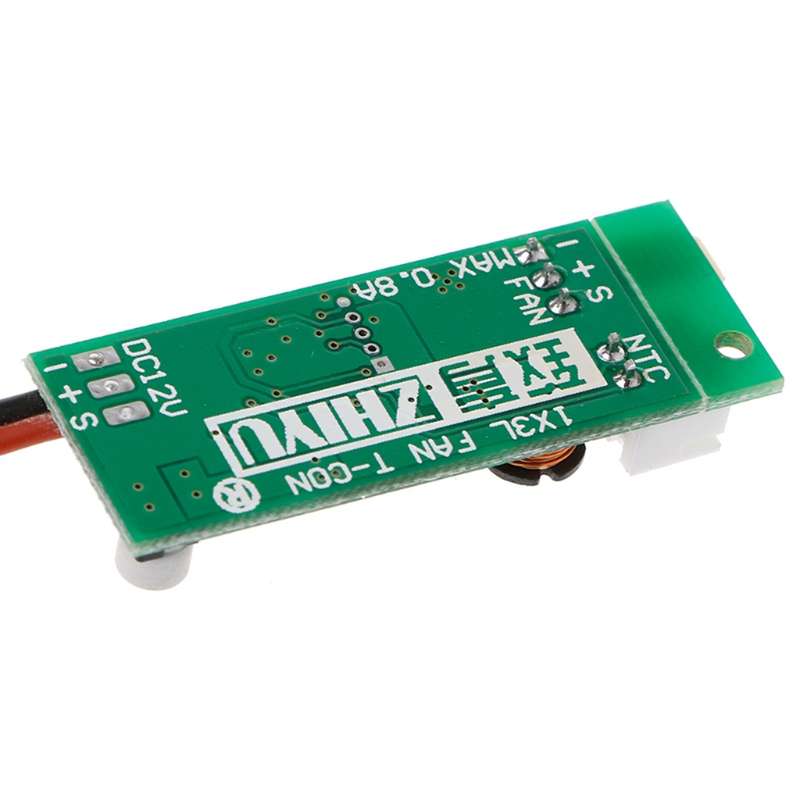

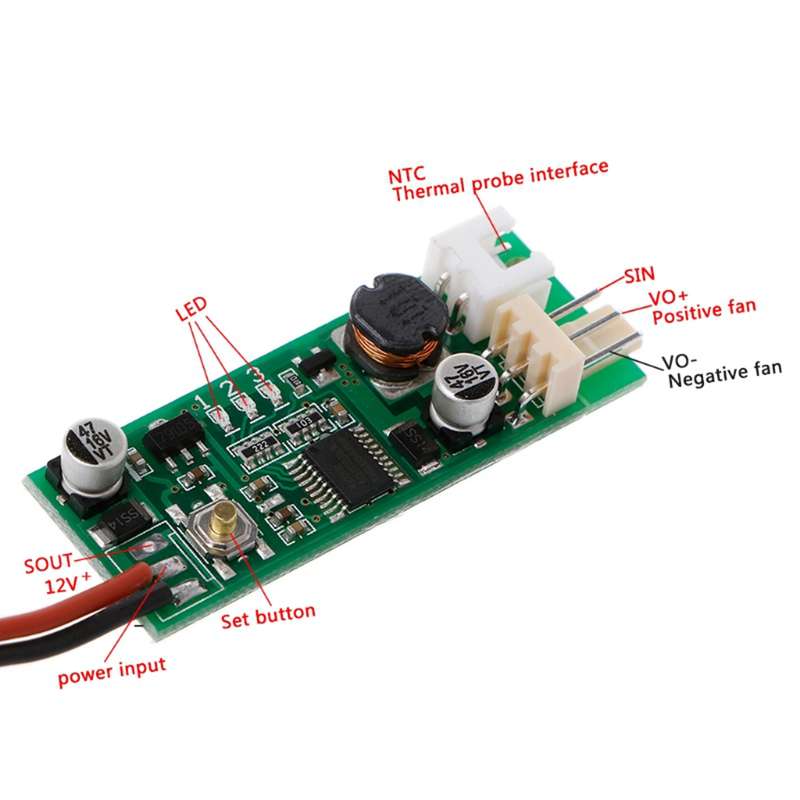

DC 12V Temperature Speed Controller Denoised Speed Controller for PC Fan/Alarm

Specifications: Operating voltage:DC12V can work in 9-14V range Fan interface:2510-3P bend (pin spacing 2.54mm) Fan current:Less than 0.8A Operating temperature:-20 -60a Probe temperature:Small black head 120a Size:4.9x1.8cm/1.93x0.71inch Featuers:

- Protection Input reverse connection protection - No output overload protection!!! Please note that the output should not be short circuited or overloaded - Drive output range 5% -100 part fan low output may not turn,please adjust the fan can start the use of position. - Ring probe 110 Celsius - Fan interface extends 8mm - Setting parameters default factory Low speed 20%. - Acceleration temperature 30 - Acceleration width 5 - Do not shut down the output - At this temperature setting,holding the probe with the palm of the hand will accelerate in a few minutes.If the probe is clamped into the armpit,it will reach full speed in 2 minutes Package Included: 1x DC 12V Temperature Speed controler 1x Probe
