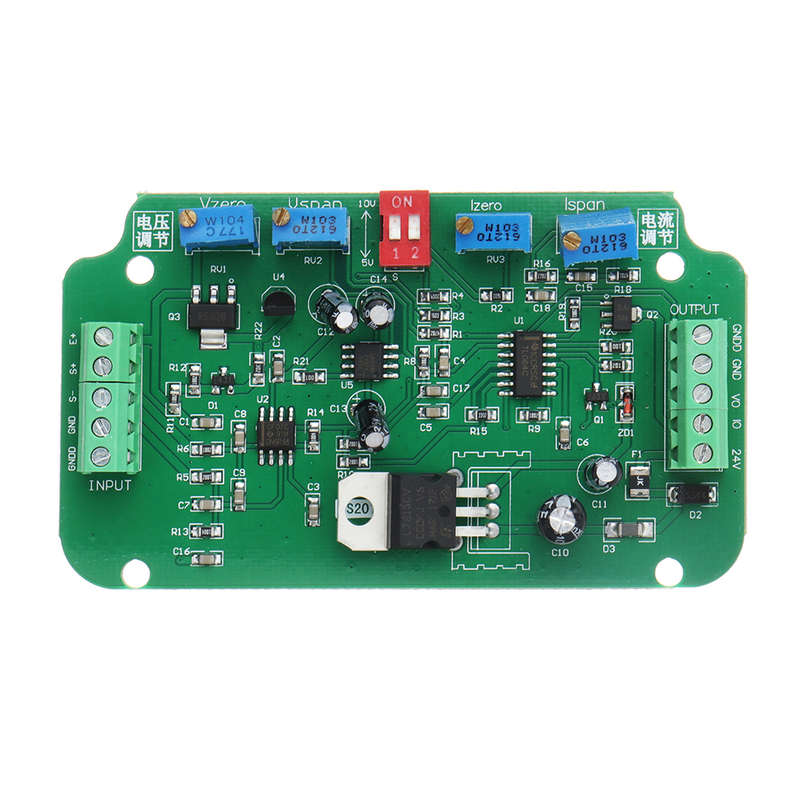

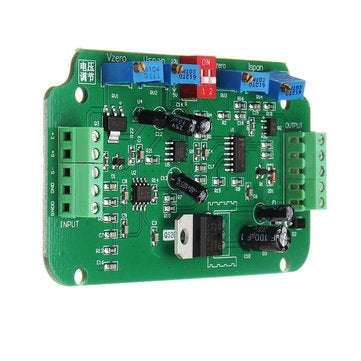

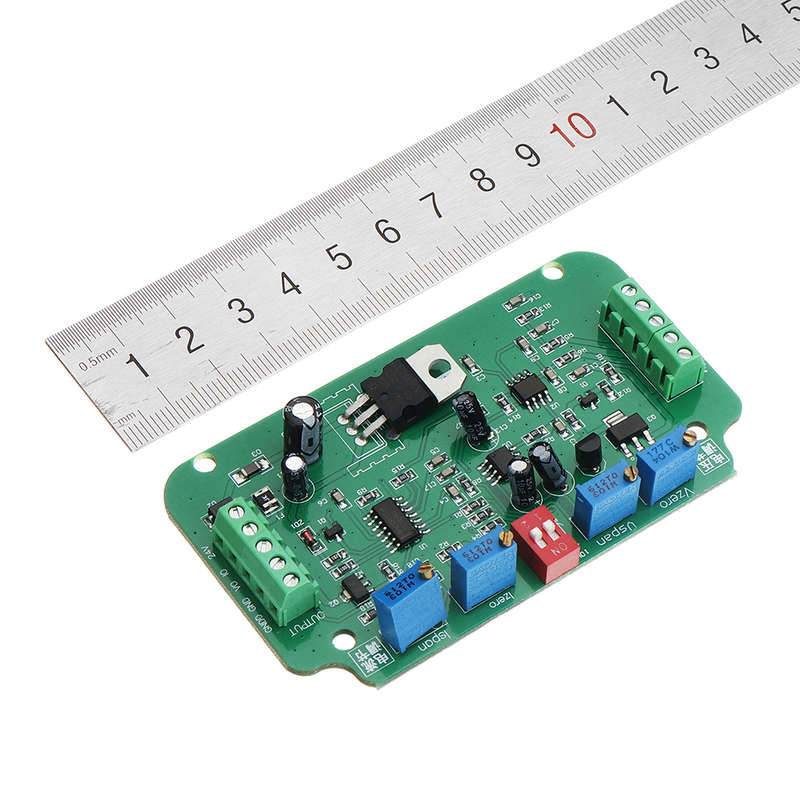

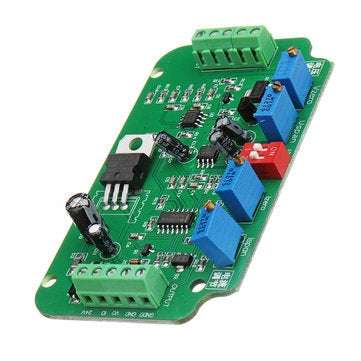

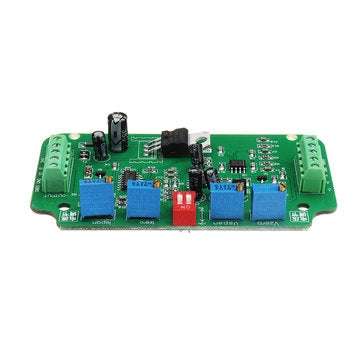

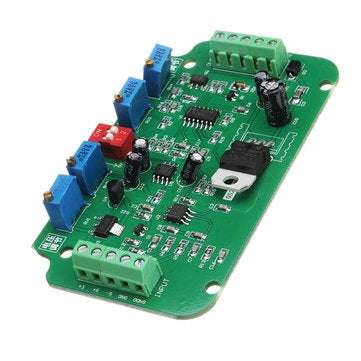

DC 12V To 24V 4-20MA Load Cell Sensor Amplifier Weighing Transmitter Voltage Current Converter

Features:

Ultra- high-precision op amp circuit, high accuracy, good stability
The power supply has reverse polarity protection, surge protection, overcurrent protection
Suitable for weighing, pull pressure, torque, and other strain sensor.

Technical Parameters:

Working voltage: DC 12-24V
Output signal: voltage (0-5V, 0-10V, 1-5V, ± 5V) 4-20ma
input signal:sensor sensitivity 2.0MV/V
output incentive:5V(E+)
Operating temperature range: -20a to 80a
Operating Humidity: 10% RH-90% RH (non-condensing)
Accuracy: better than 0.1% F.S
Precision is better than 0.05% F.S

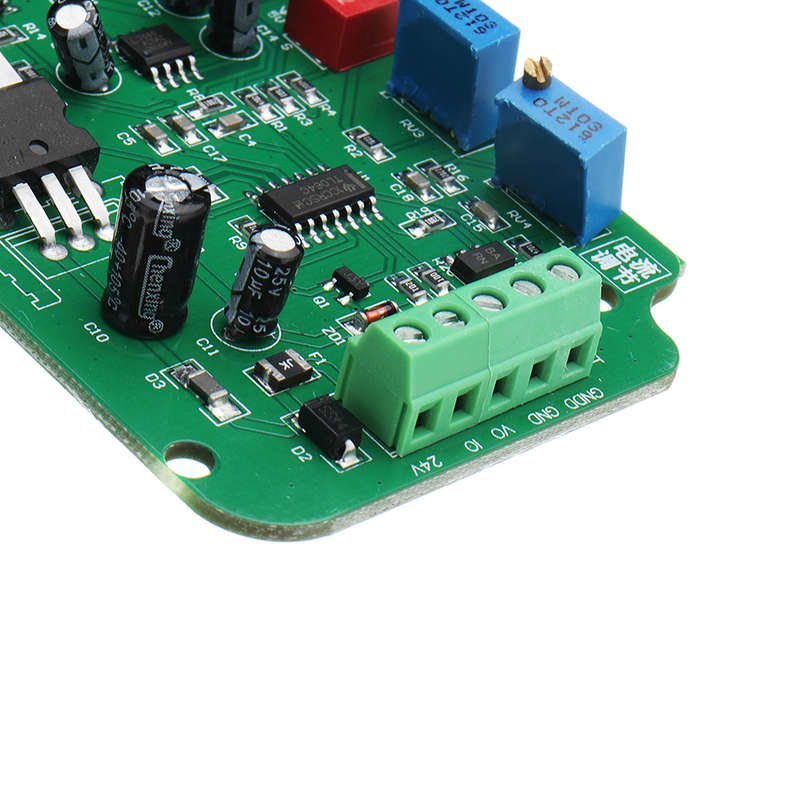

Gear selection:dial switch turn OFF , V0 output 0-5V , 1 turn to ON V0 output 0-10V
1 and 2 both turn to OFF VO output 0-5V IO output 4-20MA

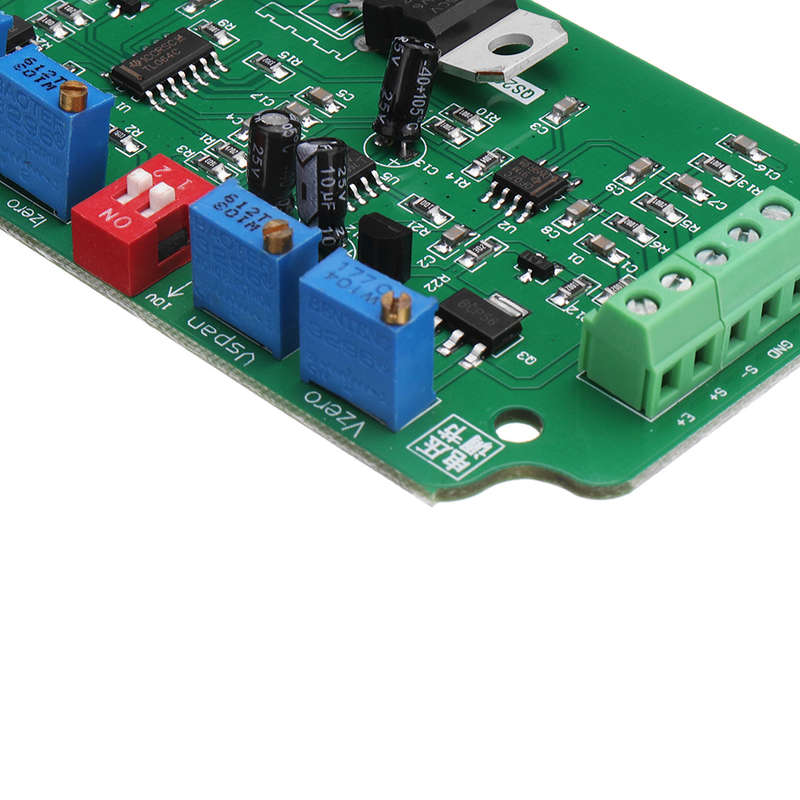

About debugging:

1. zero adjustment
First of all, make the system is in the idle state, adjust the marking ZERO potentiometer to adjust the zero offset. The multimeter is used to measure the output voltage or current, let show a value as close as possible to the zero value display. Or change the magnification zero change will become big.
2. gain adjustment
The system loading a certain weight value (the recommended range: 80% ~ 100% FS), the calculation of the output current value according to the load weight and the maximum weighting value relation, using the digital multimeter monitoring output, potentiometer to adjust amplifier gain spin labeled SPAN.
3. the retest
The system is in the idle state, measuring the zero output; loading a certain weight value, output voltage measurement whether fluoride expectation magnification If not, repeat steps 1, 2 adjust again.

Package Included:

1 xLoad Cell Sensor Amplifier Weighing Transmitter
