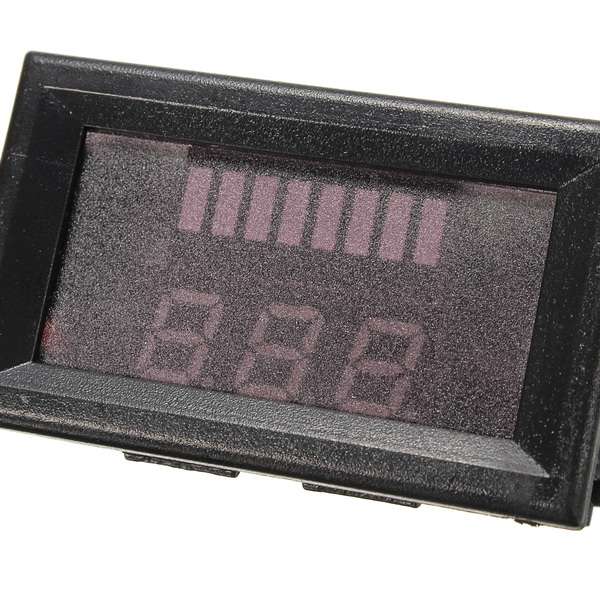

Description: Digital display shows voltage and quantity of electricity
Universal fit for various models of motorcycle, electric vehicles(6-100V), can be automatically identified, real-time display
18650 lithium polymer lithium battery, lead-acid batteries, electric vehicle batteries, nickel-hydrogen batteries and other types of electric equipment can be used
Use of digital display voltage, you can directly know the battery power and monitor the remaining battery power according to your own electric vehicle battery voltage, you can also judge whether the battery is damaged by full charge battery voltage
Battery Display Description
The following data is the set reference value, please allow error range
12V lead-acid voltage range:
The battery voltage is greater than 11.1V, brighten 1 grid power
The battery voltage is greater than 11.3V, brighten 2 grid power
The battery voltage is greater than 11.6V, brighten 3 grid power
The battery voltage is greater than 11.9V, brighten 4 grid power
The battery voltage is greater than 12.2V, brighten 5 grid power
The battery voltage is greater than 12.5V, brighten 6 grid power
The battery voltage is greater than 12.9V, brighten 7 grid power
The battery voltage is greater than 13.3V, brighten 8 grid power
The battery voltage is greater than 11.6V, brighten 3 grid power
36V lead-acid voltage range: (you can use 12 series lithium iron phosphate battery)
The battery voltage is greater than 33.2V, brighten 1 grid power
The battery voltage is greater than 33.7V, brighten 2 grid power
The battery voltage is greater than 34.2V, brighten 3 grid power
The battery voltage is greater than 34.7V, brighten 4 grid power
The battery voltage is greater than 35.9V, brighten 5 grid power
The battery voltage is greater than 36.9V, brighten 6 grid power
The battery voltage is greater than 38.1V, brighten 7 grid power
The battery voltage is greater than 39.2V, brighten 8 grid power
48V lead-acid voltage range: (you can use 15 series lithium iron phosphate battery)
The battery voltage is greater than 44V, bright 1 grid power
The battery voltage is greater than 44.6V, bright 2 grid power
The battery voltage is greater than 45.4V, bright 3 grid power
The battery voltage is greater than 46.3V, bright 4 grid power
The battery voltage is greater than 47.6V, bright 5 grid power
The battery voltage is greater than 48.9V, bright 6 grid power
The battery voltage is greater than 50.4V, bright 7 grid power
The battery voltage is greater than 51.9V, bright 8 grid power
Specification: Input Voltage: 12V, 36V, 48V DC
Work Current: 5-15A
Work Temperature: -10~+65a
Voltage Display Color: Red, Blue
Handlebar Diameter: About 48X29X21mm/1.9X1.1X0.8in
Installation Instruction: Red is the power of the positive line, black is the negative
Put the display board positive and negative wire terminals to connect the two-side of measured battery positive and negative, then it will shows real-time battery power
Fitmnet: Universal fit for electric scooter, motorcycle and so on
Note: 1.No English installation manual, professional installation is highly recommended
2.Please select the appropriate voltage so that power bar can match it, otherwise voltmeter can only display the voltage and power bar will not normally display
3.Positive and negative do not reverse, otherwise it wil get damage
Package Included: 1 X Voltmeter
