DC 24V Mini Lathe for Beads and Wood Working - Precision Turning and Shaping Tool

DC 24V Mini Lathe Machine for Wood Working, Bead making, DIY, Lathe (10003996)

Your browser does not support the video tag.

The DC 24V Mini Lathe is a versatile tool designed for both bead and wood working projects. With its compact size and powerful motor, it allows for precision turning and shaping of various materials. The lathe features adjustable speed control, allowing users to customize their work according to their needs. It is perfect for hobbyists and professionals alike, providing a convenient and efficient way to create intricate designs and crafts. Whether you are working on small beads or larger wood pieces, this mini lathe is the ideal companion for all your crafting needs.

Material: Aluminum Alloy and Acrylic
Power: 80-100W
Voltage: 24V DC Speed: 2000-8000 r / min,

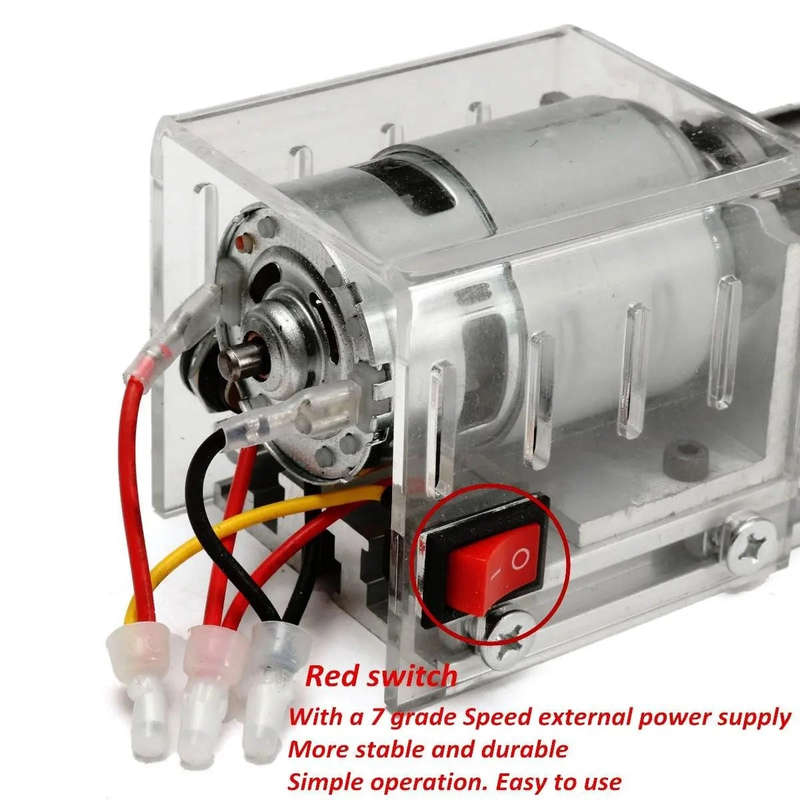

7 grade speed

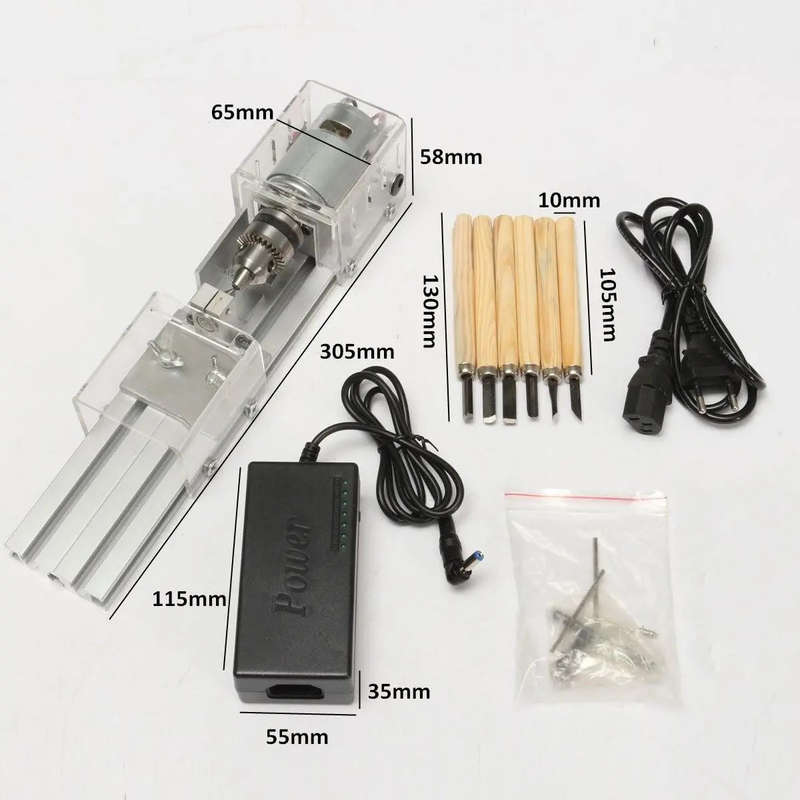

Size: 305* 58 * 65mm
The theoretical maximum turning diameter: 55mm
The theoretical maximum clamping length: 120mm
Chuck clamping range: 0.6-6mm

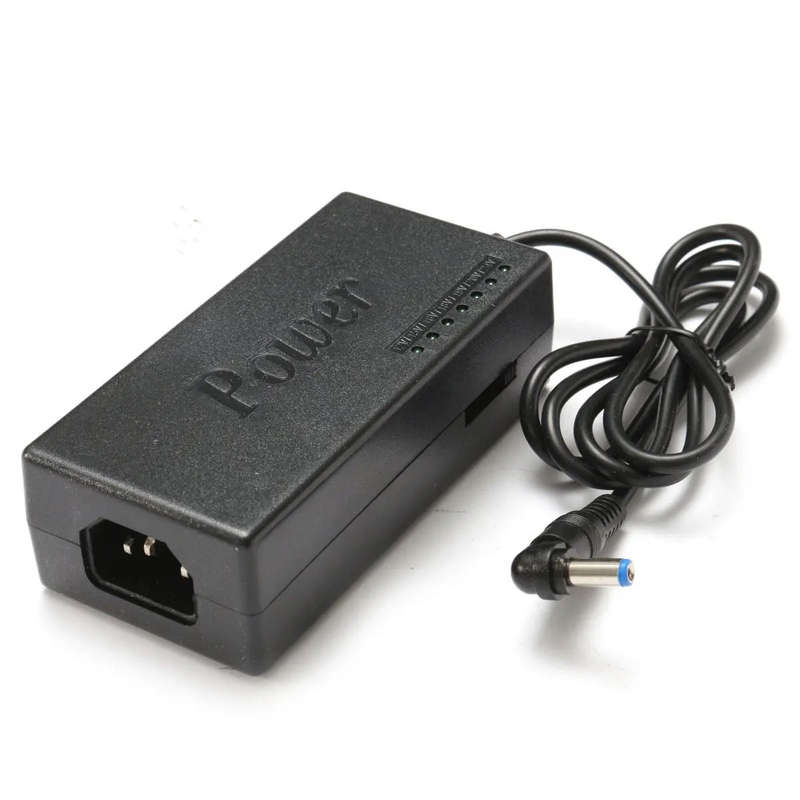

Power Adapter:
Input: AC110V- 240V~50/60Hz 1.5A max
Output: 12/15/16/18/19V 4.5A max; 20/24V 4A max
Wire length: 1.1m+1.1m

Features:
- High-precision, stability, low noise;
- Designed for the home DIY enthusiasts, small and portable, strong power;
- Transparent plexiglass shield, super convection cooling holes;
- Large torque ball bearing motor.

Precautions:
1.If the user does not have lathe base experience, when used, should follow: low speed, slowly, cautiously and other security operations.
2.The speed can be adjusted in 4000-8000R, cut wood should not exceed 4000, grinding can use higher speed.

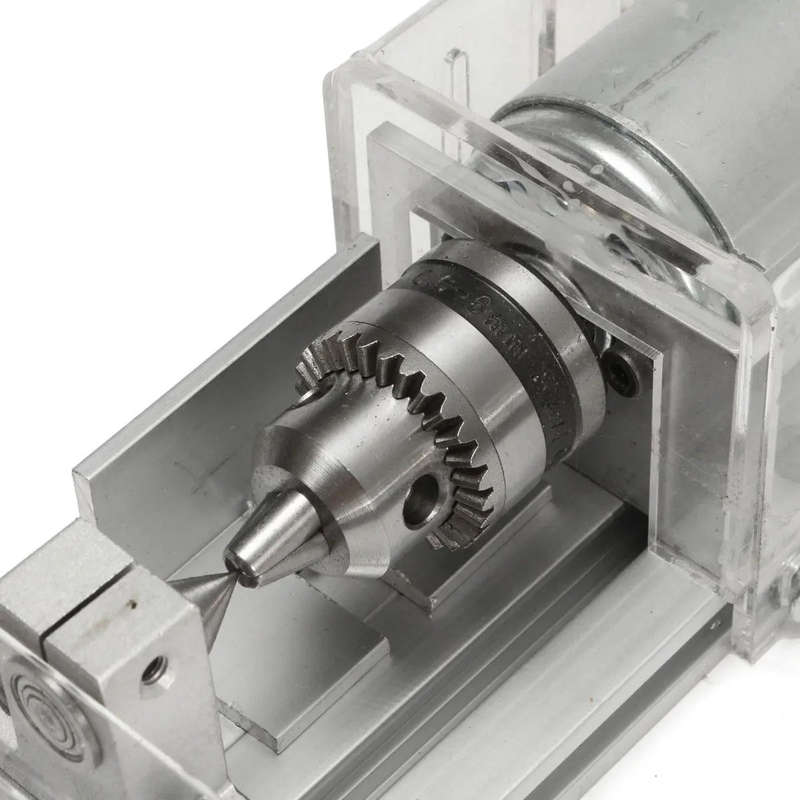

3.Drill chuck axis, the axis of the wood, the tailstock center axis of the drill should be in a straight line, or need to adjust the nut.
4.If not a cylinder, the speed should be reduced.
5.Tailstock bearing without lock tight.
6. When using a knife locking the bottom of screw, location should be away from timber 1-1.5cm.
7.If you do not really understand the operation, it is best to consult a professional person.

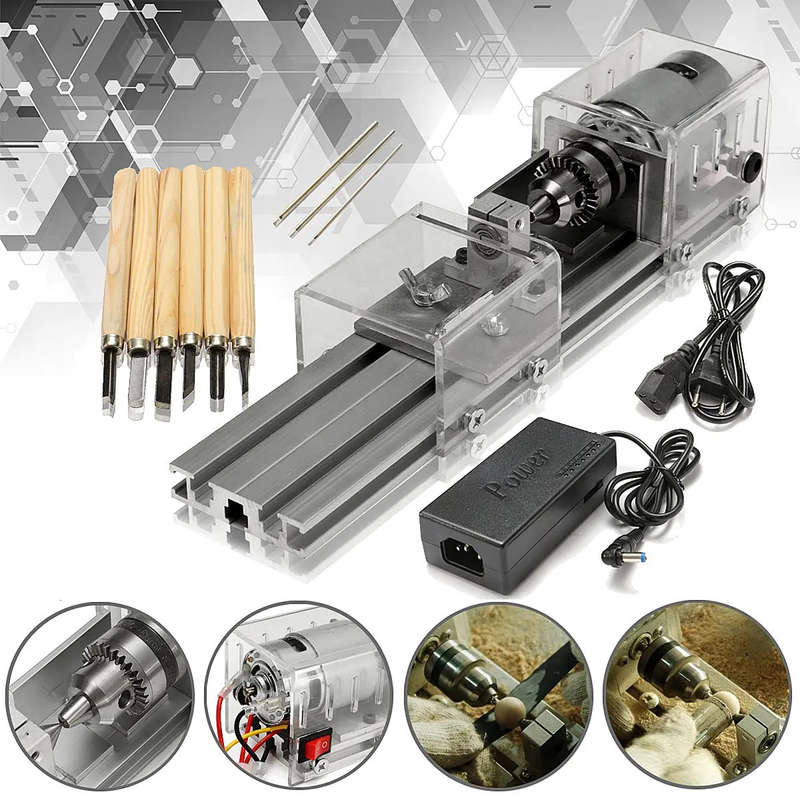

Package Contents:
1x Raitool LB-01 Mini Lathe Beads Machine (Acrylic plates not included)
1x Power Adapter

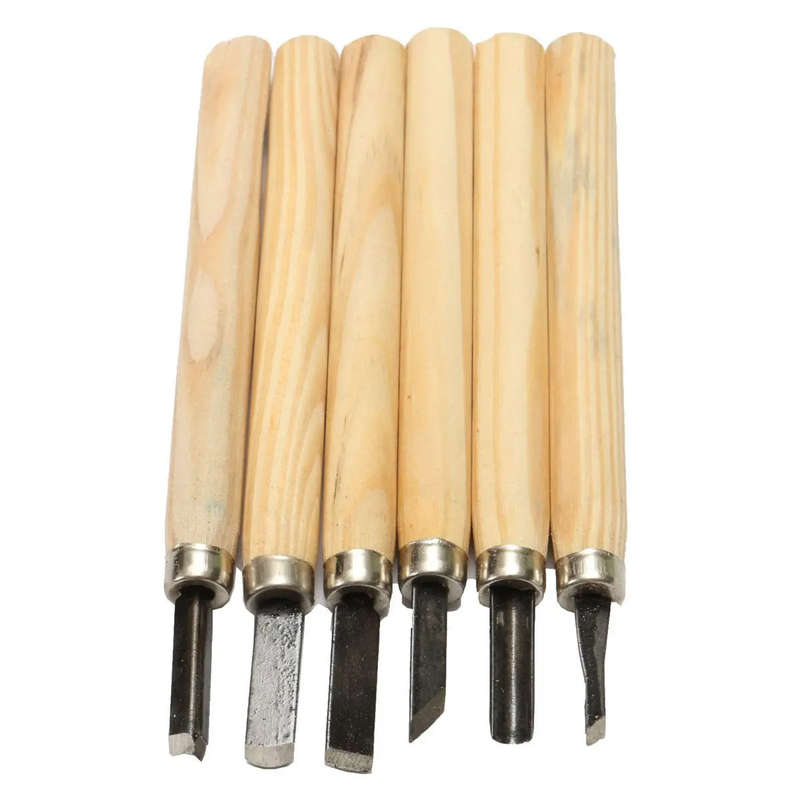

6x Wood carving set
3x Hex shanks(1.5mm,2mm,2.5mm)
