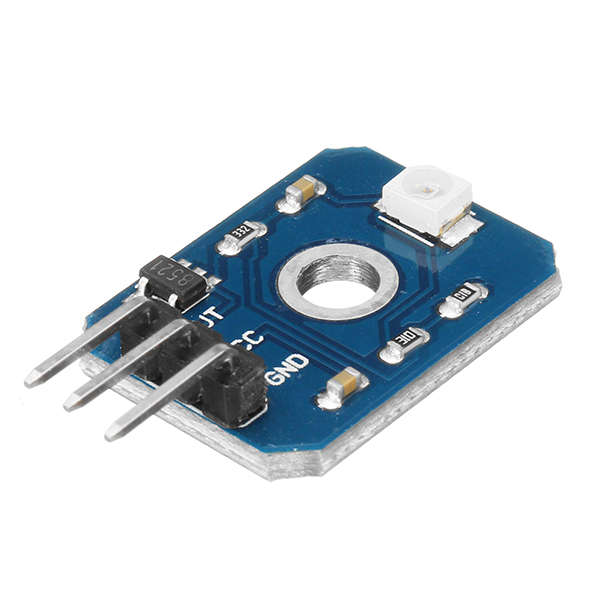

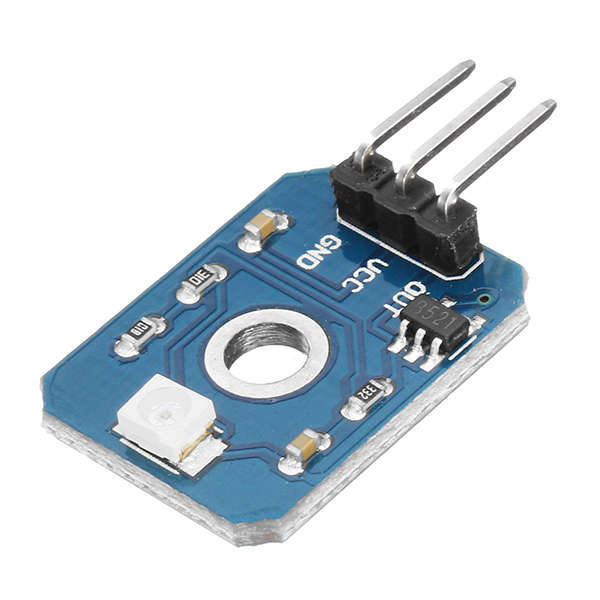

DC 3.3-5V 0.1mA UV Test Sensor Switch Module Ultraviolet Ray Sensor Module Test UV Wavelength 200-37

Description:
1.Operating voltage: DC 3.3-5V 2.Output voltage: DC 0-1V 3.Test accuracy: ±1UV INDEX 4.Current: 0.06mA (typ), 0.1mA (max) 5.Response wavelength: 200nm-370nm
6. Response time: less than 0.5 seconds
7.Work temperature: -20a ~85a 8. Test UV wavelength: 200-370nm 9.Size:19.80 x 15mm

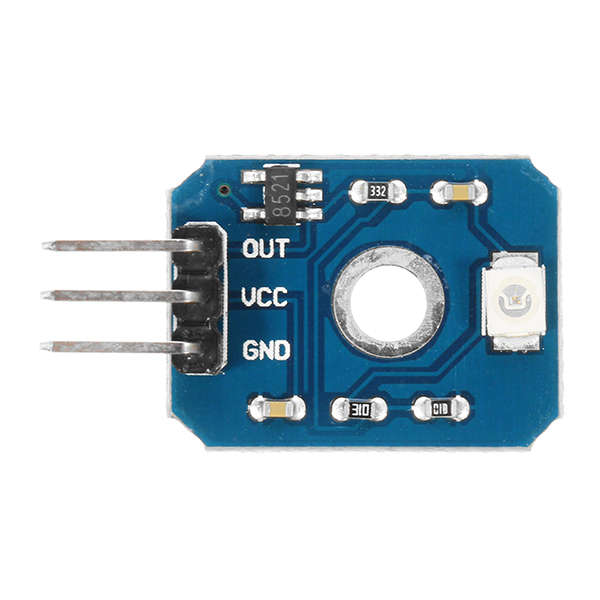

Connection mode:

VCC- is the positive input port of power supply, access 3.3V-5V voltage
GND-GND is the negative input port of power supply
OUT-OUT is the output port of analog signal, connected to I / O port of MCU

Note: The player should set the I/O port of MCU as input mode / receive mode, otherwise it can not be used. Other MCU, or more advanced control panel such as Arm, which need to set the I/O port as the input and output mode, must be set to input mode / receive mode, otherwise it can not be used. 51 series can be used directly, no need to set the input and output mode.

Overview:

Designed for applications where high reliability and accuracy of the UV index (UVI) are required;
Suitable for measuring the total amount of solar ultraviolet light intensity;
Contrast the World Health Organization UV Index grading standards
The test wavelength of UV was 200-370nm;
Quickly response, full interchangeability;

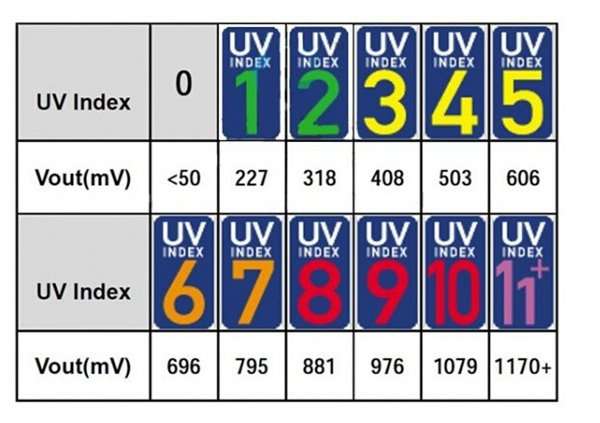

UV index chart:

Package included:

1 x UV test sensor module



, , , ,
