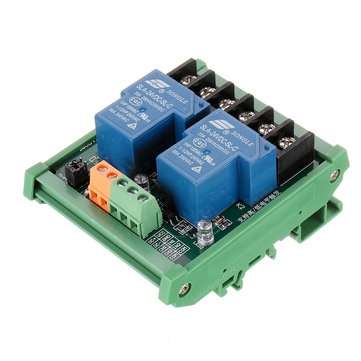

DC 5V 12V 24V 2 Channel 30A High And Low Level Trigger Relay Module PLC Automatic ... (VOLTAGE: 24V)

SELECTED OPTION:
VOLTAGE: 24V

Features: - Using double-sided FR-4PCB board - Using high-power relay, control the load up to 30A - With each optocoupler isolation, anti-interference ability - Black 9500 terminals, more convenient for high-current wiring - Each circuit has a relay on LED indication - The modules comply with international safety standards with isolation slots in the control and load areas Applications: PLC automation equipment control, industrial system control, internet of things control, home intelligent control, electronic hobbyist development experiment, all kinds of circuit modification Specifications: Supply voltage: 5V / 12V / 24V Quiescent current: 5mA Maximum operating current: 190mA / 80mA / 50mA Trigger mode: low trigger, high trigger Load voltage: DC 30V or AC 250V Load current: 30A Relay life: more than 100,000 times Product weight: about 200G Size: 70 x 72 x 22 mm Trigger Voltage Range: 5V low trigger module: 0-2VDC relay on (ON), 3-5VDC relay off (OFF) 12V low trigger module: 0-5VDC relay on (ON), 6-12VDC relay off (OFF) 24V low trigger module: 0-12VDC relay is ON, 13-24VDC relay is OFF. 5V high trigger module, 3.3-5VDC relay (ON), 0-2.5VDC relay off (OFF) 12V high trigger module: 6-12VDC relay (ON), 0-5.5VDC relay off (OFF) 24V high trigger module: 12-24VDC relay (ON), 0-8.5VDC relay off (OFF) Package Included: 1 x 5V/ 12V/ 24V 2 Channel 30A High And Low Level Trigger Relay Module
