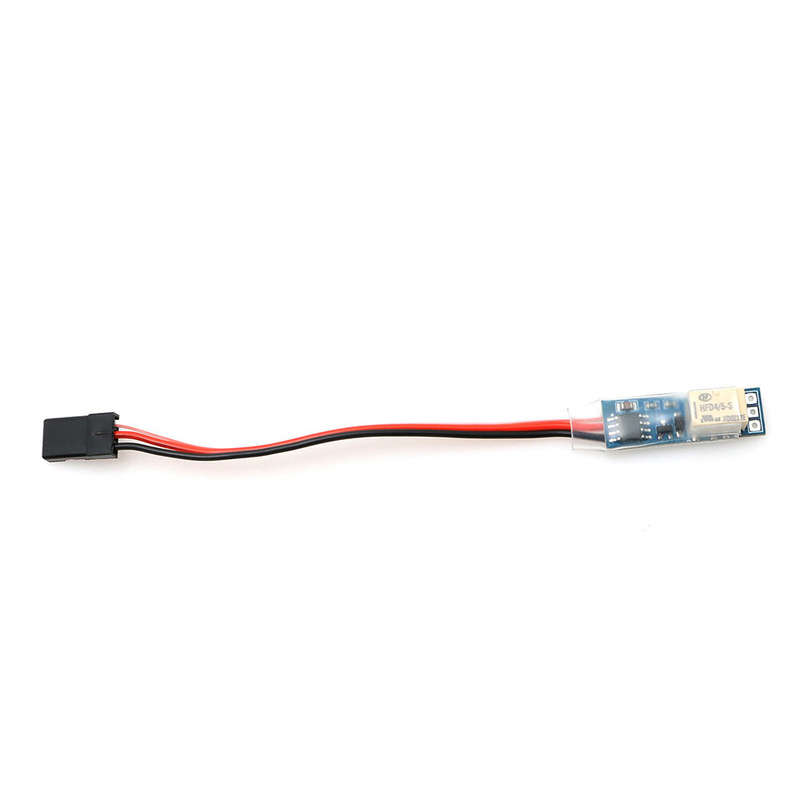

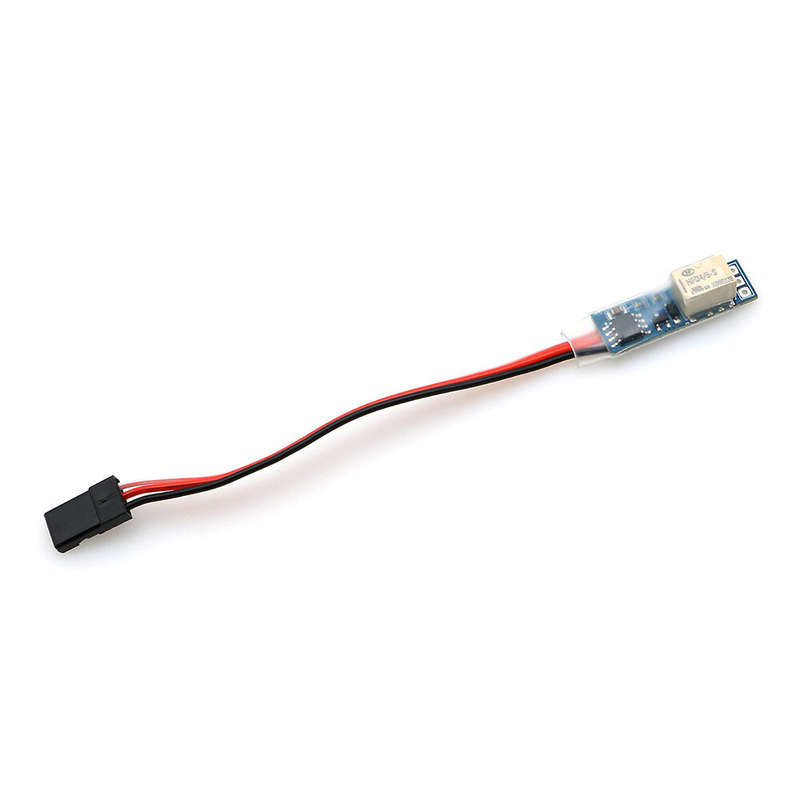

DC 5V PWM Signal Controller Remote Control Mini Relay Model Switch Universal Electronic Switch for FPV RC Drone Airplane Model Accessories DIY
This product is PWM controlled relay switch, different from the field effect tube, it is directly established physical line connection, so can adapt to higher DC voltage, but also can connect to AC.
Description:
Item: PWM Relay Switch

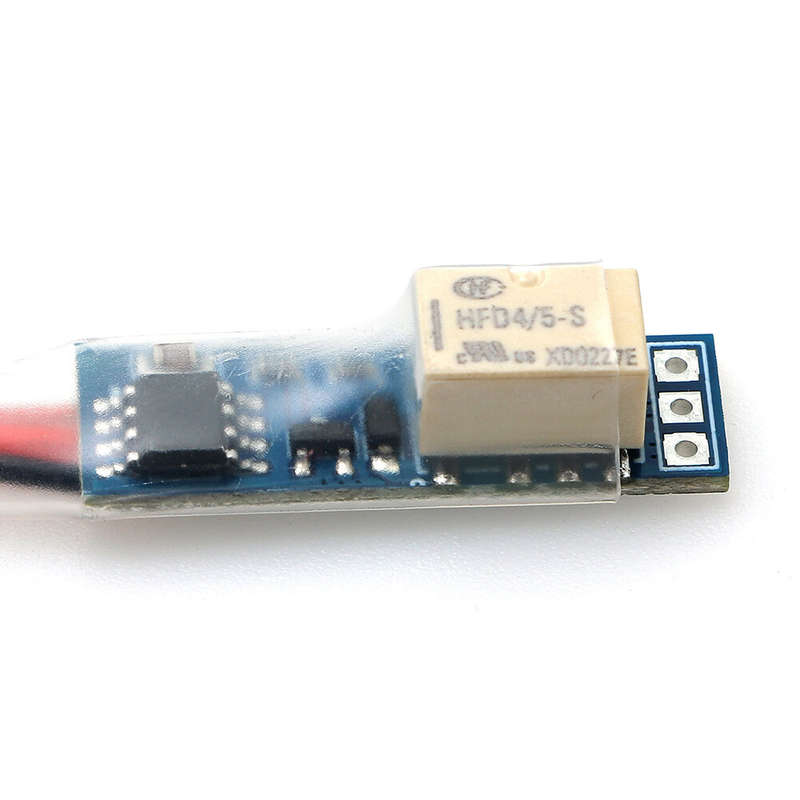

Motherboard size: length width height 29 x 9 x 8 mmWhite Relay size only: 10 x 6.5 x 5.4 (mm)The power consumption of the relay coil is about 140mWColor: As ShownMaterial: composite material
Control Terminal:- Input voltage 5v (connect receiver).
- PWM control: When high (>1700us), the normally open terminal and the common terminal are connected.
(at the same time, the normally closed terminal and the common terminal ar
