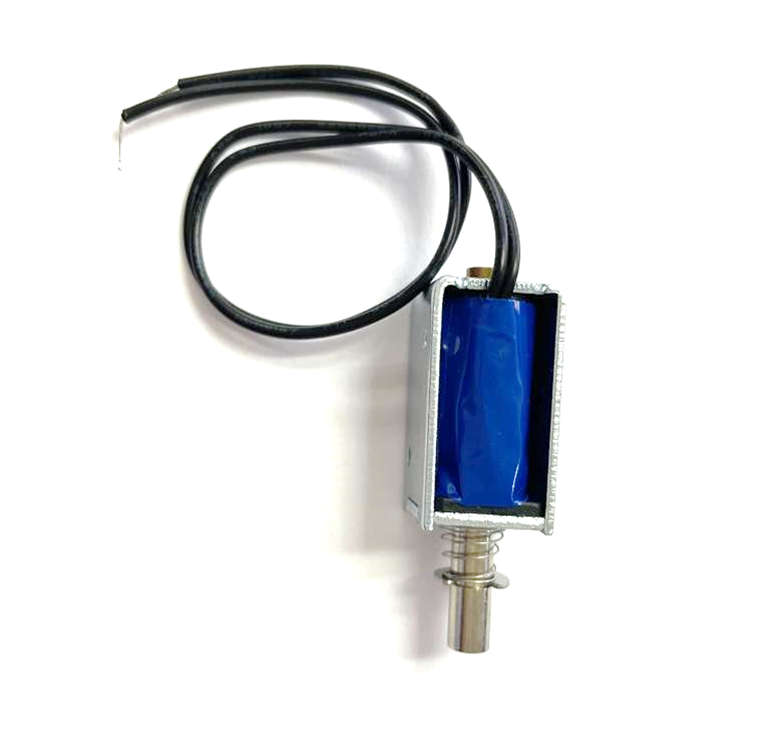

Model: JF-0530B
Rated voltage: DC5v
Rated current: 0.7A REF
Mass resistance: 7.1
Withstand voltage: AC500V/0.5mA, 1 minute or AC600V/0.5mA, 1 second
Attraction: Connect DC5V power supply, stroke 3mm, attractive force above 40 gf. (Initial value)
The highest temperature rise: the coil surface temperature is below 80 C (energization frequency 50%)
Lifetime: 200,000 times or more under normal use. (Power-on frequency 50%)
