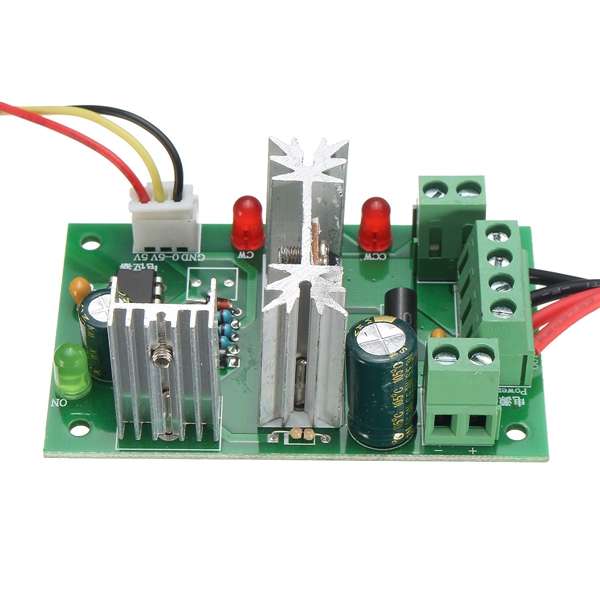

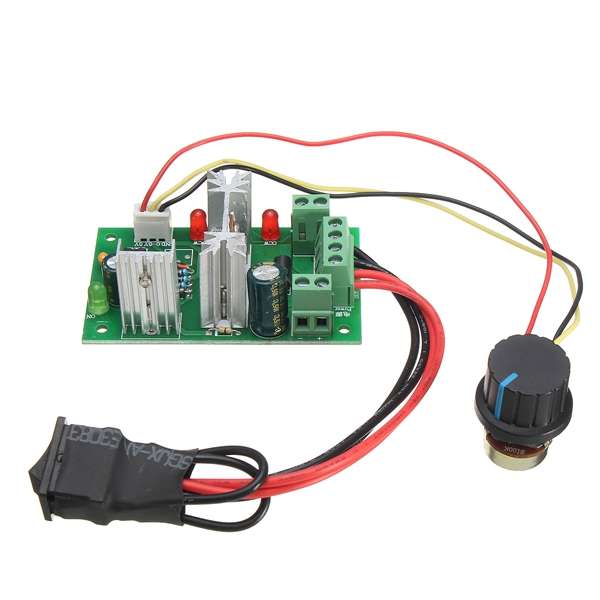

DC 6-30V 200W 16KHz PWM Motor Speed Controller Regulator Reversible Control Forward / Reverse Switch

Specifications:

Input Voltage: DC 6V-30V
Output Voltage: Linear with load
Output Current: 6A-10A
Power: Max. 200W
Speed Range: 0% to 100%
Regulation Method: Potentiometer
Regulation Type: Regulating Current
Control Frequency: 16KHz
Wiring Type: Screw terminal

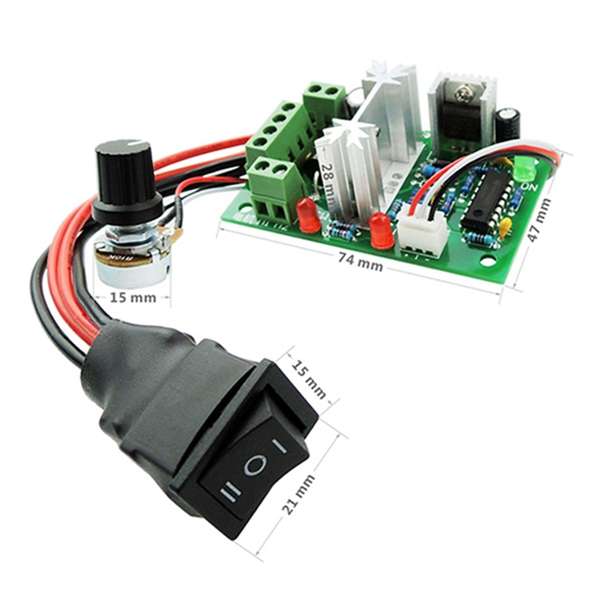

Size: Approx. 74 x 47 x 28mm / 2.91 x 1.85 x 1.10''
Rotary Knob Wire Length: 20cm / 7.87''

Features:

High efficiency, high torque, low heat generating
Control the speed of a DC motor with this controller
With reverse polarity protection, high current protection
With potentiometer
With reversible switch
Speed controller is made with high quality circuit board which ensures a longer service life
This simple and easy-to-use DC motor speed controller has an stable performance
The output current of this motor speed controller can be adjusted from 6A to 10A, and it is simple to set
Designed with a digital display that shows the rate in percent of actual speed to maximum speed
This motor speed controller uses screw terminals for convenient and quick wiring

Package included:

1 x PWM DC motor speed controller




, , ,
