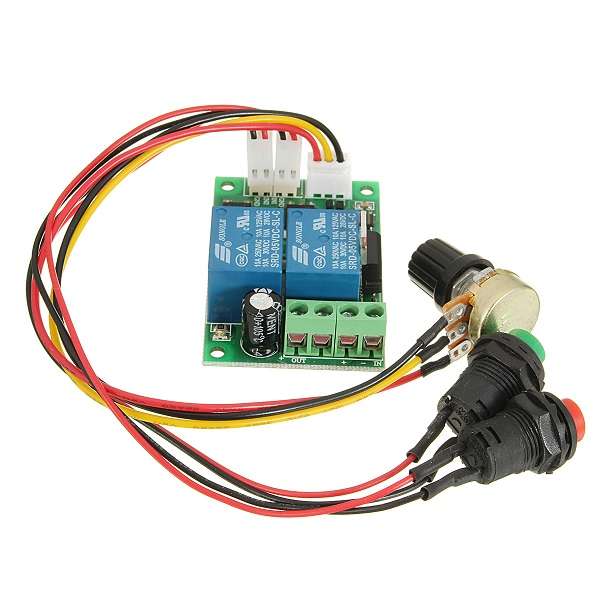

DC 6/9/12/24V 3A PWM Motor Speed Controller Forward Backward Reversible Switch DC 6/9/12/24V 3A PWM Motor Speed Controller Forward Backward Reversible Switch DC 6/9/12/24V 3A PWM Motor Speed Controller Forward Backward Reversible Switch
DC 6/9/12/24V 3A PWM Motor Speed Controller Forward Backward Reversible Switch DC 6/9/12/24V 3A PWM Motor Speed Controller Forward Backward Reversible Switch DC 6/9/12/24V 3A PWM Motor Speed Controller Forward Backward Reversible Switch

DC 6/9/12/24V 3A PWM Motor Speed Controller Forward Backward Reversible Switch

20 available / new
R438.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
641121184
Description:

Material: Circuit Board+Electronic Components
Color: Multi Colors
Input supply voltage: 6V-24VDC
The maximum continuous output current: 3A
Duty Cycle adjustable: 0%-100%
Wire Length: 20cm/7.87(appr.)

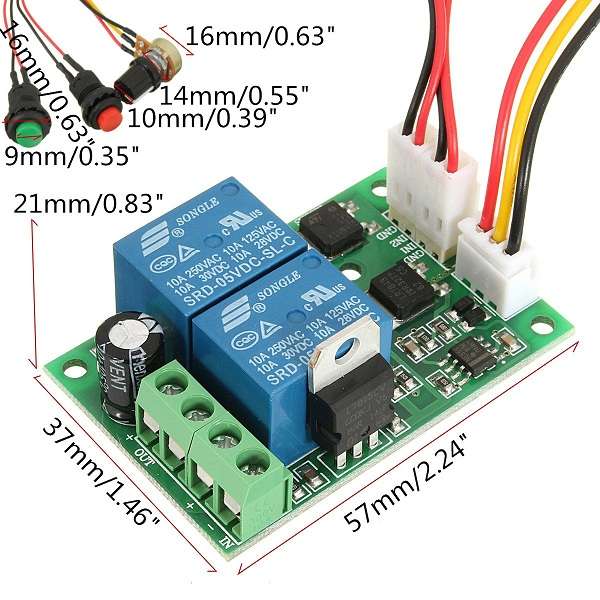

Size: (L)X(W)X(H) 57X37X21mm/2.24X1.46X0.83(appr.)

Features:

Enable to provide a continuous current of 3A to your DC motor or other DC load.

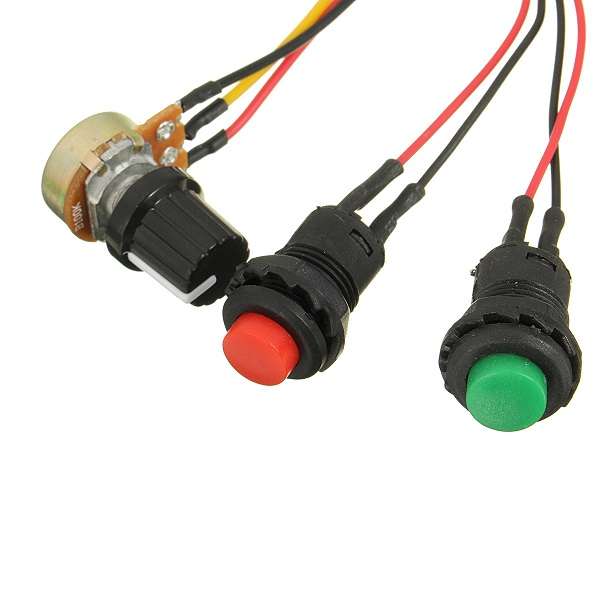

Control the forward or reverse direction and the stop of DC motor by button switch.
Press the red button, the motor reverses rotates; and release the button, the motor stops.
Press the green button, the motor clockwise rotates; and release the button, the motor stops.

Operating instruction:

Before you attempting to wire the controller, make sure power is off.
1. Connect wires refer to the wiring diagram.
2. Turn on the power, and adjust the potentiometer.
3. The LED indicates the power up and the speed of motor.
4. Control the forward or reverse direction of DC motor by button switches.

Note:

Do not reverse postive and negative power loads.This will damage the controller.

Package included:

1 x Motor Speed Controller
