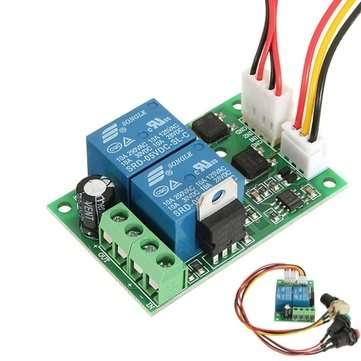

DC 6/9/12/24V 3A PWM Motor Speed Controller Forward Backward Reversible Switch

20 available / new

R438.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3508

93.41 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

643377149

Description:

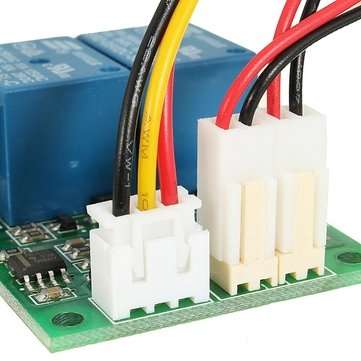

Material: Circuit Board+Electronic Components
Color: Multi Colors
Input supply voltage: 6V-24VDC
The maximum continuous output current: 3A
Duty Cycle adjustable: 0%-100%
Wire Length: 20cm/7.87(appr.)
Size: (L)X(W)X(H) 57X37X21mm/2.24X1.46X0.83(appr.)

Features:

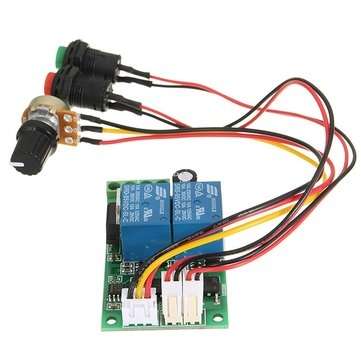

Enable to provide a continuous current of 3A to your DC motor or other DC load.
Control the forward or reverse direction and the stop of DC motor by button switch.
Press the red button, the motor reverses rotates; and release the button, the motor stops.
Press the green button, the motor clockwise rotates; and release the button, the motor stops.

Operating instruction:

Before you attempting to wire the controller, make sure power is off.
1. Connect wires refer to the wiring diagram.
2. Turn on the power, and adjust the potentiometer.
3. The LED indicates the power up and the speed of motor.
4. Control the forward or reverse direction of DC motor by button switches.

Note:

Do not reverse postive and negative power loads.This will damage the controller.

Package included:

1 x Motor Speed Controller
