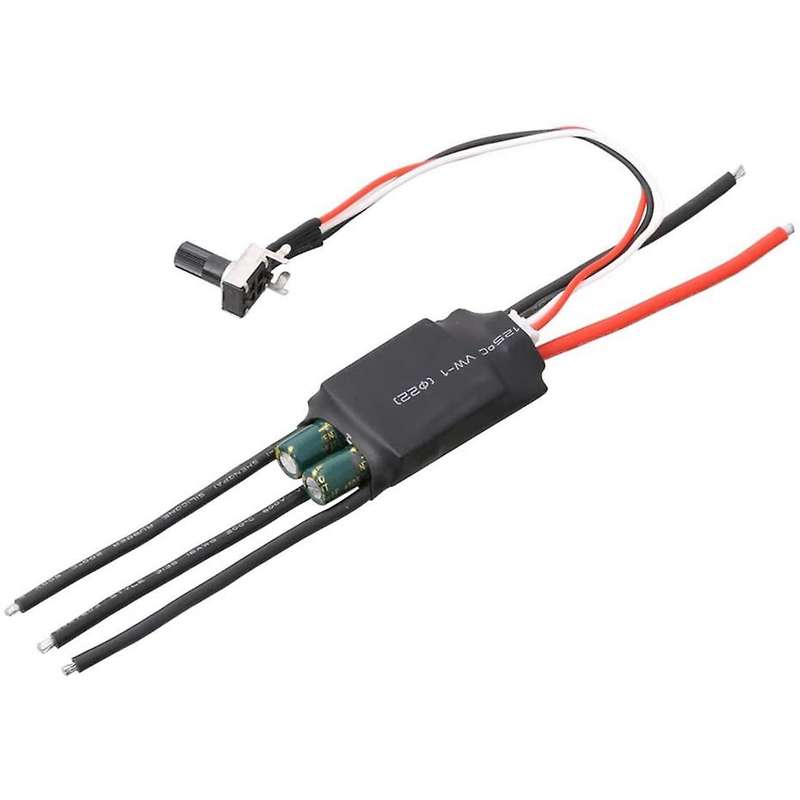

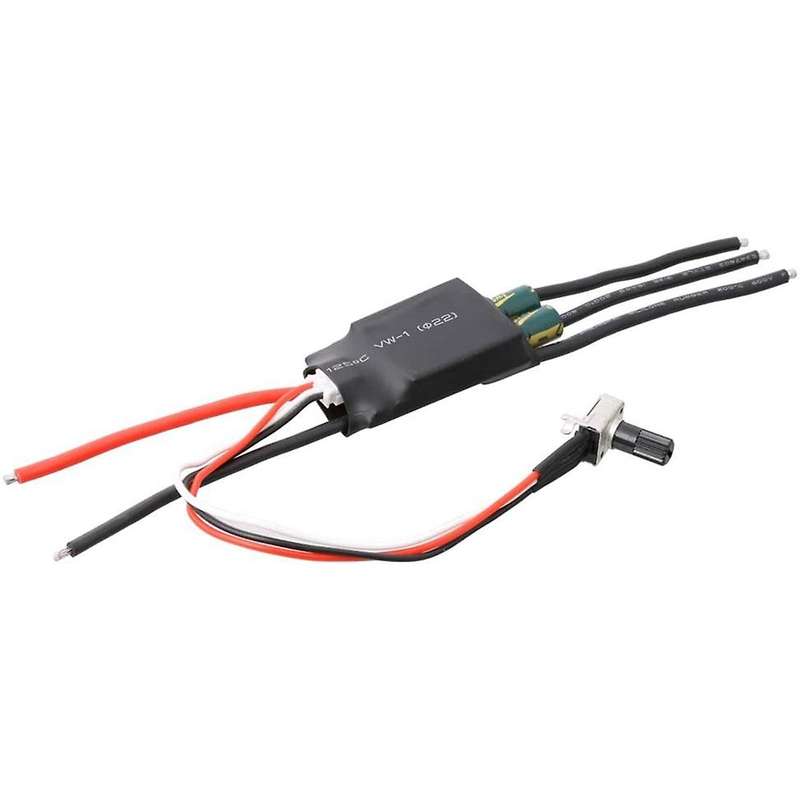

Dc 7-24v 200w Bldc 3 Phase Brushless Motor Driver Board

BLDC wide voltage 7-24V high-power small-volume potentiometer speed control Brushless and Hallless controller, single-button version supports single-button free switching acceleration and deceleration with power-off memory function potentiometer speed control version supports PLC 0-5V simulation Signal speed.Instructions for use of potentiometer models:The standard power distribution positioner directly regulates the speed without external control signals. It increases clockwise and decreases counterclockwise.It is also suitable for external PLC 0-5 analog quantity control. Unplug the potentiometer cable, the external 0-5 analog quantity control signal and ground wire are respectively connected to the input signal terminal of the brushless driver board, as long as two wires are OK.Interface Description:1. U V W phase line output is connected to the motor2. VCC GND main power supply (external DC power supply)Product parameters:Product name: Potentiometer three-phase DC brushless and Hallless driveModel: X30A (potentiometer)Working voltage: 7-24VDrive current: rated 15A plus fan cooling 20AMaximum speed: 224000 RPM (2 pole motor), 74000 RPM (6 pole motor), 40000 RPM (12 pole motor), 35000 RPM (14 pole motor).Product size: length 45MM x width 26MM x height 12MM (excluding wires and protruding capacitors)Colour: as shownMaterial: Plastic+metalPackage Contents:1 * DC 7-24V 200W BLDC 3-Phase Brushless Motor DriverOnly the above package content, other products are not included.Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
