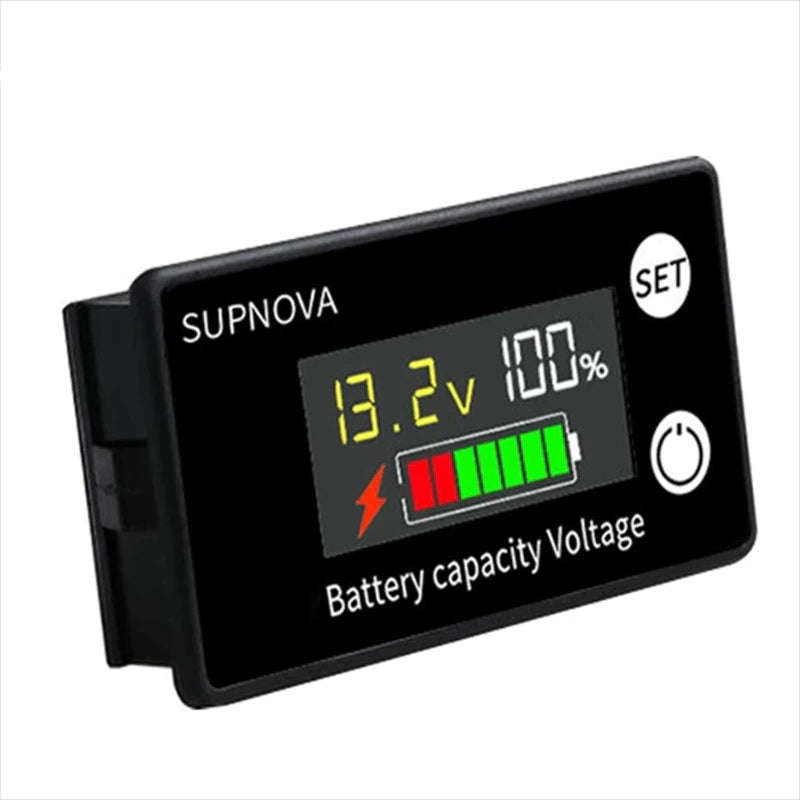

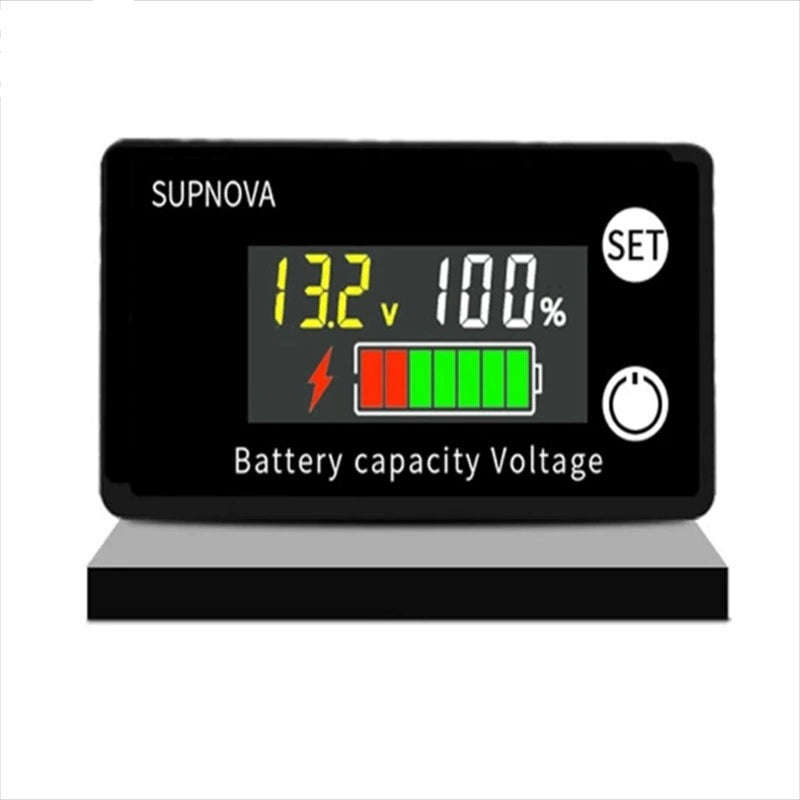

DC 8v to 100v Battery Volt/Capacity/Power Meter

Parameter: Voltage measurement range: DC8V-100V Working current: <15MA Display mode: LCD Screen display color: color screen Measurement accuracy: 1% ± 1 word Measurement speed: about twice per second Working temperature: -10+70°C Working humidity: 10-80% Working pressure: 80-106Kpa Sun exposure: no direct exposure Installation size: 58mm*28mm Dimensions: 61mm*33mm*15mm (length*width*height)   Features: 2 in 1 function: measure and display battery capacity and voltage. Dual display: capacity and voltage can be displayed at the same time, clear and easy to read. LCD Display: Large LCD screen with backlight for easy reading. Wide Operating Voltage Range: This battery monitor can withstand a wide operating voltage range from capacity, voltage to voltage (DC 7-68V) Suitable battery type: The battery detector is suitable for lithium batteries, lead acid batteries. Premium Quality: Made of high quality ABS material, durable. Easy to install: Easy and quick to install. Safe to use: Simple connection with reverse protection Set mode selection parameters -Mode description one Press and hold the upper right button for 2 seconds on the main page to enter the mode setting page, and then press and hold the upper right button for 2 seconds to exit the setting page and return to the main page. Mode 1--Lead acid P setting; Mode 2--Lithium Ternary L setting; Mode 3--Lithium iron F setting; Mode 4---custom high and low voltage setting: customize low voltage and saturation voltage, the Display 00.0 000, the left number is the low voltage parameter, the right The number on the left is the low voltage parameter, and the number on the right is the saturation voltage parameter; Package list: Line + Voltmeter
