SELECTED OPTION:
CURRENT: 3A

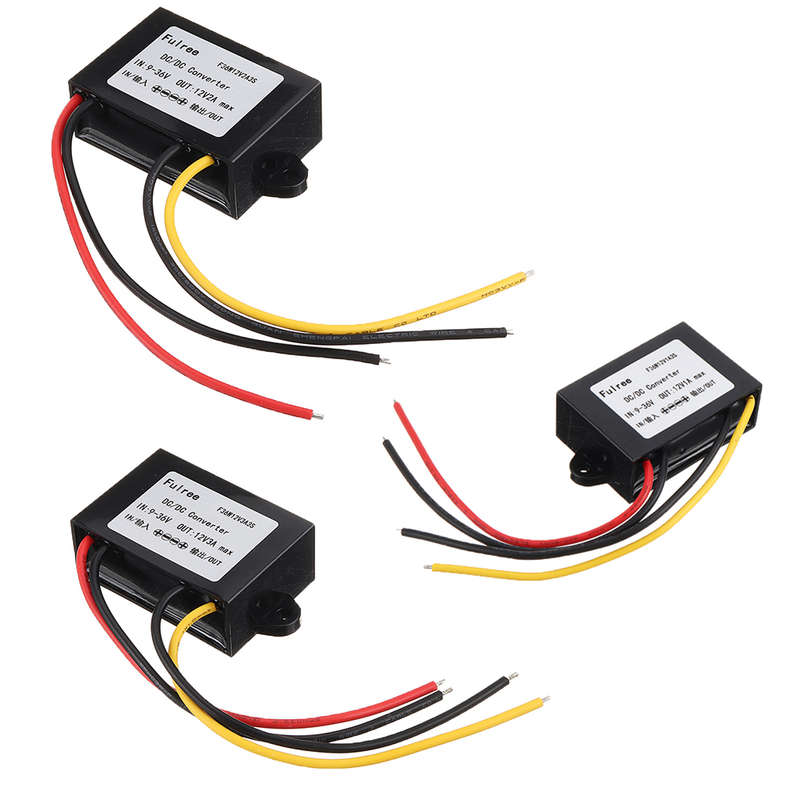

Product Name | 9-36V to 12V 1A/2A/3A DC Converter |
Brand Name | Fulree |
Model No. | FJ60D12C1/FJ60D12C2/FJ60D12C3 |
Module Properties | non-isolated buck module |
Rectification | synchronous rectification |
Input (cable length: 12cm) | |
Input Voltage | 36V |
InputVoltage Range | DC 9-36V |
Output(cable length: 12cm) | |
Output Voltage | DC 12V |
Output Current | 1A/2A/3A Max |
Output Power | 12W/24W/36W Max |
Conversion Efficiency | >93% |
Voltage regulation | ±1% |
Load regulation | ± 2% |
Ripple (Full load test) | < 150mV |
No-loadcurrent | <100mA |
Working Temperature | -40~80a( If ambient temperature exceeds 40ᆪc, lower power use, or to enhance heat dissipation) |
Waterproof Rating | IP68 |
Protection | Over-current protection / Over heat protection / Short circuit protection / Waterproof IP68 design, Anti-shock protection |
Application | mobile phone, car camera, Electric motors, Trucks, Golf Carts, Forklift, Solar Panel Power System, water pumps, industrial equipment and so on. |
Case Material | ABSPlastic |
Product Size (L x W x H) | 46*27*14mm |
Product Weight | 30g |
Warranty | 12 months |
Cooling Way | Free air convection |
OEM Service | Acceptable |
