DC Blue Advanced Pico 3.2m kit

This will only be ordered on special orders!!

DC Blue Advanced PICO 3.2M Sectional kit - 3.2m Rails, Collection only
Generally used for light aluminum garage doors

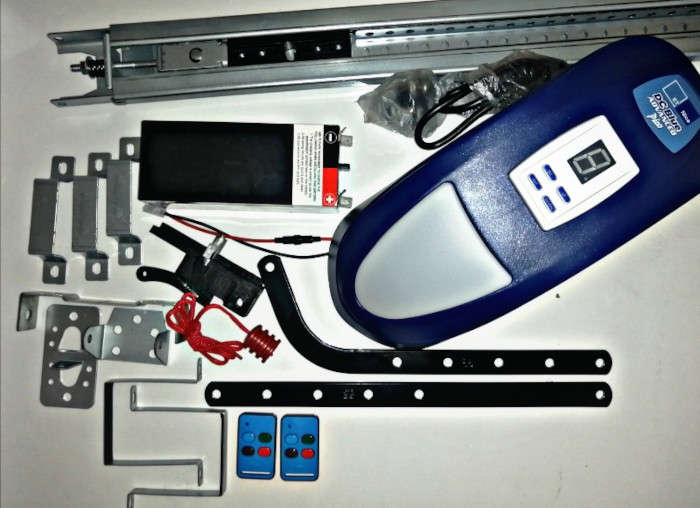

Kit includes:
1 x DC Blue Advanced Pico motor
2 x ET 4 button remote controls
1 x 24V Battery
1 x 3.2 Meter track with chain

Input voltage: 220-240 Vac, 50Hz-60Hz
Electric motor supply: 24Vdc. Not battery dependent
Maximum duty cycle with mains present: 50 full cycles per 24h @ max rate of 5 per hour
Number of operations on battery reserve without AC present: 100 within 24 hours (From a fully charged and healthy 3.5Ah battery)
Maximum door size: 10m²
Applicable door types: Spring balanced, Sectional overhead and 1-piece tip-up doors
Maximum running distance: 3m
Maximum pulling force prior to safety governing: 600N
Rated running load: 25kgf
Rated speed: 8m/min
Built-in receiver frequency: 433.92MHz
Built-in receiver compatible formats: ET-Blu Mix © and ET Blue
Built-in receiver memory capacity: 35 button
Built-in receiver channels: 2CH (BT, Courtesy light).
Holiday Lockout is with BT push and hold
