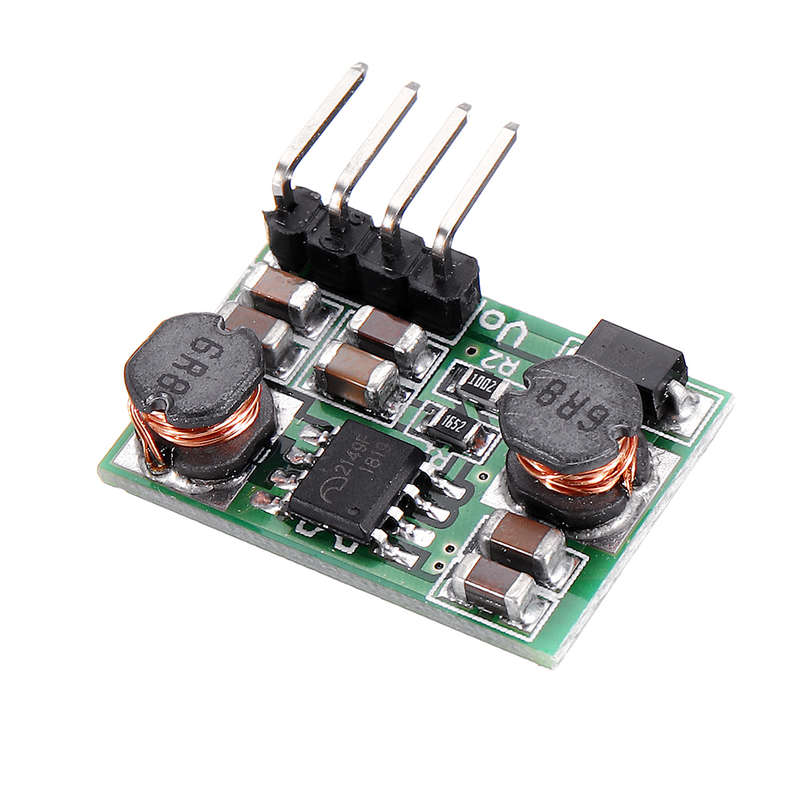

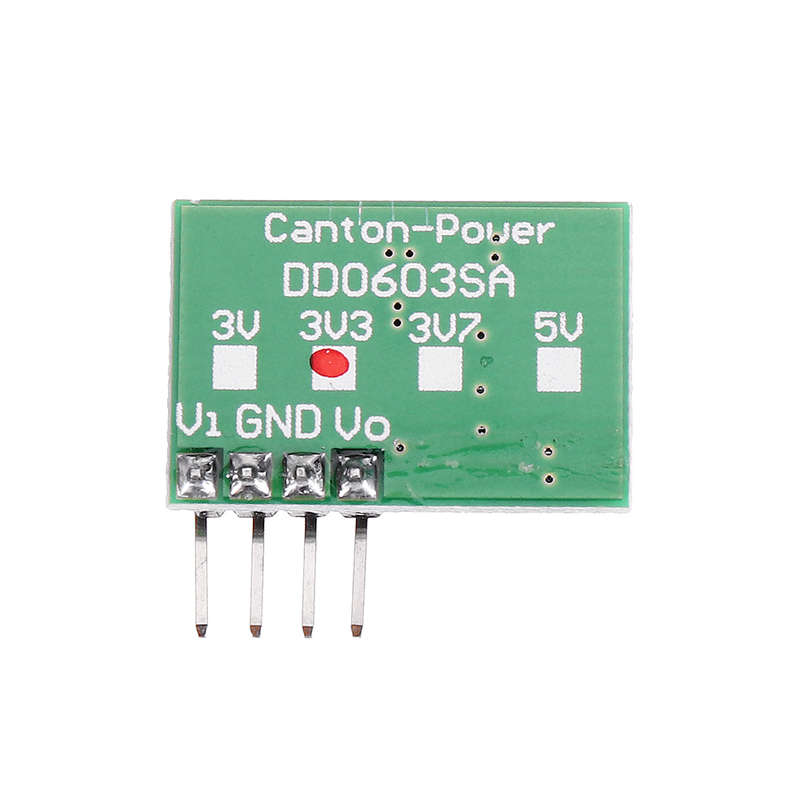

DC DC 0.9-6V to 3.3V Auto Buck Boost Step UP Step Down Converter Board Power Supply Module

20 available / new

R379.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3462

93.47 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641121215

.size_table_start table,.size_table_start table tr td { border:2px solid #ddd;}.size_table_start table { width: 100%; min-height: 25px; line-height: 25px; text-align: center; border-collapse: collapse;}.size_table_start,.size_table_end {clear:both;}

Specifications:

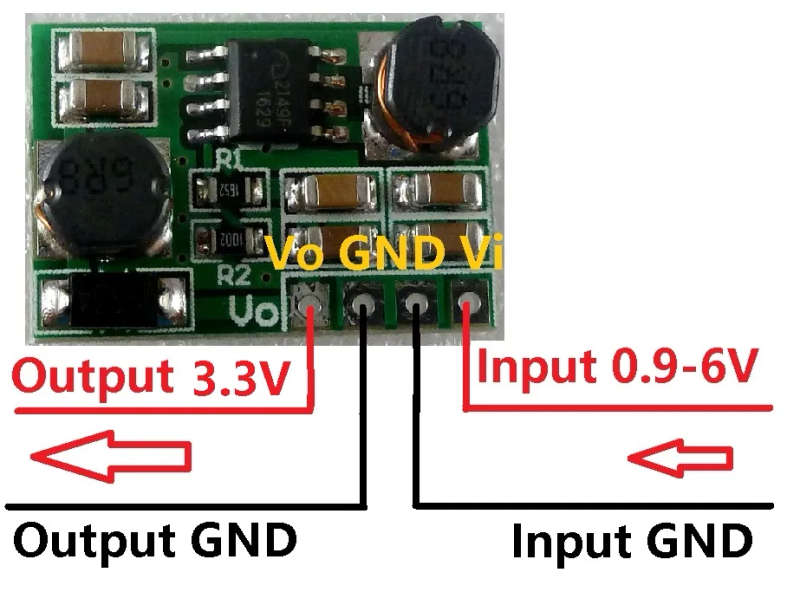

Input voltage: DC 0.9 - 6V(The maximum input voltage can not exceed 6.5V) Output voltage: DC 3.3V(&pm;5%) Working frequency: 1MHZ Efficiency: 61%-85% Operating temperature range : -25~+85 a Storage temperature range : -45~+125 a Pin pitch:2.54mm Size : 22mm x 15mm x 5.7mm Weight : 2.6g

Applications:
Battery powered equipment Breadboard Power Supply ARM FPGA CPLD MCU Development board Electrical tools Small power motors Camera, Video camera Toy car Power bank LED Lighting Wireless communication equipment Audio equipment

Attention: 1. Input voltage can not be greater than the maximum input range. 2. Output power can not be greater than the maximum load for a long time. 3. Input power must be greater than the output power, because the power consumption of the module itself.
Package Incldued:
1 x DC DC 0.9-6V to 3.3V Auto Buck Boost Board
