Parameters:

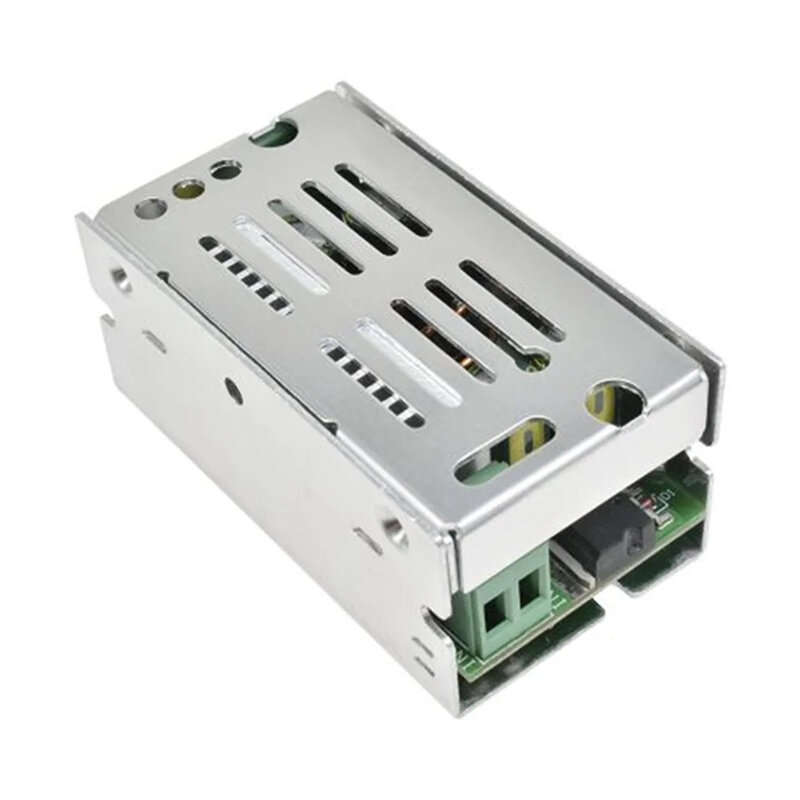

Aluminum enclosure dimensions: 70 x 38 x 31 mm / 27.5'x15'x12'
Input voltage: 8-55V (limited to 60V, please reserve)
Output voltage: 1-36V continuously adjustable (default output 12V)
Output current: normal 10A, MAX15A
Output power: natural cooling ventilation long-term power 100W
Improve the heat dissipation function of 200W
Working temperature: -10 to +85 degrees
Working frequency: 180KHz
Conversion efficiency: up to 94%
If working for a long time, please pay attention to the left edge and make it hot.
Features:
1. Made of high quality material, long-lasting and practical.
2. Small size, simple application and convenient operation.
3. Overvoltage, short circuit, overcurrent, reverse polarity protection.
4. Wide range of applications.
