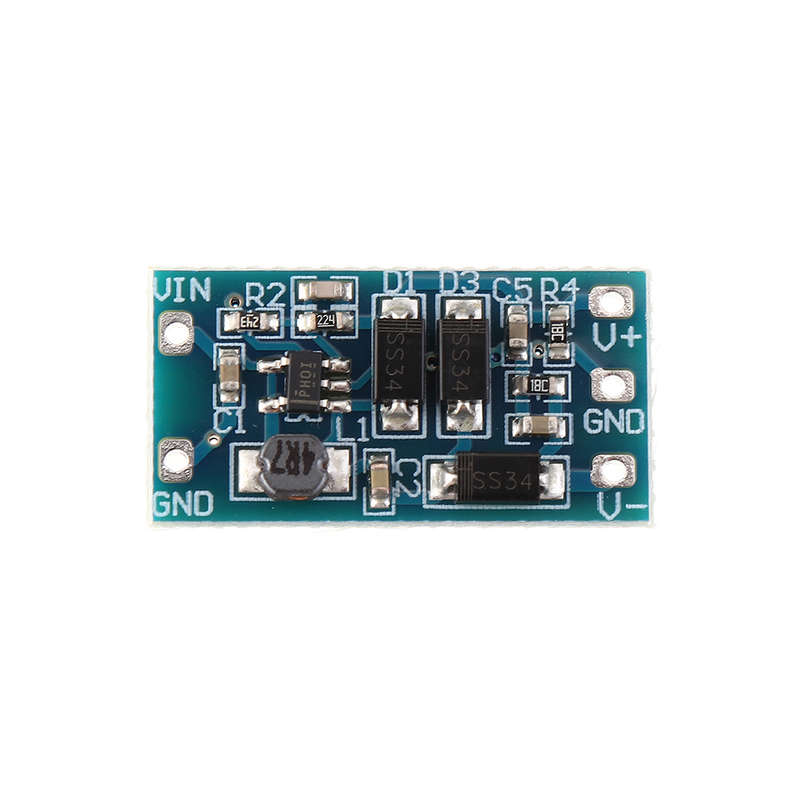

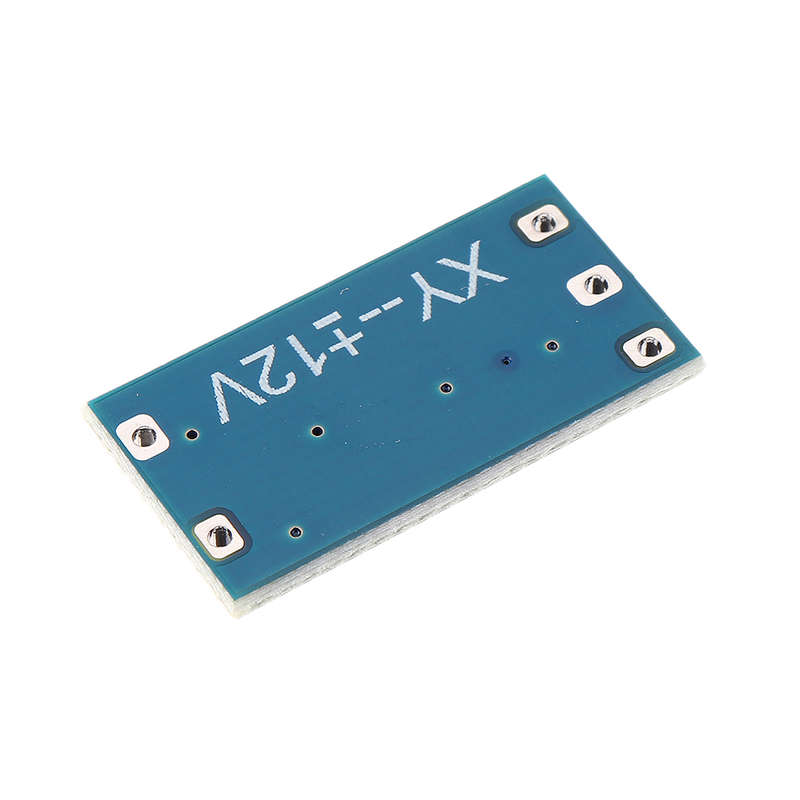

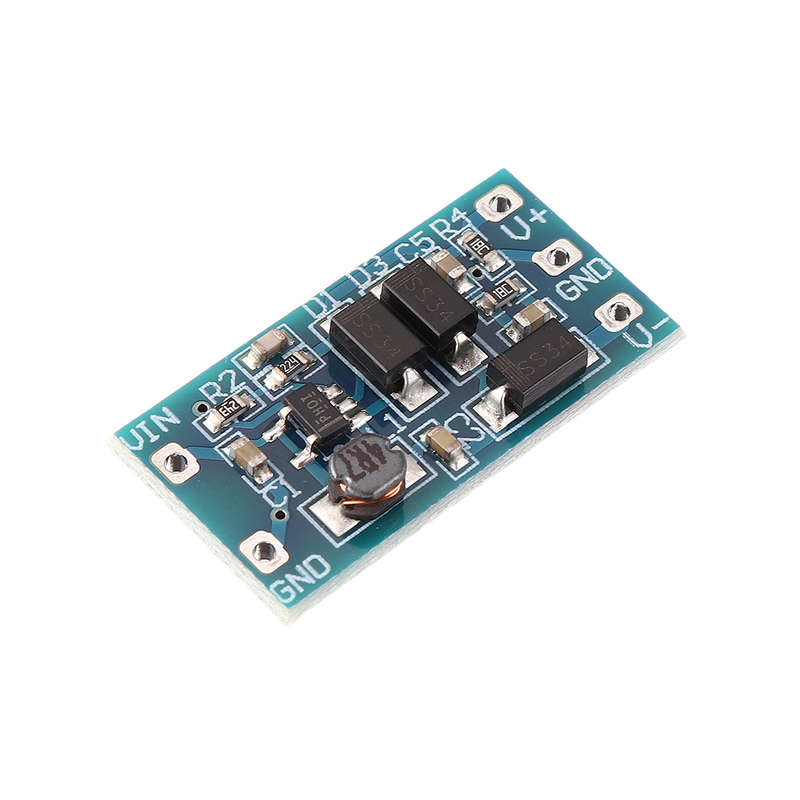

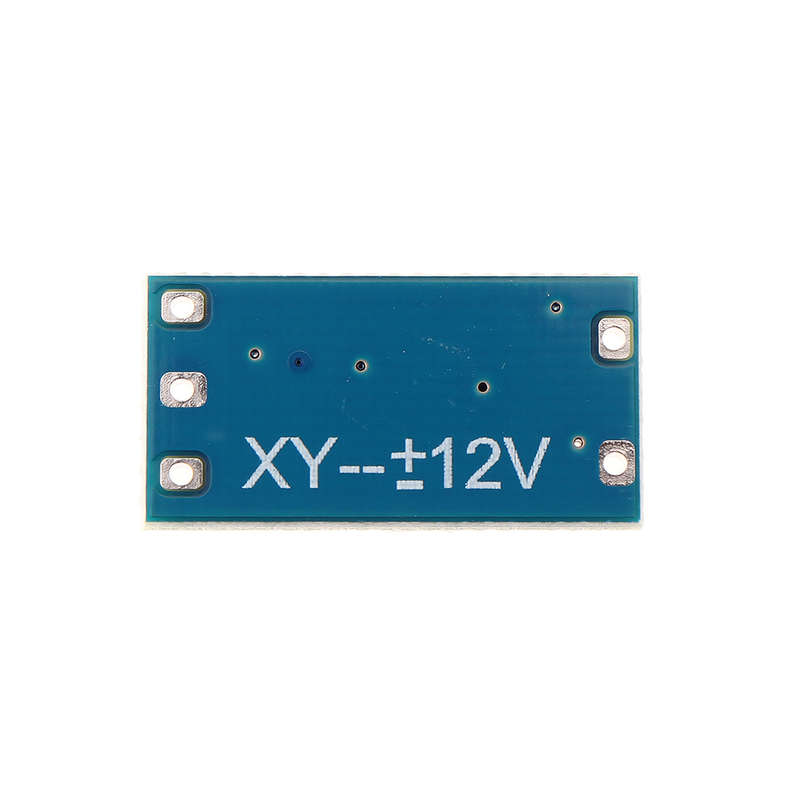

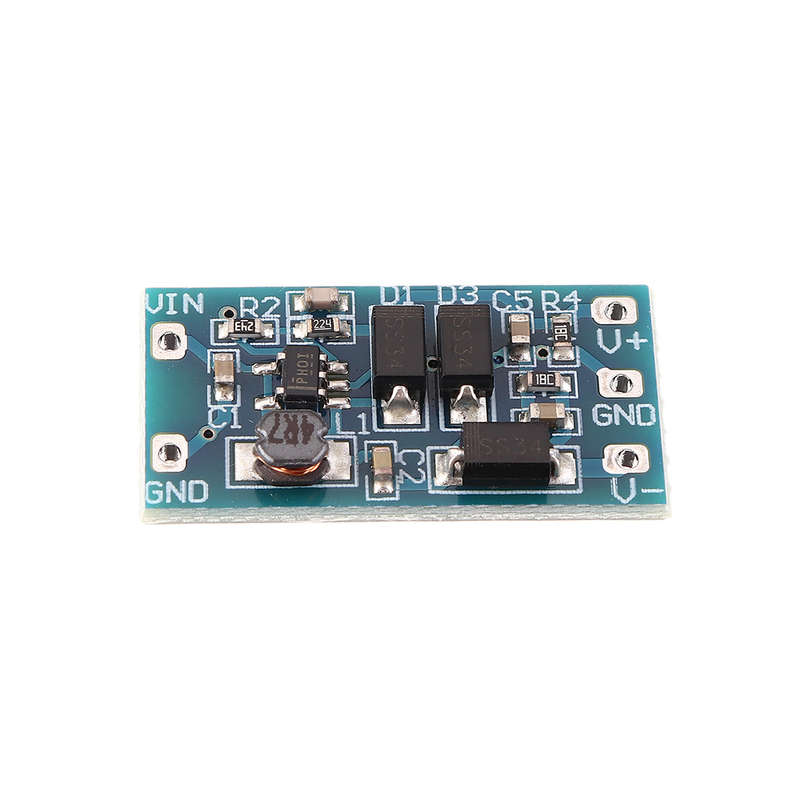

DC-DC 5V to 12V Power Supply Module 2.8V - 5.5V Input 12V Output Step Up Module DC DC Converter Boar

20 available / new

R379.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3462

93.47 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641121412

Features: This module absolutely uses the original imported chip, the performance is very good, you only need a 3V ~ 5V battery (lithium battery, nickel-metal hydride battery, etc.) you can easily get &pm;12V voltage. Small size and easy to install. Specifications: Input voltage range: 2.8V~5.5V Output voltage: &pm;12V (V+ is +12V, V- is -12V) Output current: +12V can stably output 50ma current capacity, -12V It can stably output 30mA current capability, and it can meet almost all ADC, DAC and amplifier applications. Size: 2.4*1.2 cm Application: This module can be used as a power supply for ADCs, DACs or amplifiers. (Not available as a power supply for high-power loads.) Note: Due to the diode's voltage division, the -12V supply is 0.4-0.6V lower than the +12V supply. This module is not power type, do not connect to high power load. Package Included: 1 x DC-DC 5V to &pm;12V Power Supply Module 2.8V~5.5V Input 12V Output
