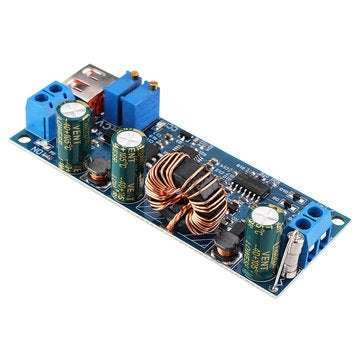

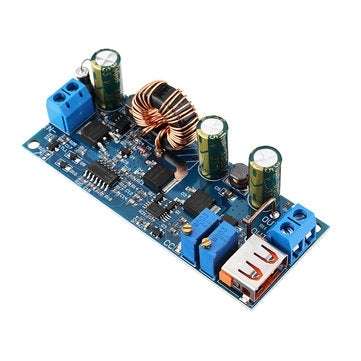

Name: DC-DC 5V to 12V24V USB Boost Module 45W-80W Adjustable Power Supply Module 3.7V 18650 Lithium Batter
SKU: ZHIQIAN-024261
Price: 438.00 ZAR
Availability: SoldOut

DC-DC 5V to 12V24V USB Boost Module 45W-80W Adjustable Power Supply Module 3.7V 18650 Lithium Batter

New

20 were available

R438.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 11 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou5624

90.81 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Product code

ZHIQIAN-024261

Bob Shop ID

690017918

Feature:

Input voltage: 2 ~ 24V Output voltage: 3~30V (Note: The USB port is directly connected to the output port. It is an adjustable voltage port of 3-30V, not a 5V port. When connecting a 5V device, please confirm the output voltage of the USB port to avoid burning too high. Bad your device. Input current: up to 15A Output current: up to 4A The CC potentiometer is a current limiting potentiometer. When the current limit is reached, the CC indicator lights up and enters the constant current mode. The boosting structure adjusts the limiting current and cannot directly short the output end. It can be adjusted to the minimum counterclockwise, and then connected to the battery. Turn clockwise to increase the current. Output power: 3.7V input, maximum 45W; 12V input, maximum power 80W; Output ripple: two-stage filtering, low ripple output! Conversion efficiency: 82~95% The level of the differential pressure, the output current will affect the efficiency Input overcurrent protection: 15A fuse Input anti-reverse protection: high efficiency MOSS Input undervoltage protection: To prevent overdischarge of the lithium battery, please solder the 5.6k resistance resistor at R22 in the lower left corner of the module, which is higher than 3.5V and lower than 3V. The factory default operation is 2V voltage. If other levels of undervoltage protection threshold are required, it can be calculated by yourself. The formula is R22=12500/(U-0.75v) ohms, where U is the desired undervoltage protection threshold voltage (stop voltage). Board size: 80*31.5*20.5mm Weight: 36g

Package includes:

1 x Power supply module
1 x Heatsink
