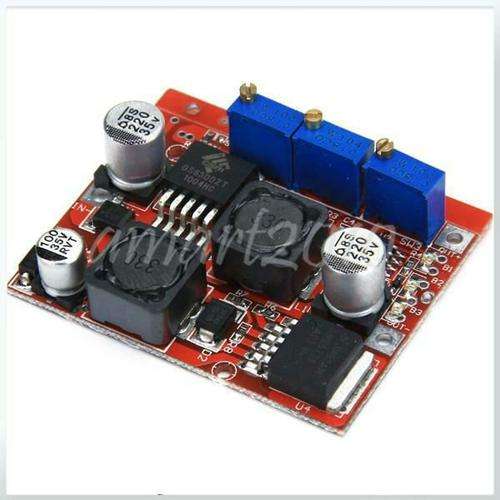

DC-DC Adjustable Voltage Step up & Step Down / Current Driver/ Charger

Description:

• 1piece of DC-DC adjustable step up/ step-down (Voltage & Current) power supply module
• Input Voltage: 5-35V
• Output Voltage: Continuously adjustable from 1.25 V to 30V
• Rated Output Current: 3A
• Max. Output Current: 4A (more than 15W, preferably with a heat sink)
• Size (L x W x H): Approx. 1.9 x 0.95 x 0.5 inch / 4.8 x 2.4 x 1.3cm

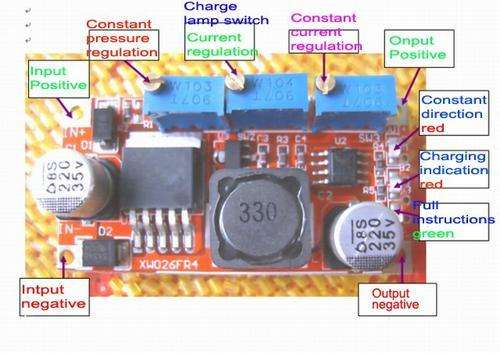

• Indicator Light
  • Constant current indicator(red)
  • Charging indicator(red)
  • Charged full (green)

Applications:

• High-power LED constant current drive
• Lithium battery charger (including ferroelectric)
• 4V, 6V, 12V, 14V, 24V battery charger
• Nickel cadmium, nickel metal hydride battery pack charger
• Solar panels and wind turbines

Battery Use:

• Make sure of the voltage and current of the battery you need to charge
• Adjust the constant voltage potentiometer to make the output voltage same to the charge voltage
• Potentiometer Adjustment Direction: Clockwise (increase), counterclockwise (decrease)
• Use the multimeter in 10A current scale to measure output short-circuit current, and adjust the current potentiometer to make sure the output current to the expected charging current value
• The charge current of transfer lamp is default 0.1 times of the charging current (constant current value)
• Connected to the battery and try to charging (for previous 5 steps, module input terminal is connected to power source, output load is NOT connected to batteries)

LED Constant Current Driver Use:

• Make sure operating current and Max operating Voltage of the LED you need to drive
• Adjust the constant voltage potentiometer to make sure the output Voltage is up to LED Max operating Voltage
• Use the multimeter in 10A current scale to measure output short-circuit current, and adjust the current potentiometer to make sure the output current to the expected LED operating current
• Join LED, test (For the above 3 steps, module input terminal is connected to power source, output load is NOT connected to LED)
