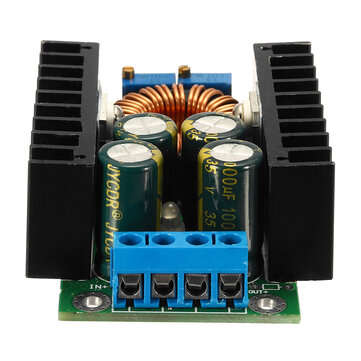

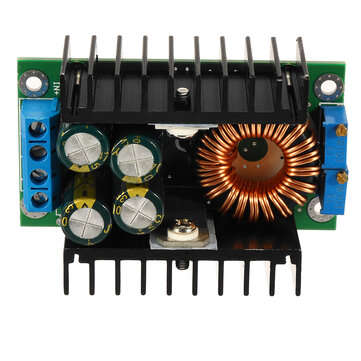

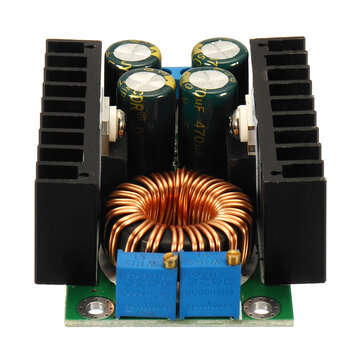

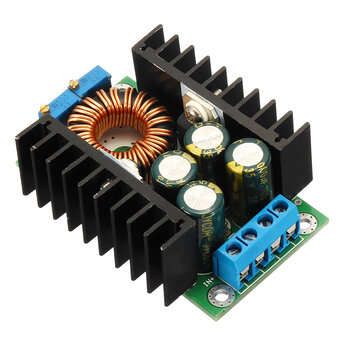

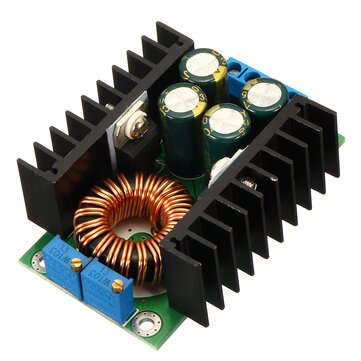

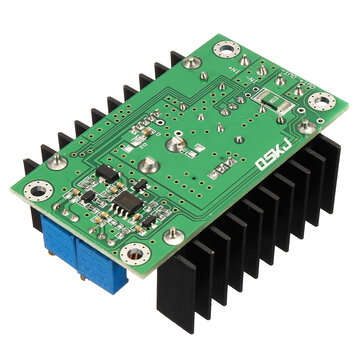

DC-DC CC CV Buck Converter Board Step Down Power Supply Module 7-32V to 0.8-28V 12A

New 12 were available
R305.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
609785682
Features: ? - Fixed turn lamp current is 0.1 times the current value ( Used to identify whether the battery is fully charged When charging). - Made from a dedicated benchmark IC and high-precision current sensing resistor, proving a more stable constant current, (when 20?ᆪC to 100?ᆪC constant current 1A, temperature drift less than 1%). Particularly suitable for LED. - High output current, the max output current can reach 8A. - Four high frequency capacitance, can lower output ripple, enhance the work stabilization. - Double heat sink design. MOS schottky diode independent heat sink,which heat dissipation is good,and wona??t affect each other. - Using large size Sendust Core and double pure copper wiring, improve working efficiency, reduce fever. - 3296 multiturn potentiometer,high accuracy voltage and current regulation, good stability. - Double color lamp, working condition be clear at a glance - Voltage and current are adjustable,wich effect is good. ? Parameters: ? - Module Properties: Non-isolated step-down constant current, constant voltage module (CC CV) charging module - Input Voltage: DC 7-32V - Output Voltage: (1) DC 1.2-28V continuously adjustable. (2) Fixed output:Choose between 0.8v-28v - Output Current: 8A (when power tube's temperature exceeds 65 degrees, please add cooling fan) - Constant Current Range: 0.2-8A (Adjustable) - Turn Lamp Current: Constant current value * (0.1), turn the lamp current and constant value linkage, such as constant current value is 3A, turn the lamp current is set to a constant current is 0.1 times (0.1 * 3A = 0.3A) - Lowest Pressure: 1V - Output Power: Maximum power is about 200W - Conversion Efficiency: Up to about 95% - Operating Frequency: 300KHZ - Output Ripple: 20M bandwidth - Input 24V output 12V 5A ripple around 50mV (Excluding noise) - Output Short Circuit Protection: Yes, constant current - Input Reverse Polarity Protection: None - Output Prevent Backflow: None - Wiring: Terminal - No-Load Current: Typical 20mA (24V switch 12V) - Load Regulation: ± 1% (Constant) - Voltage Regulation: ± 1% - Dynamic ResponseSpeed: 5% 200uS - Potentiometer Adjustment Direction: clockwise (increase) , counterclockwise (decrease), the potentiometer(CV) closed to the input voltage is used to regulate voltage, the potentiometer(CC) closed to output voltage is used to regulate current (CC) - Operating Temperature: Industrial grade (-40 ?ᆪC to +85 ?ᆪC) (please note the actual use of the power tube temperature , high temperature heat strengthened) - Indicator: dual color indicator, charging indicator light is red, the green light means fully charged (No load is green) - Size: Approx. 65 x 47 x 23.5mm/2.56 x 1.85 x 0.93'' - Precision of Constant Current and Temperature: On the actual test, the module temperature from 25 degrees to 60 degrees, the constant current value change is less than 5% (5A constant current value) - Output Short Circuit Protection: Yes,Constant current (the current setting constant current value) - Input Reverse Connect Protection: NO - Output Prevent Reverse Fow: NO - Wiring Method: Amphenol connector ? Applications: ? High-power LED driver Lithium battery (or lead accumulator) charge Vehicle-mounted power supply Low voltage system power supply 6V, 12V, 14V, 24V battery charge On-board laptop power supply Regulated power supply Low voltage power supply system ? Package Includes: ? 1 x DC-DC Adjustable Power Supply Module
