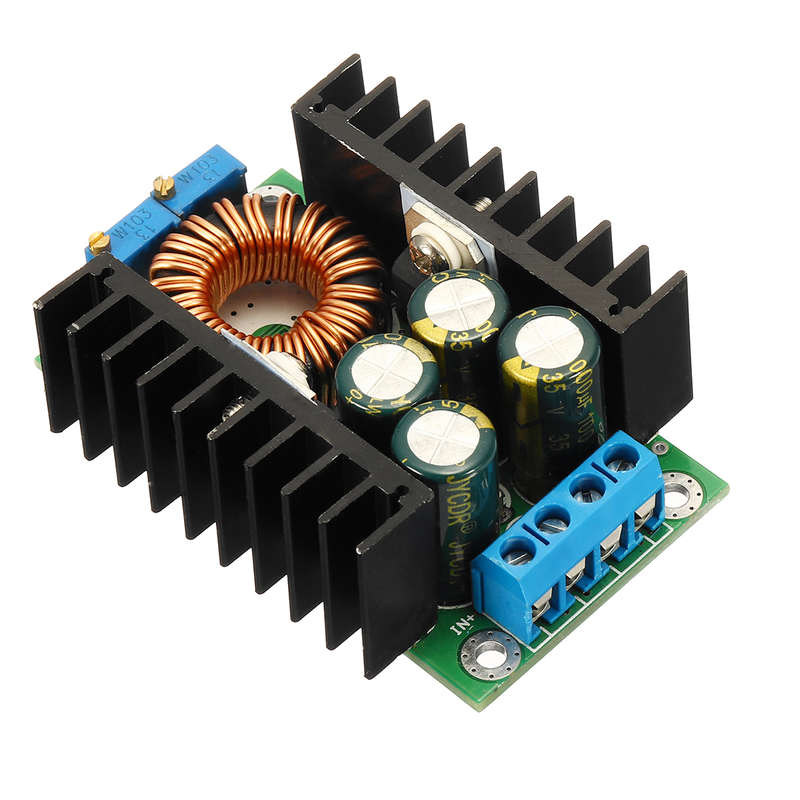

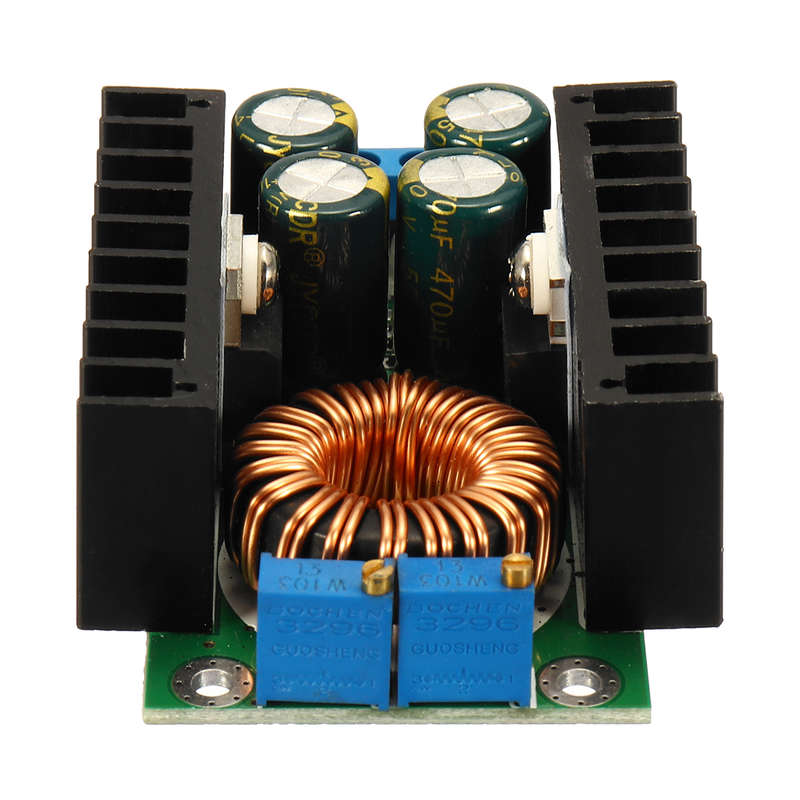

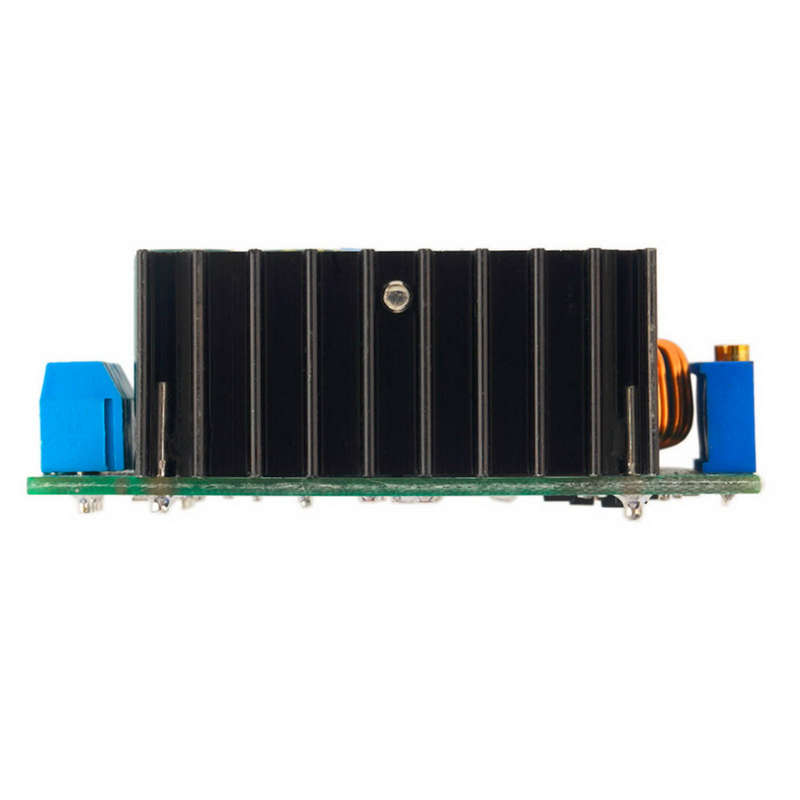

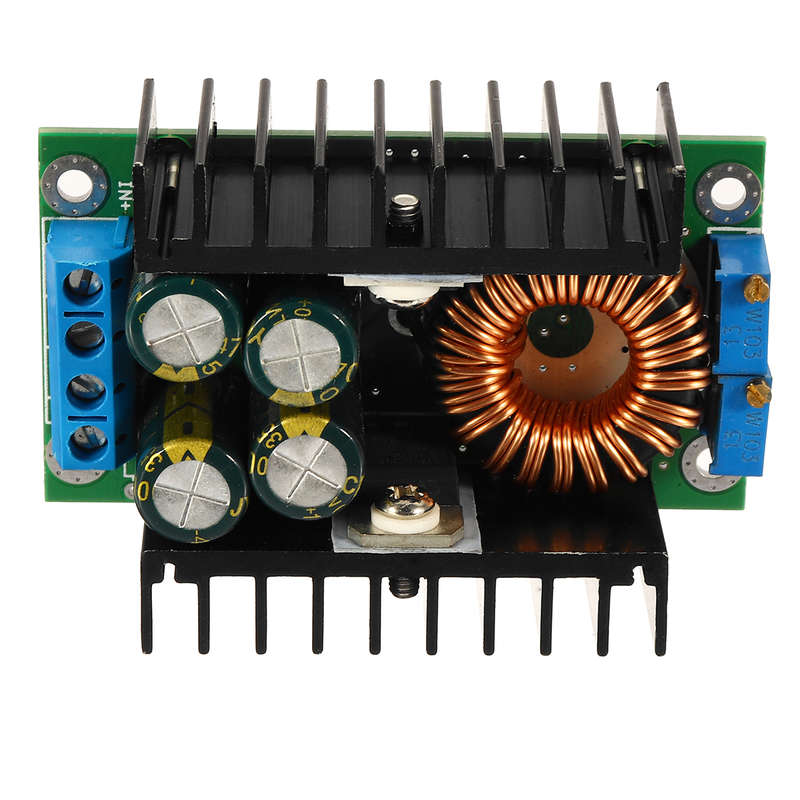

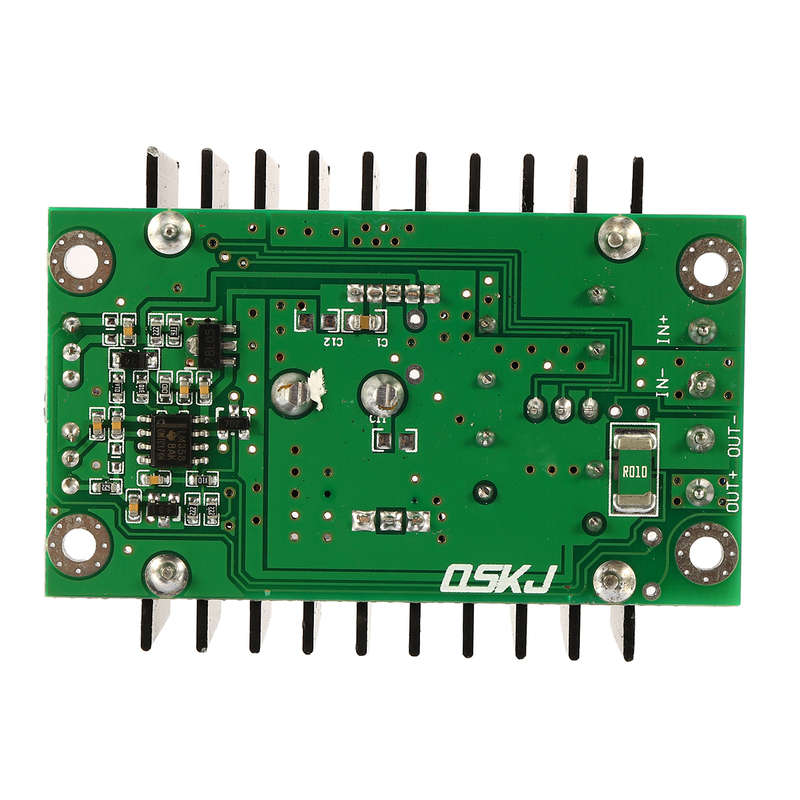

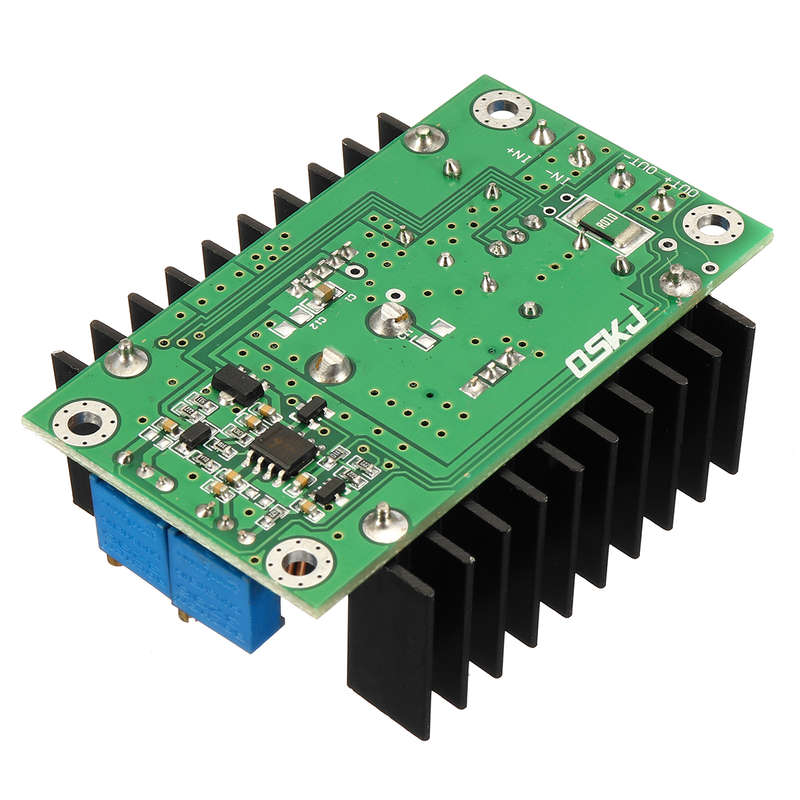

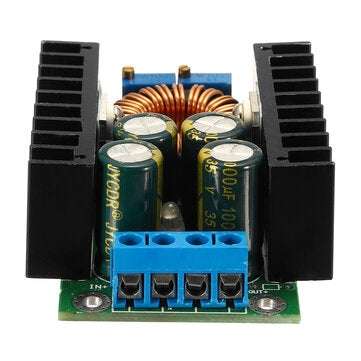

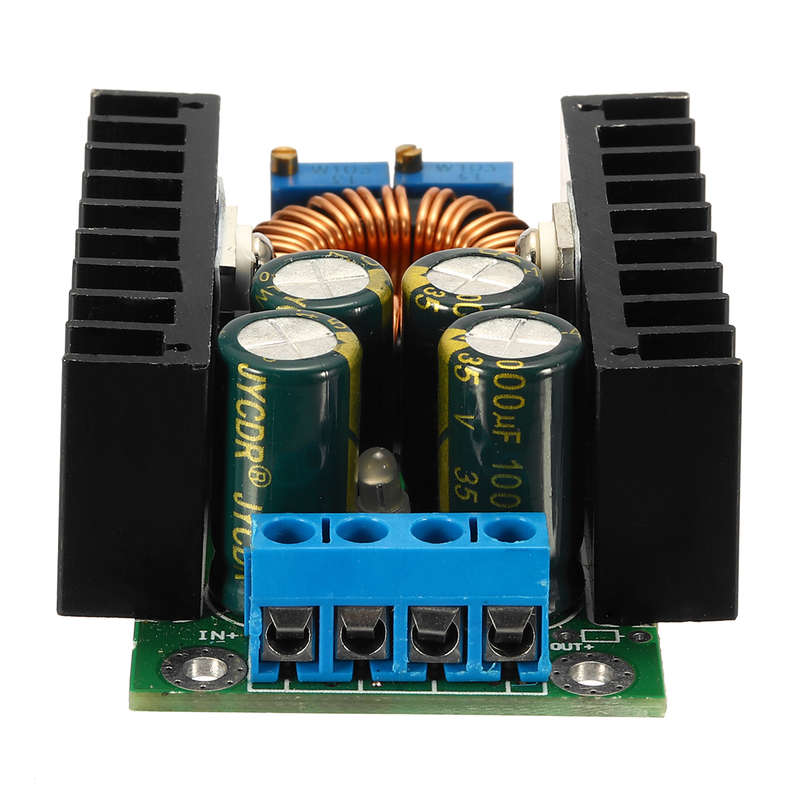

Features: - Fixed turn lamp current is 0.1 times the current value ( Used to identify whether the battery is fully charged When charging). - Made from a dedicated benchmark IC and high-precision current sensing resistor, proving a more stable constant current, (when 20ﾣC to 100ﾣC constant current 1A, temperature drift less than 1%). Particularly suitable for LED. - High output current, the max output current can reach 8A. - Four high frequency capacitance, can lower output ripple, enhance the work stabilization. - Double heat sink design. MOS schottky diode independent heat sink,which heat dissipation is good,and wonat affect each other. - Using large size Sendust Core and double pure copper wiring, improve working efficiency, reduce fever. - 3296 multiturn potentiometer,high accuracy voltage and current regulation, good stability. - Double color lamp, working condition be clear at a glance - Voltage and current are adjustable,wich effect is good.
Parameters: - Module Properties: Non-isolated step-down constant current, constant voltage module (CC CV) charging module - Input Voltage: DC 7-32V - Output Voltage: (1) DC 1.2-28V continuously adjustable. (2) Fixed output:Choose between 0.8v-28v - Output Current: 8A (when power tube's temperature exceeds 65 degrees, please add cooling fan) - Constant Current Range: 0.2-8A (Adjustable) - Turn Lamp Current: Constant current value * (0.1), turn the lamp current and constant value linkage, such as constant current value is 3A, turn the lamp current is set to a constant current is 0.1 times (0.1 * 3A = 0.3A) - Lowest Pressure: 1V - Output Power: Maximum power is about 200W - Conversion Efficiency: Up to about 95% - Operating Frequency: 300KHZ - Output Ripple: 20M bandwidth - Input 24V output 12V 5A ripple around 50mV (Excluding noise) - Output Short Circuit Protection: Yes, constant current - Input Reverse Polarity Protection: None - Output Prevent Backflow: None - Wiring: Terminal - No-Load Current: Typical 20mA (24V switch 12V) - Load Regulation: ± 1% (Constant) - Voltage Regulation: ± 1% - Dynamic ResponseSpeed: 5% 200uS - Potentiometer Adjustment Direction: clockwise (increase) , counterclockwise (decrease), the potentiometer(CV) closed to the input voltage is used to regulate voltage, the potentiometer(CC) closed to output voltage is used to regulate current (CC) - Operating Temperature: Industrial grade (-40 ﾣC to +85 ﾣC) (please note the actual use of the power tube temperature , high temperature heat strengthened) - Indicator: dual color indicator, charging indicator light is red, the green light means fully charged (No load is green) - Size: Approx. 65 x 47 x 23.5mm/2.56 x 1.85 x 0.93'' - Precision of Constant Current and Temperature: On the actual test, the module temperature from 25 degrees to 60 degrees, the constant current value change is less than 5% (5A constant current value) - Output Short Circuit Protection: Yes,Constant current (the current setting constant current value) - Input Reverse Connect Protection: NO - Output Prevent Reverse Fow: NO - Wiring Method: Amphenol connector
Applications: High-power LED driver Lithium battery (or lead accumulator) charge Vehicle-mounted power supply Low voltage system power supply 6V, 12V, 14V, 24V battery charge On-board laptop power supply Regulated power supply Low voltage power supply system

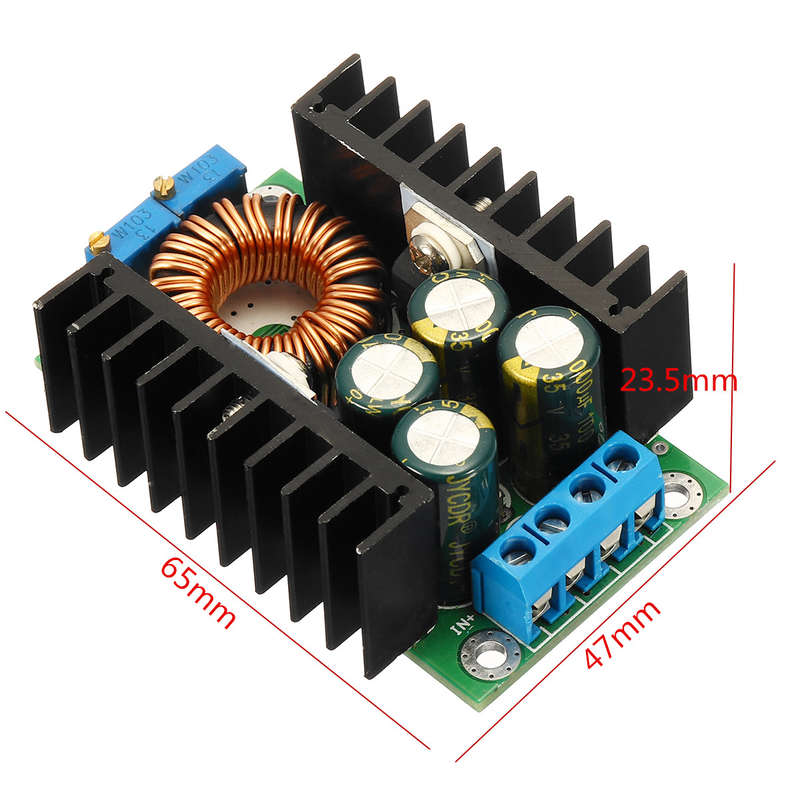

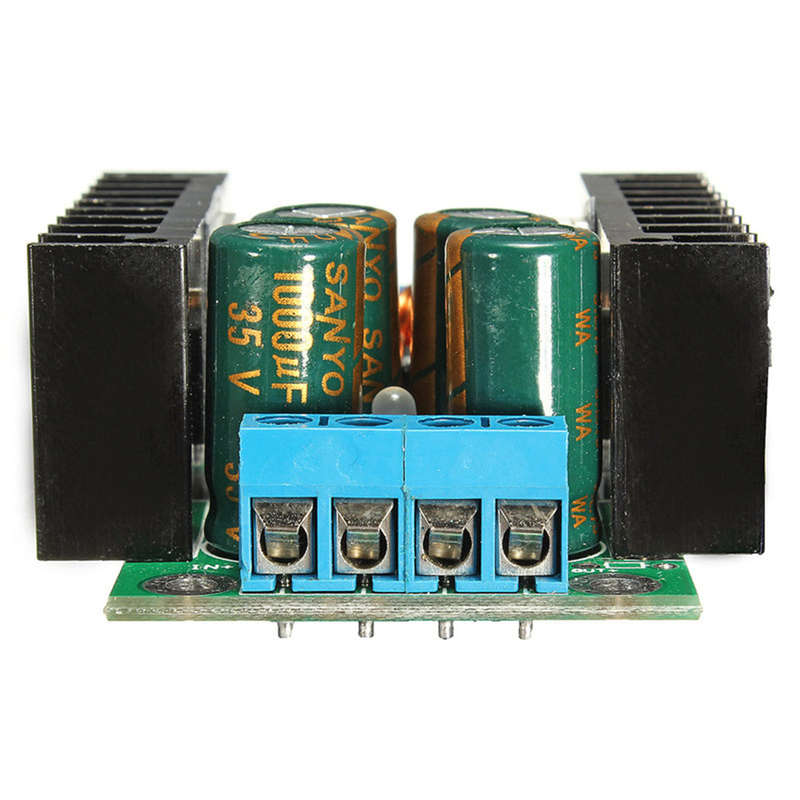

Package Includes: 1 x DC-DC Adjustable Power Supply Module
