DC- DC Converter (24v to 5V 15A)

DC- DC Converter (24v to 5V 15A)

15 available / new
R352.65
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
MOD-210
Bob Shop ID
624850107

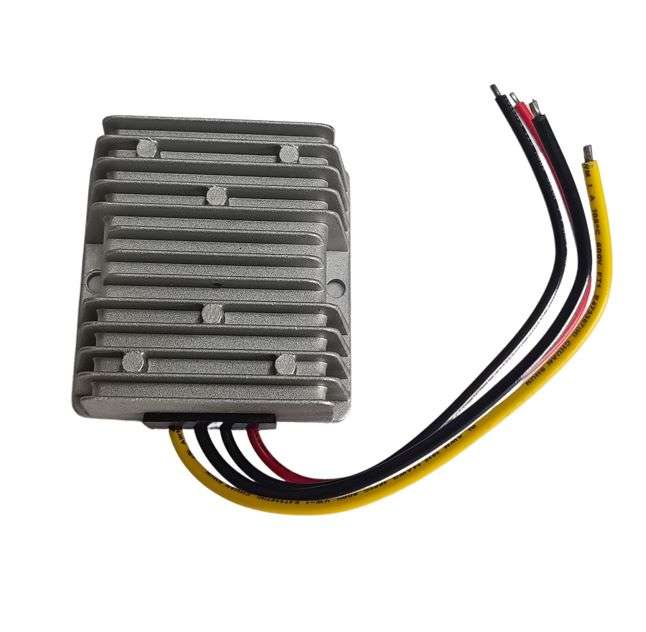

DC- DC Converter (24v to 5V 15A)

DC-DC converters are a popular choice in power supply for automotive, industrial control, and electronic systems that require a steady, regulated DC voltage. For example, such a device can step down a truck battery's 24V to 12V for powering a car radio, CB transceiver, or mobile phone. This particular model (24V to 5V 15A) can convert 24V DC to 5V DC with a max current output of 15A.

The MAX3864xA/B ultra-low 330nA quiescent current buck DC-DC converter is an ideal circuit capable of converting 24V DC input to 5V DC output at 15A current. This device is designed to operate from 1.8V to 5.5V input voltage, supporting up to 175mA, 350mA, or 700mA current with peak efficiencies reaching 96%. Its ability to accurately convert voltage and maintain efficiency makes it a perfect solution for DC-to-DC conversion.

Technical Specification:

  • Input Voltage: 12V/24V DC
  • Input Voltage Range: 8-40V DC
  • Conversion Efficiency: >94%
  • Output Voltage: 5V
  • Output Current: 15A
  • Output Rated Power: 75W
  • Output Peak Power: 130%
  • Voltage Adjustment Rate: <1%
  • Load Regulation: <2%
  • No-Load Current: <20mA
  • Ripple: <100mV
  • Operating Temperature of DC 12-24V to DC 5V 15A Step down Voltage converter power supply module IP68 : -30 to + 80
  • Waterproof Rating: IP68
  • Overcurrent Protection: Yes
  • Overvoltage Protection: Yes
  • Overtemperature Protection: Yes
  • Short Circuit Protection: No
  • Cooling Way: Die-cast Aluminum Casing for Natural Cooling
  • Weight of DC 12-24V to DC 5V 15A Step down Voltage converter power supply module IP68: Approx. 292g
  • Size: Approx. 74 * 74 * 32mm

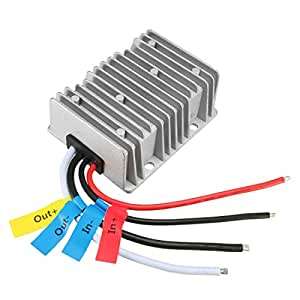

Pin Out:

DC- DC Converter (24v to 5V 15A)
