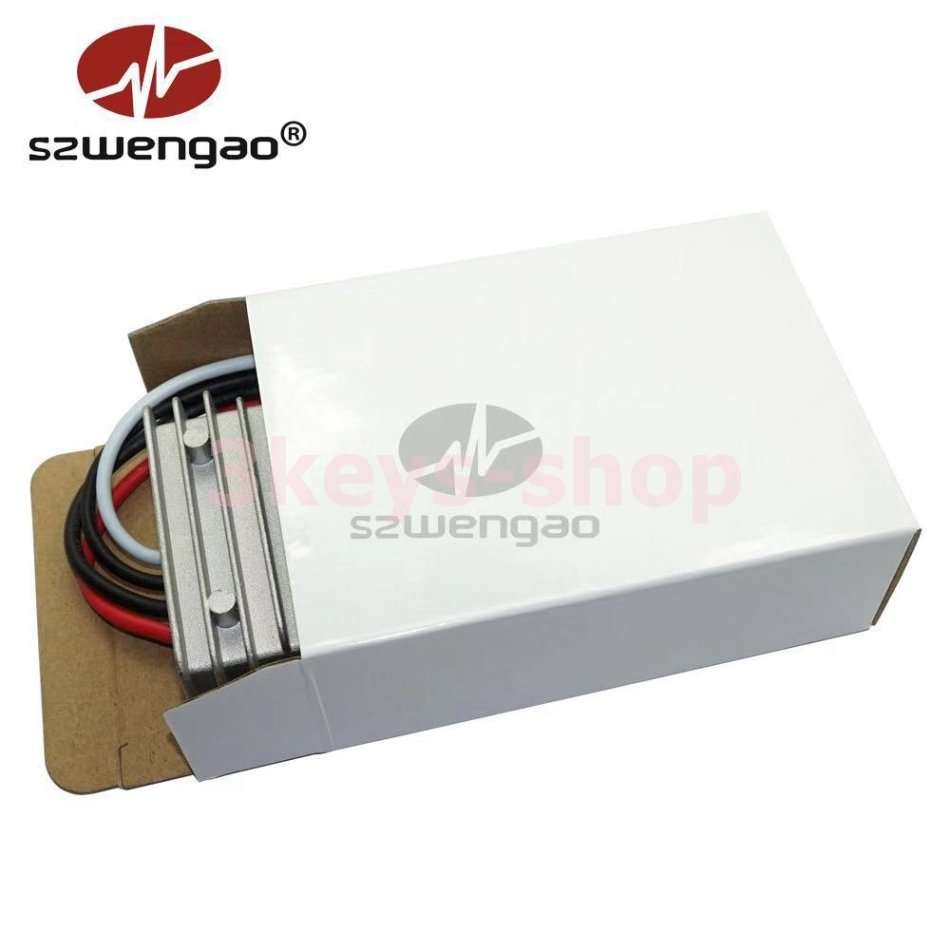

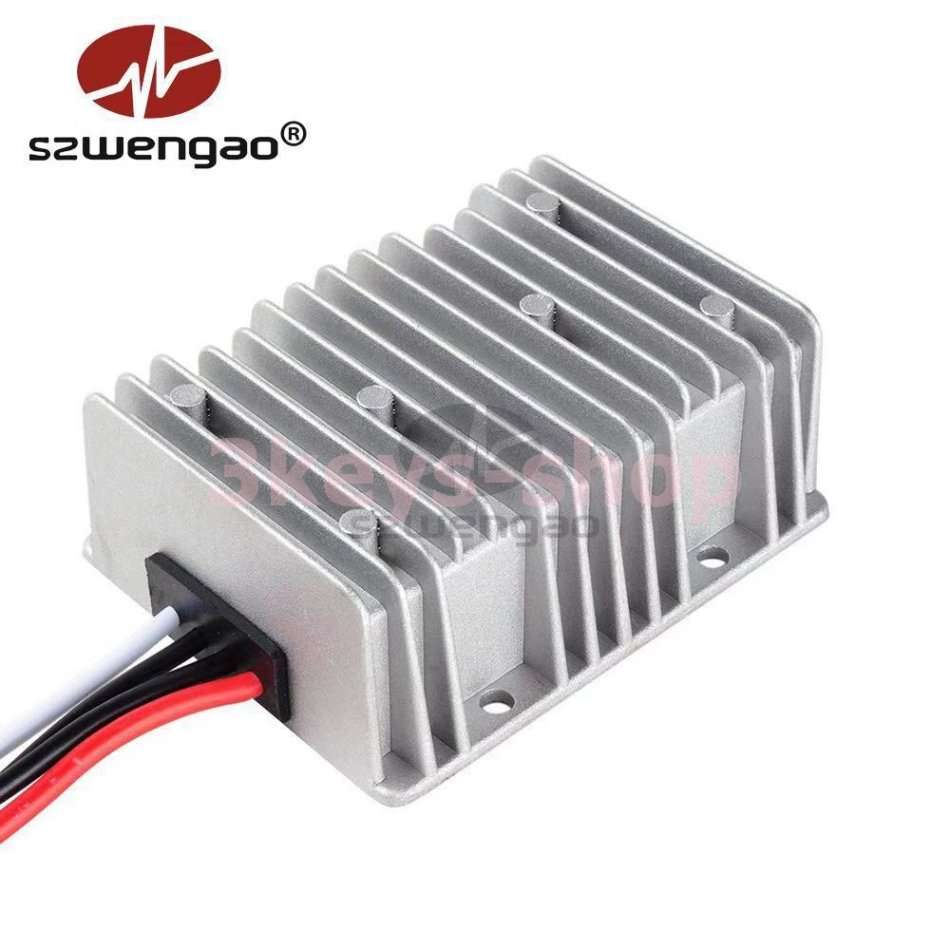

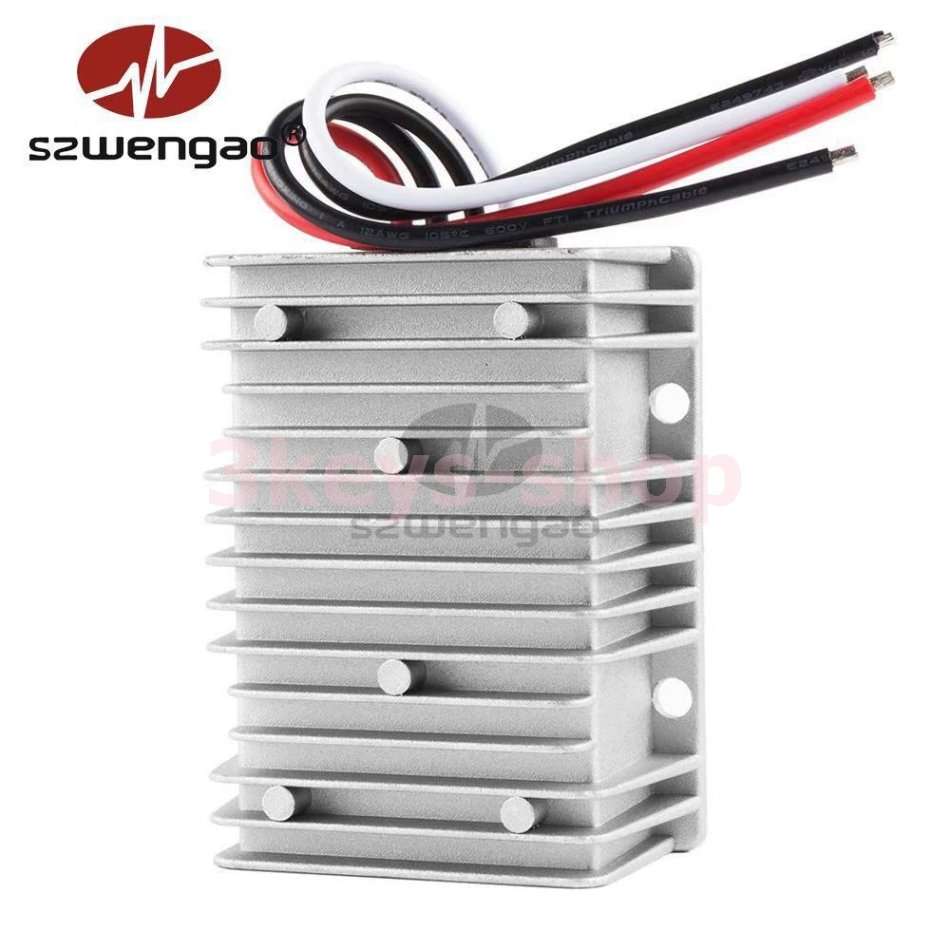

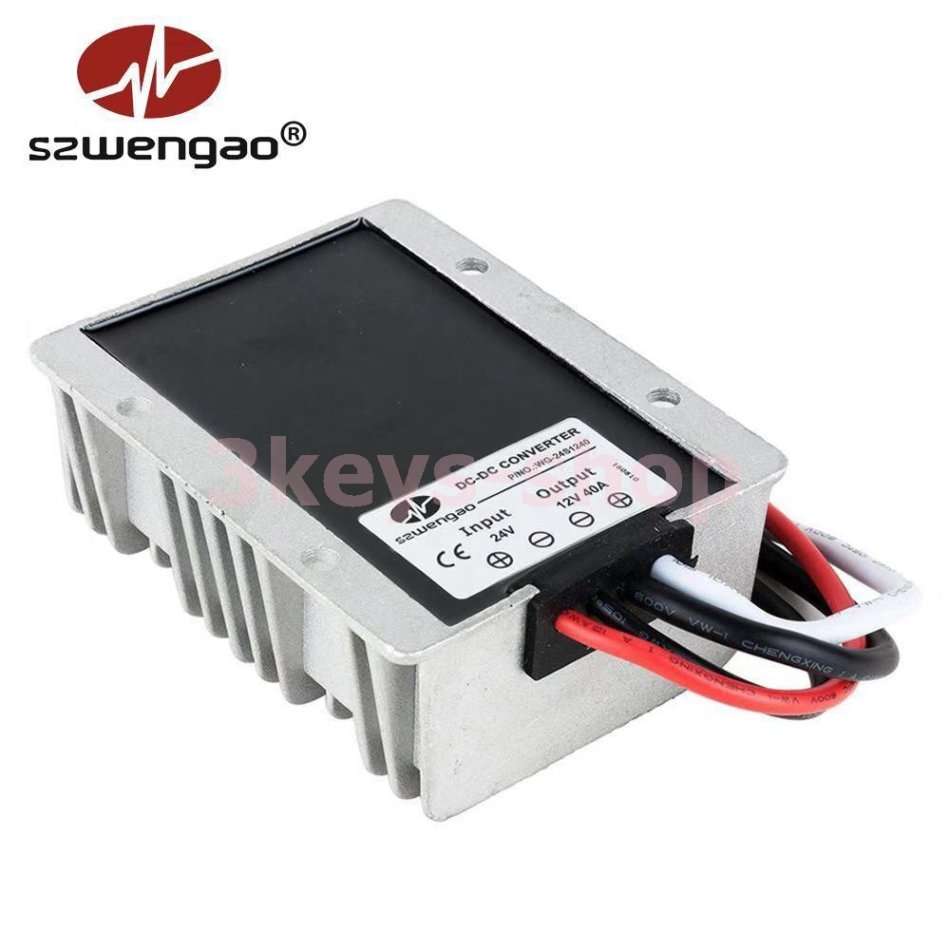

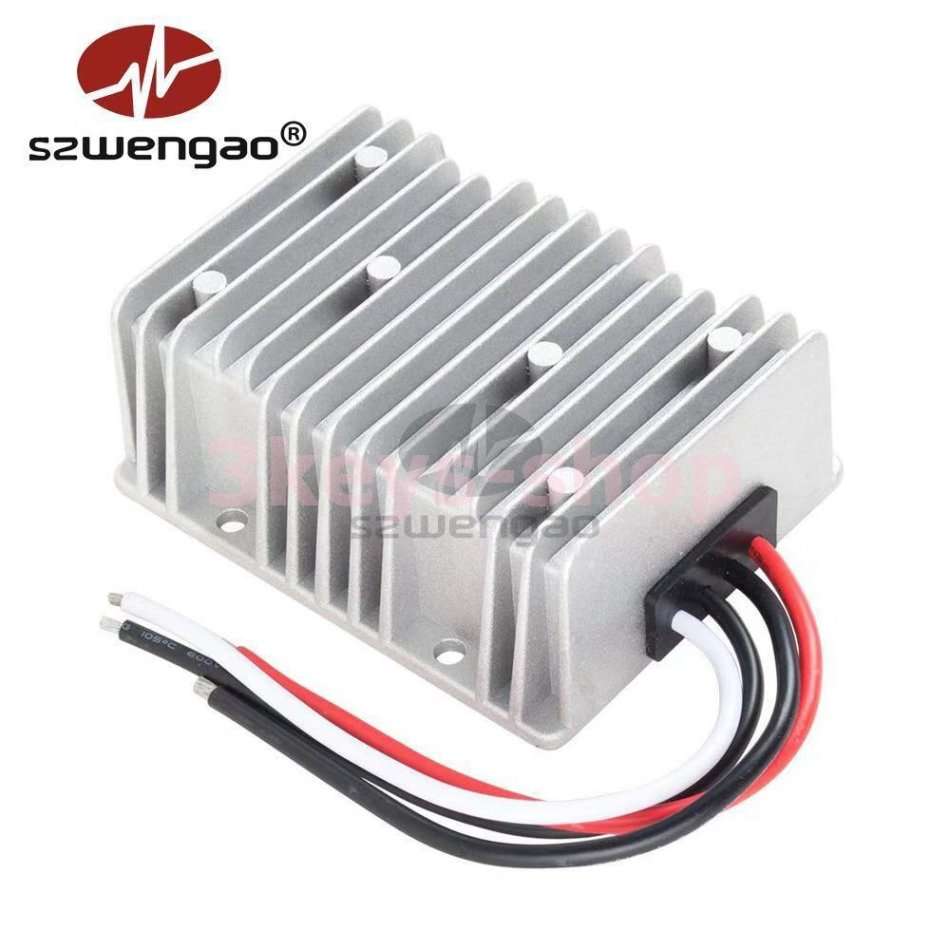

DC/DC Converter Regulator 24V To 12V 40A 480W Low Voltage Transformer Waterproof

  DC/DC Converter Regulator 24V To 12V 40A 480W Low Voltage Transformer Waterproof

Professional manufacturing quality assurance Service life up to 100,000 hours

• Waterproof IP68 Voltage Converter Regulator DC 24V to DC 12V 40A 480W.
• Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage.
• Auto-recovery when device is back to normal operating; high transfer efficiency of 95% max..
• Die-cast aluminum shell, anti-shock, and moisture-proof and has stronger durability.Widely used in bus, cmb, large trucks, motor, solar generate electricity, display screen of bus and taxi, car audio device
• Note: It is recommended to use stable DC power for the input power supply If you use the pulsed DC power provided by the generator, please filter it with capacitor before connecting it to the converter. If you use solar panel to supply directly, please note that the open circuit voltage of the solar panel cannot exceed the maximum withstand voltage of the converter. The supply voltage should be within the rated voltage and always leave a certain margin.
• Features:
  1. 100% full power and stable current output, non-isolated module.
  2. Waterproof level IP68 and anti-shock protection, Ultra compact size, light weight.
  3. Industry grade DC24V to DC 12V step-down converter,  efficiency up to 95%.
  4. Die-cast aluminum shell, epoxy potting, cooling by free air convection.
  5. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.
  6. Certificates: CE/RoHS, 1 year warranty, lifetime up to 100,000 hours.

  Specifications:
  * Input Rated Voltage: DC 24V
  * Input Voltage Range: 19-35V DC
  * Output voltage: DC12V 40A
  * Output Rated Power: 480W
  * Efficiency: 97% (half load); 95% (full load)
  * Output Peak Power: 600W
  * Voltage Regulation: Less Than 1%
  * Load Regulation: Less Than 2%
  * Ripple(full load test): Less Than 150mV



• 1 x DC 24V to DC 12V 40A Voltage Converter
