DC-DC Power Module 25W

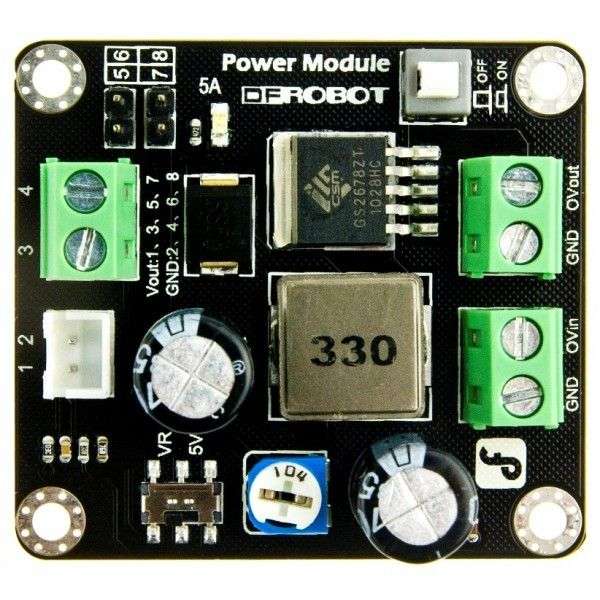

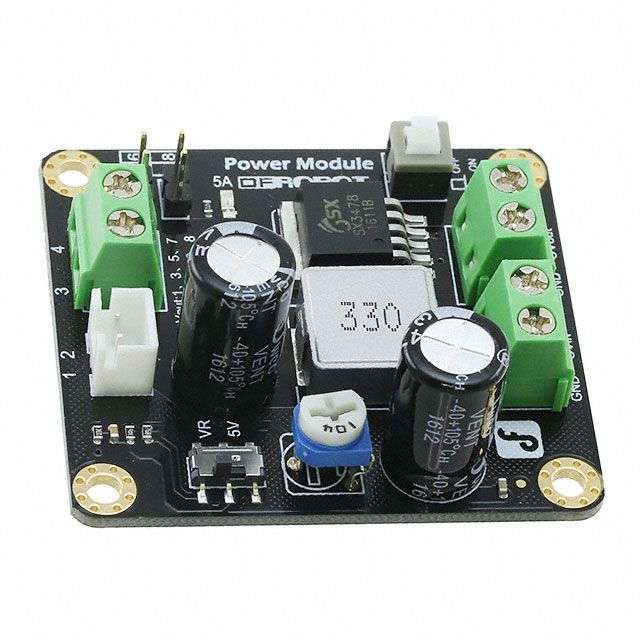

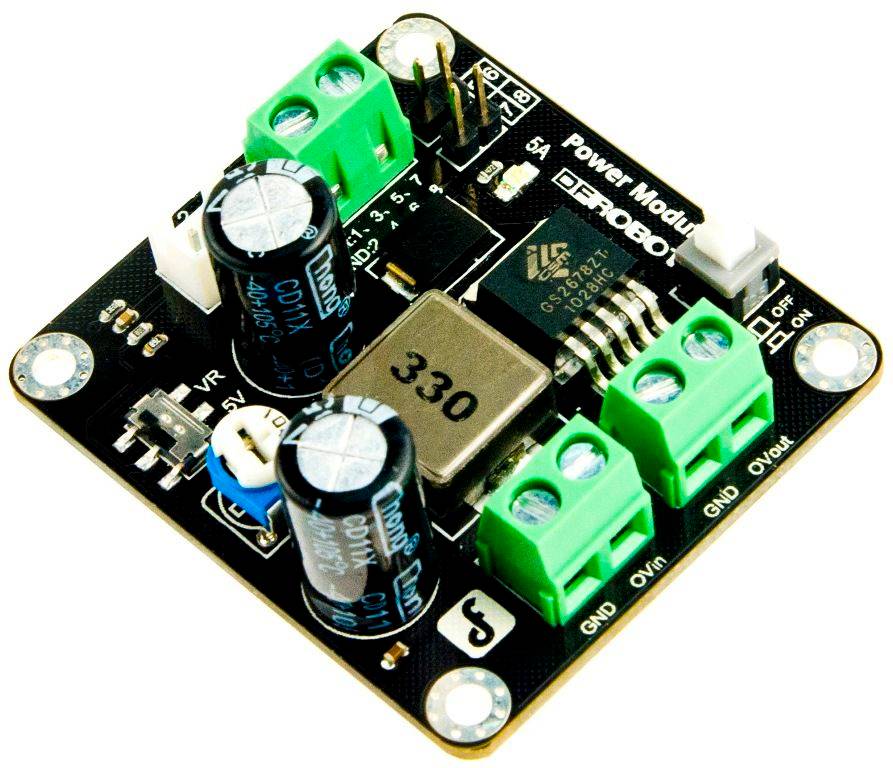

This Power Module is a small 5A 350KHz 25V Buck DC to DC Converter. It canconvert any DC voltage between 3.6V-25V to a selectable voltage from 3.3V to25V.You can choose 5V direct output voltage with the convenient onboard switch oradjust the output voltage by the blue & white resistor. Three different outputinterfaces for convenient and fast prototyping of projects with multiple voltagerequirements.The Ovout (Original Voltage output) interface can output the power supplyvoltage of input so that can be used to power other parts as well.This interface proves very helpful when using a power supply that fits therequirements for one component, and then use the power module to adapt the powerfor the other components.The ON/OFF button on the board can be pulled high to turn the converter moduleon and low to turn it off.Cautions: The input voltage must be higher than the output voltage.Specifications:- Input voltage range: 3.6V-25V- Output adjustable range: 3.3V-25V- Constant output current: 5A at 5V- Max Output Power: 25W- Switching Frequency: 350KHZ- Three different output interface- One interface of original voltage output- Size:46x50x20mm
