Specification:
Input Voltage Range: DC 6V-12V (Input voltage must be at least 1V higher than the desired output voltage)
Output Voltages:
3.3V ± 0.2 error
5.0V ± 0.2 error
12V (Direct pass-through from input)
Output Current: 800mA (Load current should not exceed 800mA)
Input Adapter Voltage Range: 100-240V AC
Adapter Output: 12V 1A

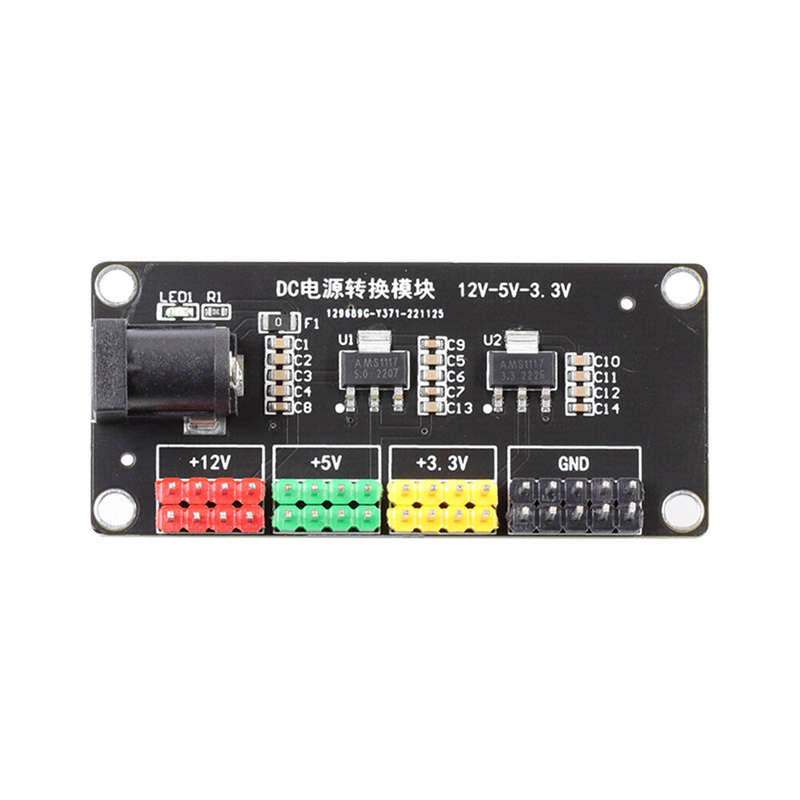

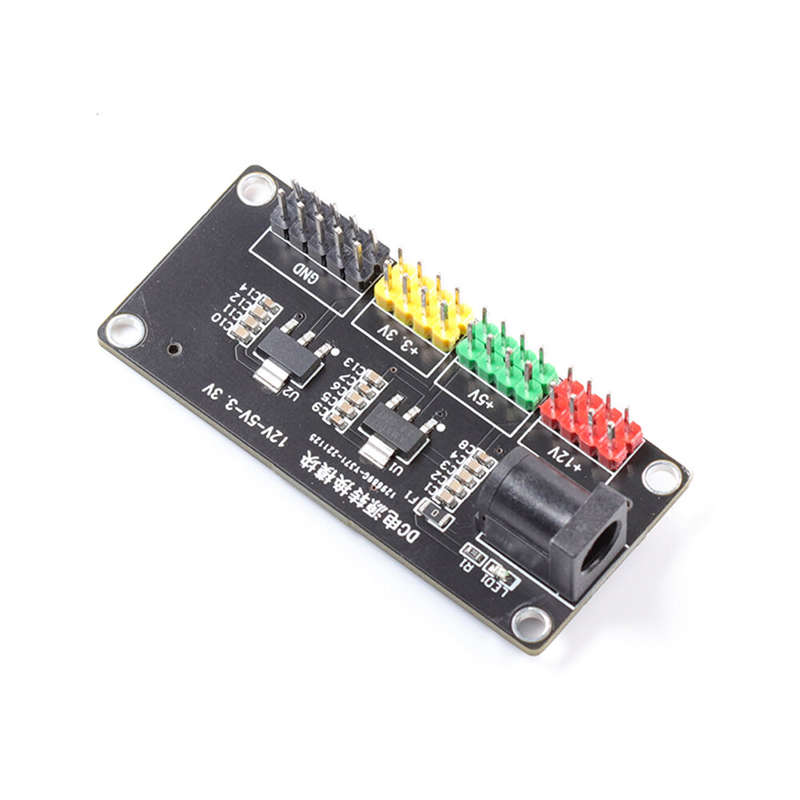

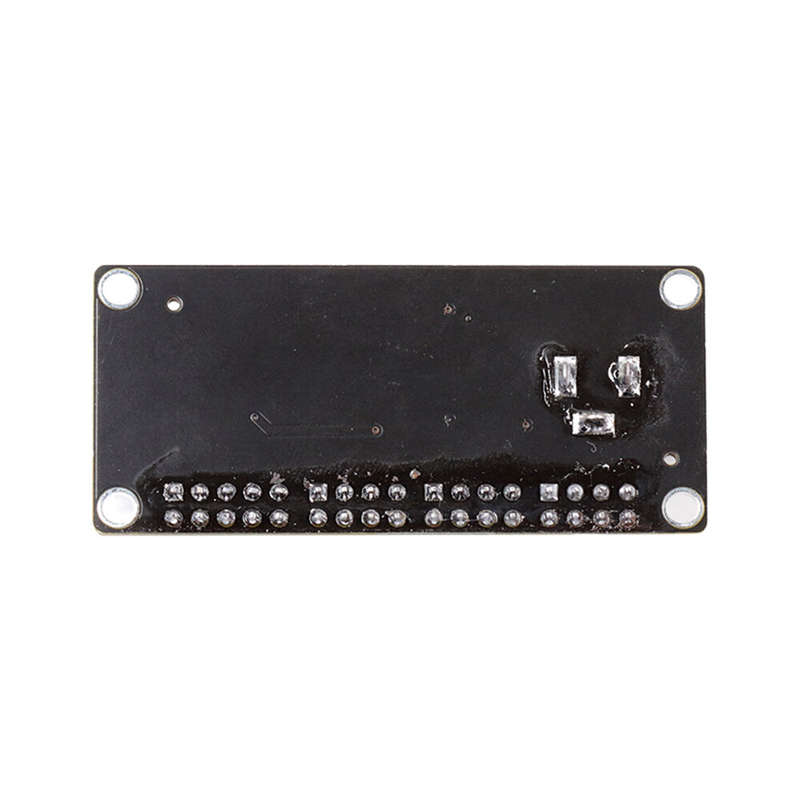

Double Panel Design
PCB Board Size: 59.5mm x 26.5mm
DC Interface: 5.5mm x 2.1mm
Power Indicator: Red LED
Features:
1. High Stability: This DC-DC power supply module offers high stability and is designed for reliable performance.
2. Multiple Output Voltages: It provides three output voltage options - 3.3V, 5.0V, and 12V, making it versatile for various applications.
3. Wide Input Voltage Range: Supports input voltages ranging from 6V to 12V,
