DC-DC Step-Up Power Module Output 5V-35V - XL6009 DC-DC Step-Up Power Module Output 5V-35V - XL6009 DC-DC Step-Up Power Module Output 5V-35V - XL6009
DC-DC Step-Up Power Module Output 5V-35V - XL6009 DC-DC Step-Up Power Module Output 5V-35V - XL6009 DC-DC Step-Up Power Module Output 5V-35V - XL6009

DC-DC Step-Up Power Module Output 5V-35V - XL6009

59 available / new
R51.75
Shipping
R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
POW-00056
Bob Shop ID
633481395

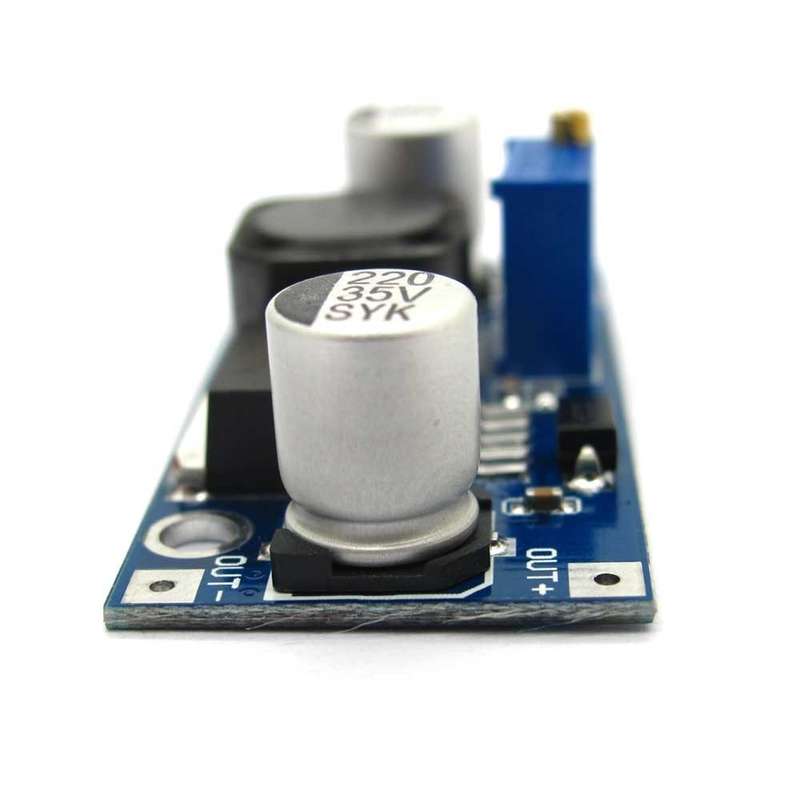

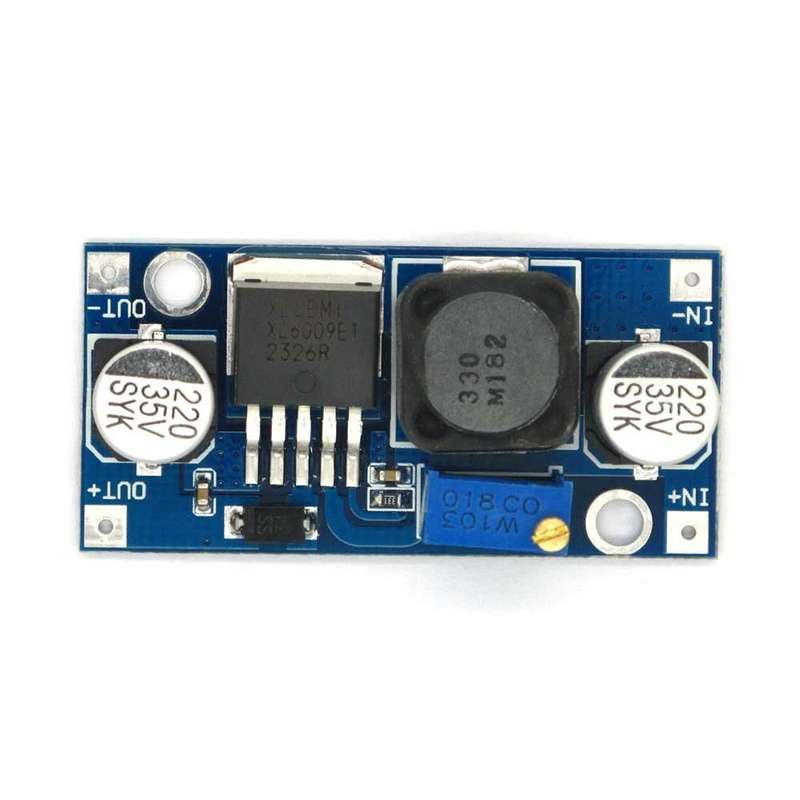

This is a DC-DC boost converter step-up power module with high-precision potentiometer, and it uses XL6009E1 with the second generation of high-frequency switching technology as core chip, so that its performance is much higher than the first-generation technology LM2577. With high switching frequency of 400KHz, even small-capacity filter capacitors can bring with very nice results, while the ripple is less and the is smaller.

Specifications:
  • Wide input voltage 3.5V ~ 32V (optimum operating voltage range is 5 ~ 32V)
  • Wide output voltage 5V ~ 35V
  • Built in 4A efficient MOSFET switch, so that the efficiency up to 94% (LM2577 current is only 3A)
  • Ultra-high switching frequency 400KHz, you can use a small-capacity filter capacitors that can achieve very good results, the ripple is smaller and smaller. (LM2577 frequency only 50KHz)
Features:
  • Model: XL6009 boost module
  • Module Properties: non-isolated step-up (BOOST)
  • Rectification: Non-Synchronous Rectification
  • Input range: 3.5V ~ 32V
  • Output range: 5V ~ 35V
  • Input Current: 4A (max), empty load current 18mA (5V input, 8V output, empty load current 18mA, the higher the voltage, the greater the empty load current.)
  • Conversion efficiency: <94% (the greater the pressure, the lower the efficiency)
  • Switching Frequency: 400KHz
  • Output ripple: 50mV (the higher the voltage, the greater the current, the greater the ripple)
  • Load regulation: 0.5%
  • Voltage regulation: 0.5%
  • Working temperature: -40 ~ +85
  • Dimensions: 43mm * 21mm * 14mm (L * W * H)
