Specifications:

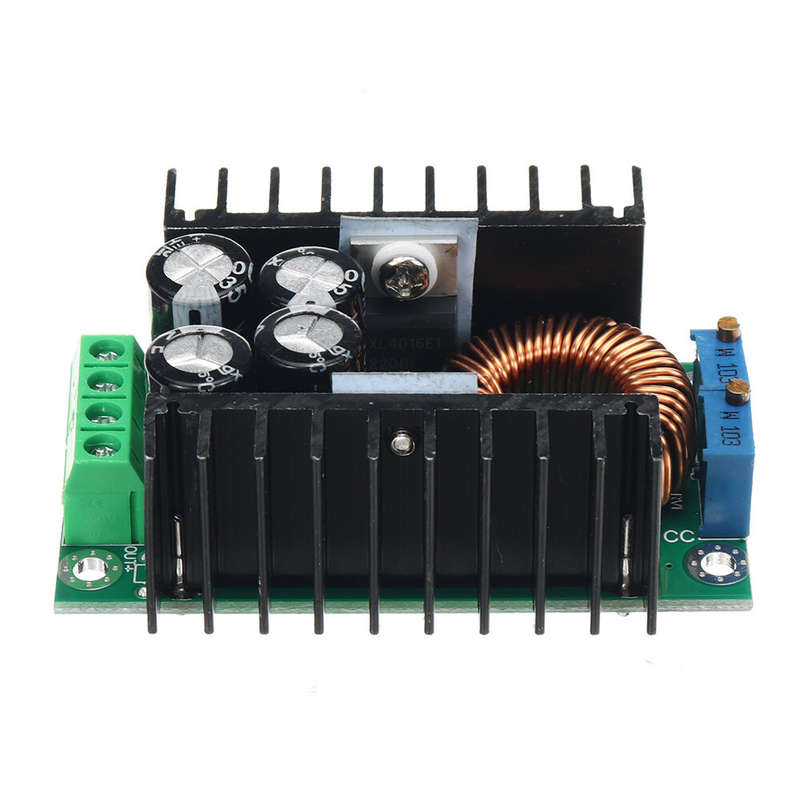

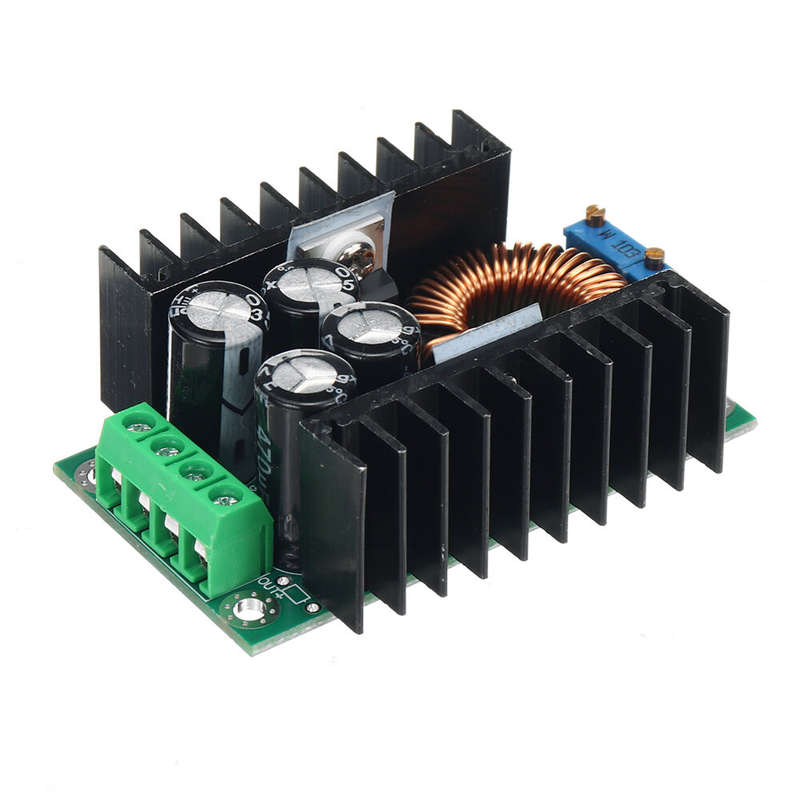

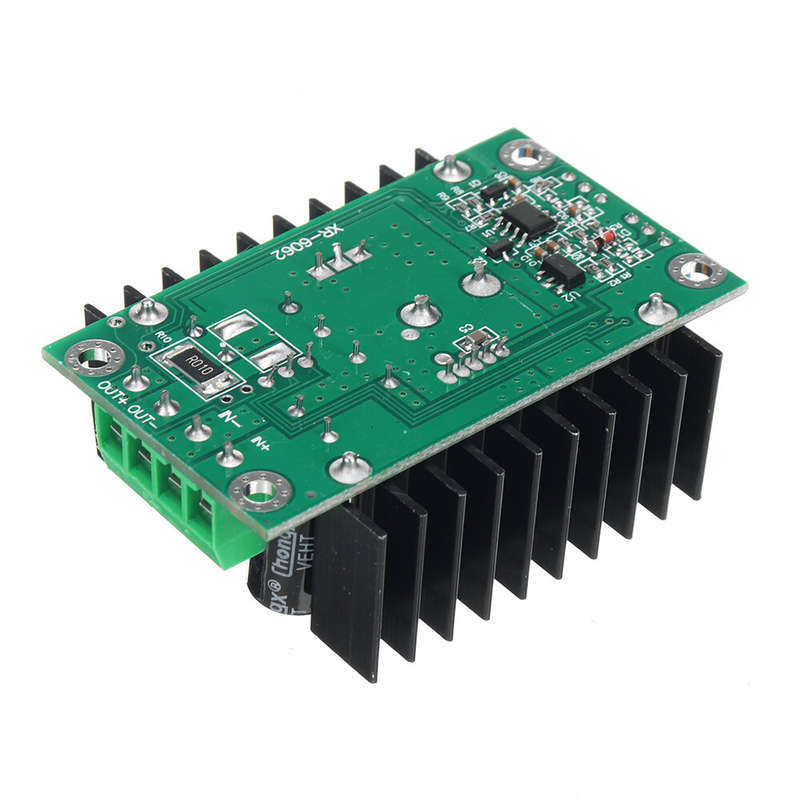

1. Module properties: Non-isolated step-down constant current, constant voltage module (CC CV) charging module
2. Input voltage: DC 7-32V
3. Output voltage: (1) DC 0.8-28V continuously adjustable. (2) Fixed output:Choose between 0.8v-28v
4. Output Current: 8A (when power tube's temperature exceeds 65 degrees, please add cooling fan)
5. Constant current range: 0.2-8A ( adjustable )
6. Turn lamp current: Constant current value * ( 0.1 ) , turn the lamp current and constant value linkage,
such as constant current value is 3A, turn the lamp current is set to a constant current is 0.1 times (0.1 * 3A = 0.3A).
7. Lowest pressure: 1V
8. Output Power: Maximum power is about 300W
9. Conversion efficiency: Up to about 95%
10. Operating frequency: 300KHZ
11. Output ripple: 20M bandwidth
12. Input 24V output 12V 5A ripple ar
