DC Female Power Plug 5.5mm x 2.5mm Panel Mount Connector 3 Pin LOCAL STOCK

Name: DC Female Power Plug 5.5mm x 2.5mm Panel Mount Connector 3 Pin **LOCAL STOCK**
SKU: CON169M
Price: 12.00 ZAR
Availability: InStock

16 available / new

R12.00

Add to watchlist Watch

Shipping

Free shipping is available from Diy Select - Cape Town for all orders above R2,000.00, using one of our trusted couriers.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Diy Select - Cape Town8469

100.00 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Product details

Condition

New

Location

South Africa

Product code

CON169M

Bob Shop ID

643111817

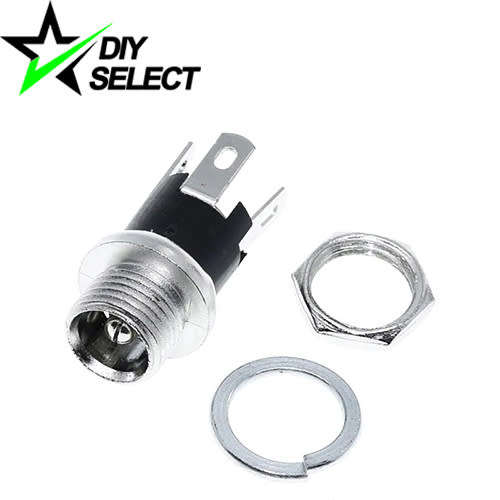

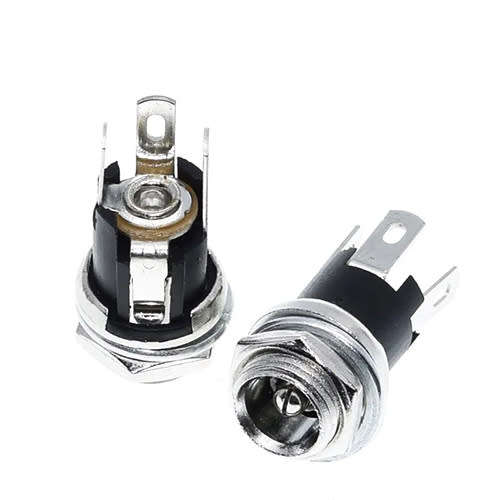

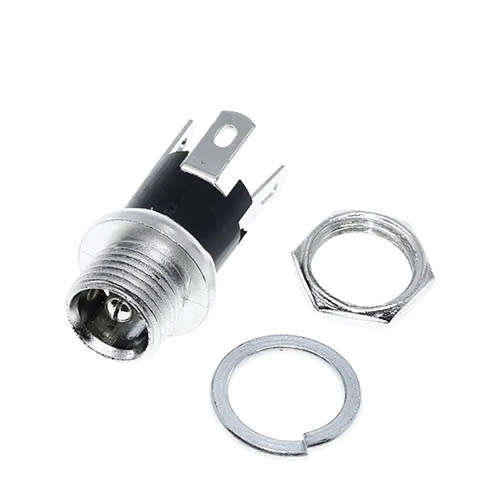

Connector 5.5mm x 2.5mm Female Panel Mount Plug 3Pin:

Specifications:

Connector Size: 2.5mm x 5.5mm
Size: 20 x 12 x 12mm

Features:

3 pin terminal type
Fitting hole of 7.8mm required.
Complete with rear fixing locking nut
It will take 3.2mm push on connectors or solder fit
Requires total clearance behind panel of 13mm

* When soldering the wires to the pins of the panel mount female, no more than 1 to 1.5 seconds soldering time should be applied to avoid excessive heat which can cause the inner contact plates to move, warp or melt the plastic.
