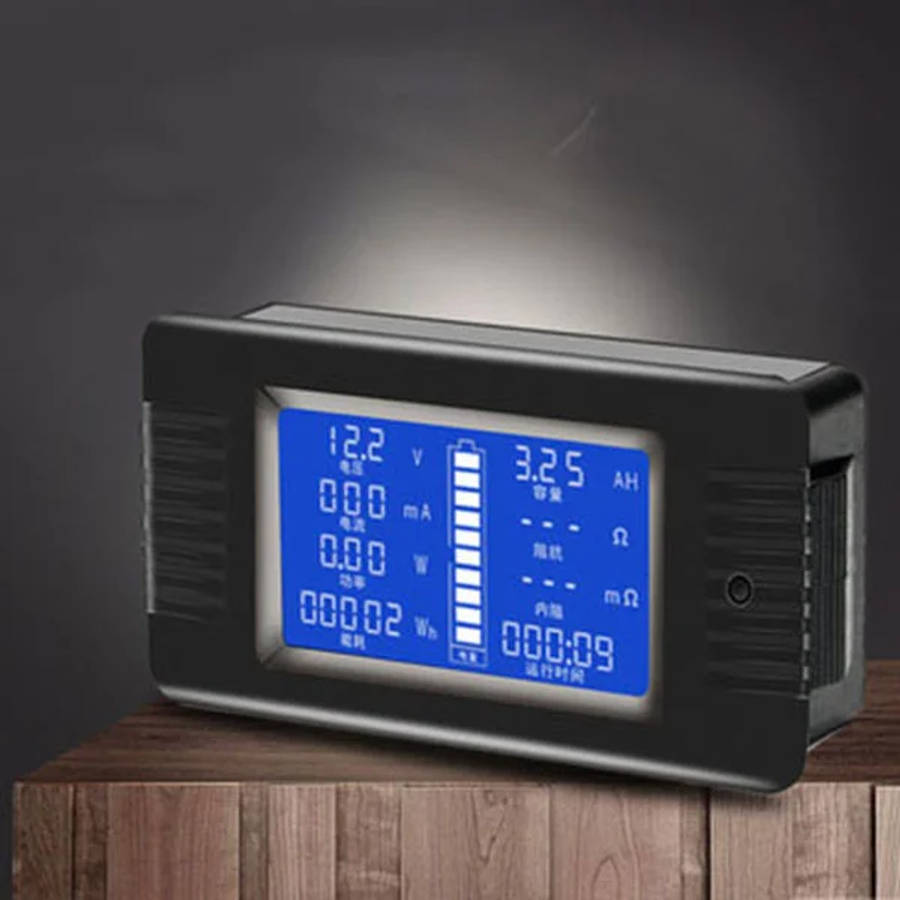

DC Multifunction Battery Monitor Meter LCD Display Digital Current Voltage Solar Power Meter

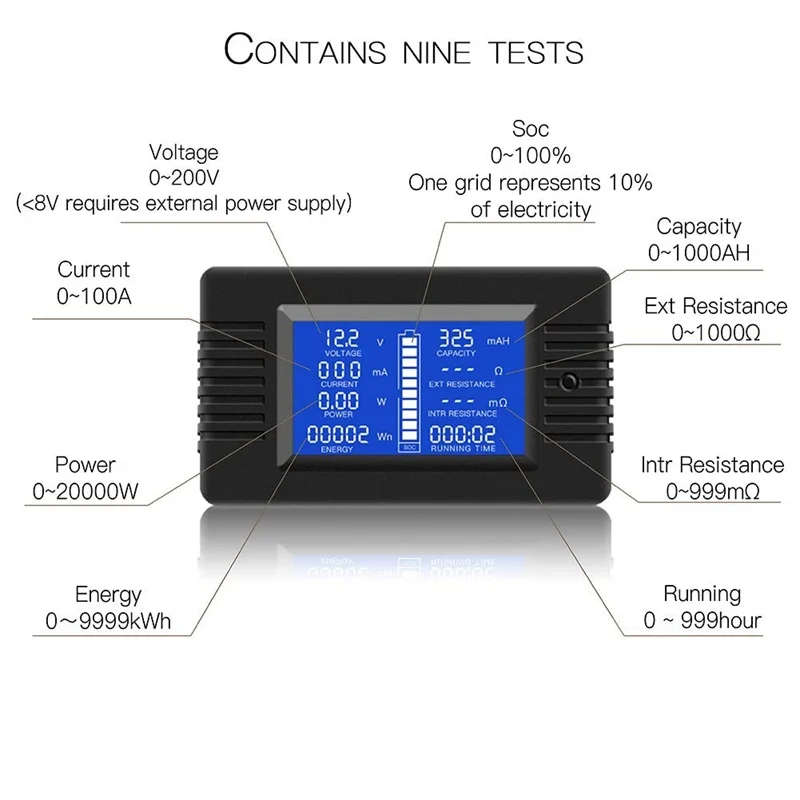

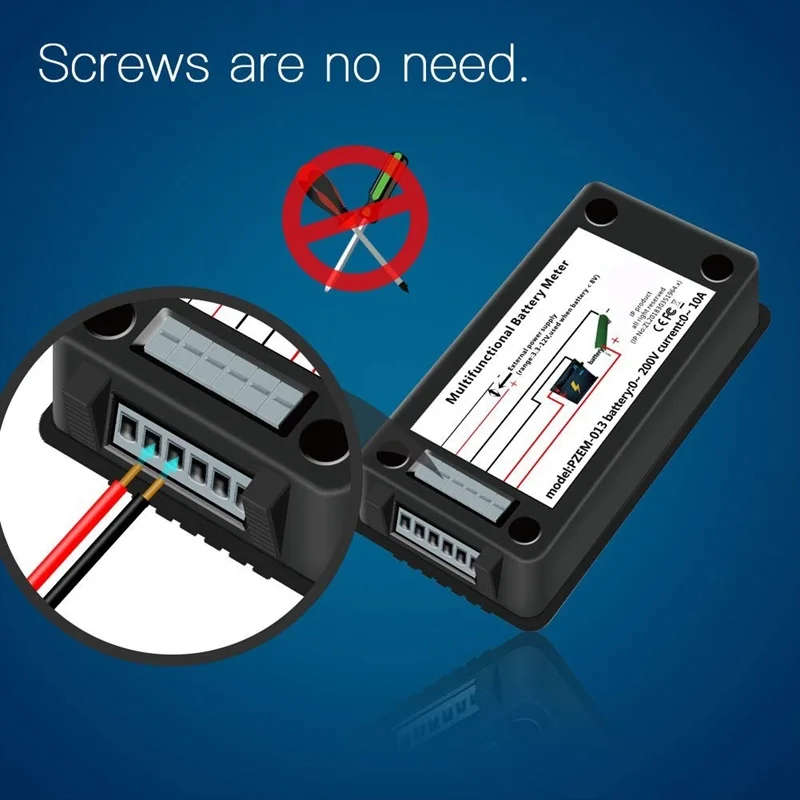

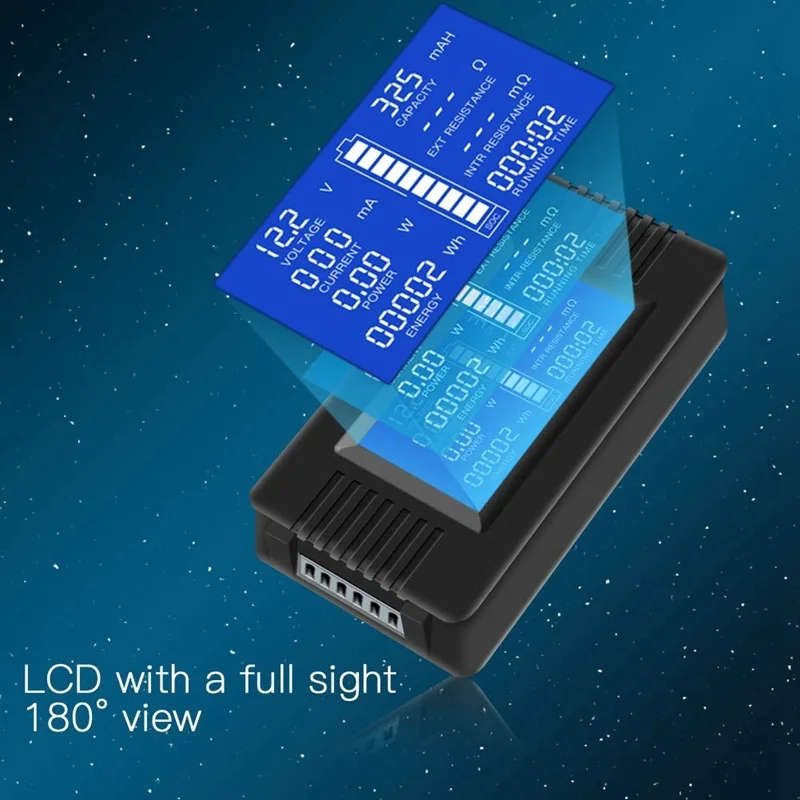

1.9 in 1 Measuring Type/Range: Voltage 0-200V, Current 0-100A, Power 0-20000W, Impedance 0-1000ohm, Internal Resistance 0-999mohm, Capacity 0-1000AH, Dump energy 0~9999kWh, Running time 0-999 Hour. 2.LCD Display: Large-screen LCD with a full sight of 180degree view, The blue backlight can be turned on/off manually. 3.Two modes: normal display mode and dormant mode. 4.No screws design: Push-on terminal, no need to connect with a screw. 5.Wildly application: DC multifunction battery meter wildly applied to solar system/industrial assembly line/Automobile/RV etc. Description: Size:DC 100A Battery Meter(100A Shunt) A. Main Function Electrical parameter measurement function (voltage, current, power, impedance, internal resistance, capacity, dump energy, accumulate energy consumption, running time) B. Appearance and Key function Display interface is large-screen LCD, it can display eight parameters at the same time. 1.Power: Measuring range: 0-20000W, Starting measure power: 0.2W 2.Impedance: Measuring range: 0-1000 ohm 3.Voltage: Measuring range: 0-200V. (when the test voltage is Less than 8V, please use the independent power supply mode) 4.Current: Measuring range: 0-100A. The starting test current: 20mA 5. Internal resistance: Measuring range: 0-999m ohm 6.Capacity: Measuring range: 0-1000AH 7.dump energy:Dump energy is display via the battery symbol, totally 10 grids, every grid present 10% energy. 8. accumulate energy consumption: 1 Measuring range: 0~9999kWh Note: 1Wh=0.001kWh=0.001 Kilowatt 9. Running time:Measuring range: 0 ~ 999 hour (without load the time will not accumulate) Specification: Measuring range: 0-200V Type: DC 100A Battery Meter (100A Shunt) Power supply voltage 3.3-12V Battery type: universal Uses: battery tester colour:Black Material:ABS size:90*50*25mm Package Contents: 1 * Detector 1 * 100A Shunt Only the above package content, other products are not included. Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
