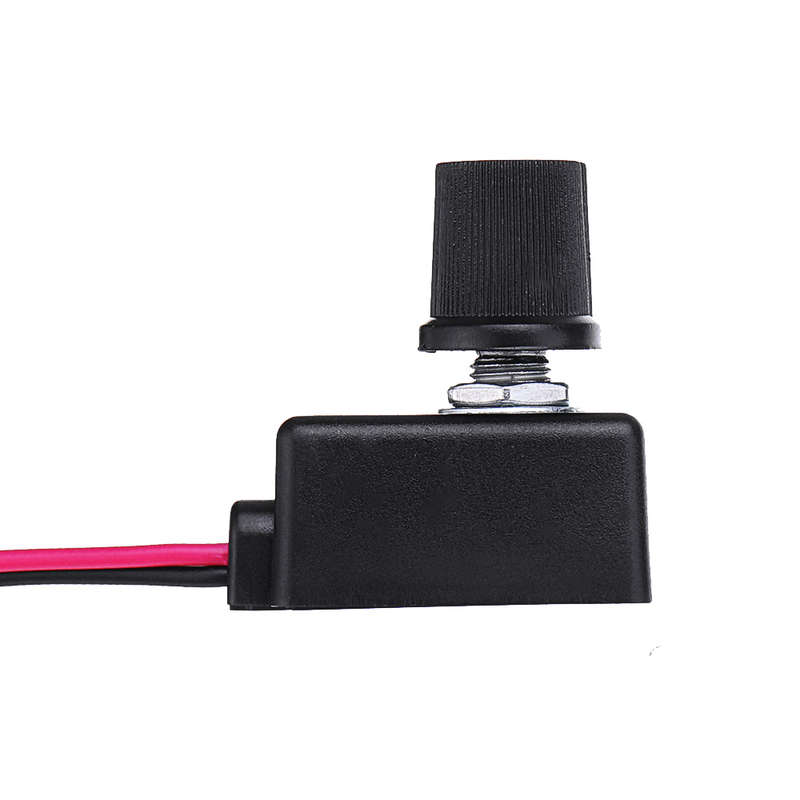

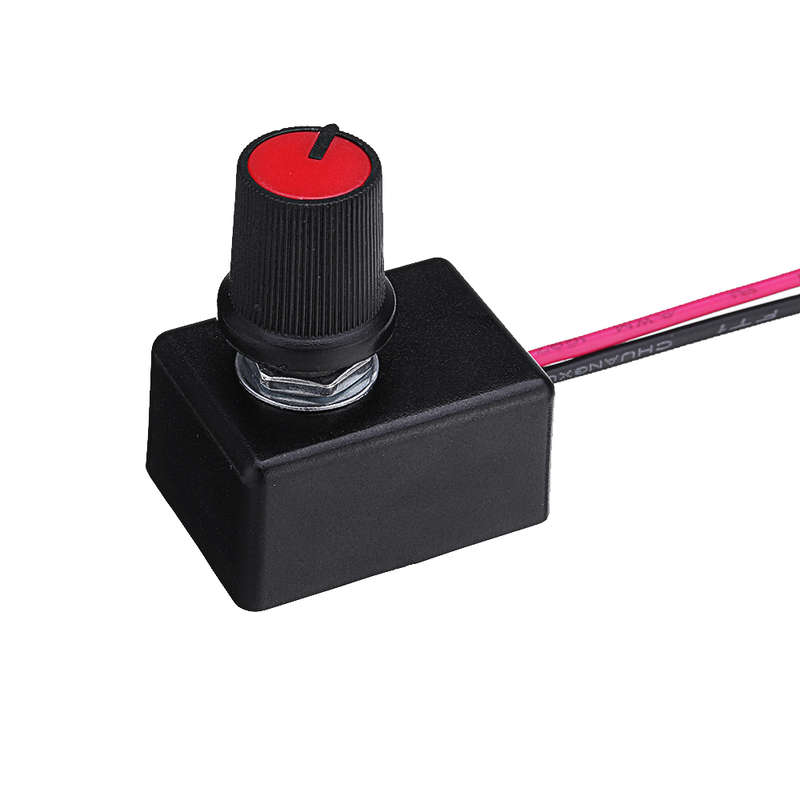

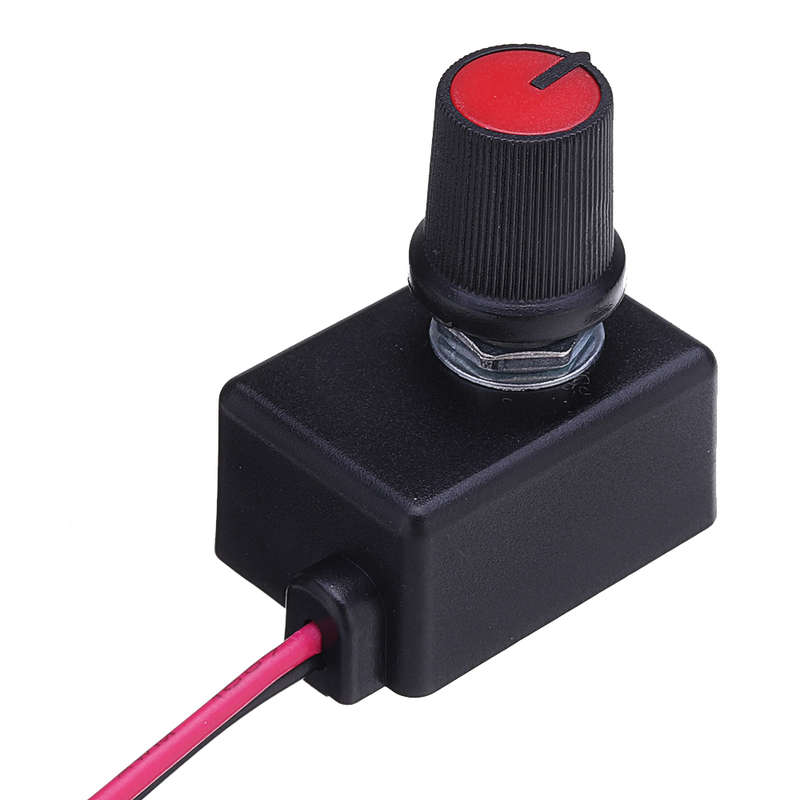

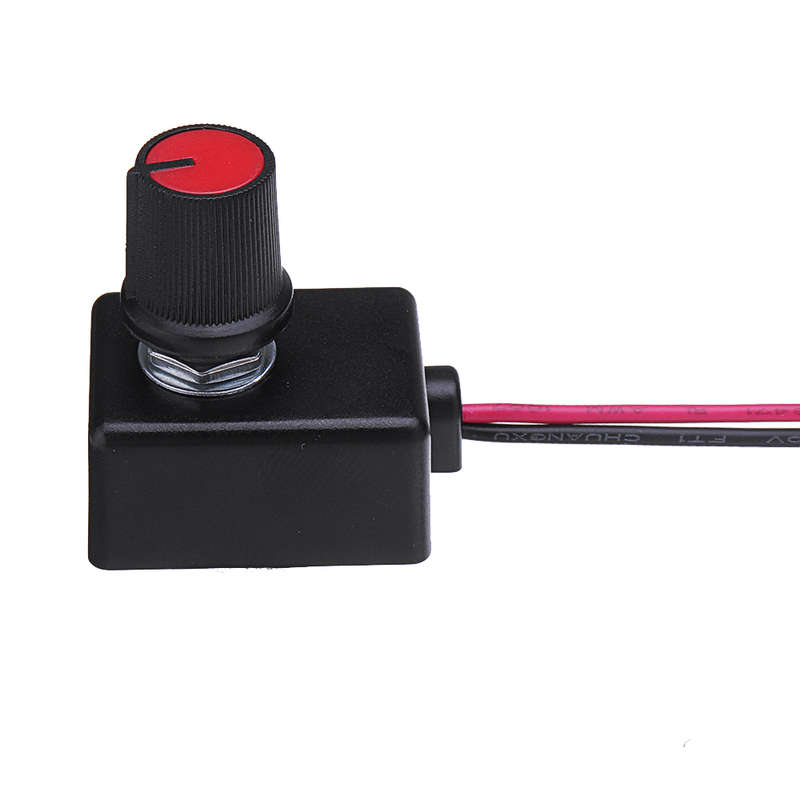

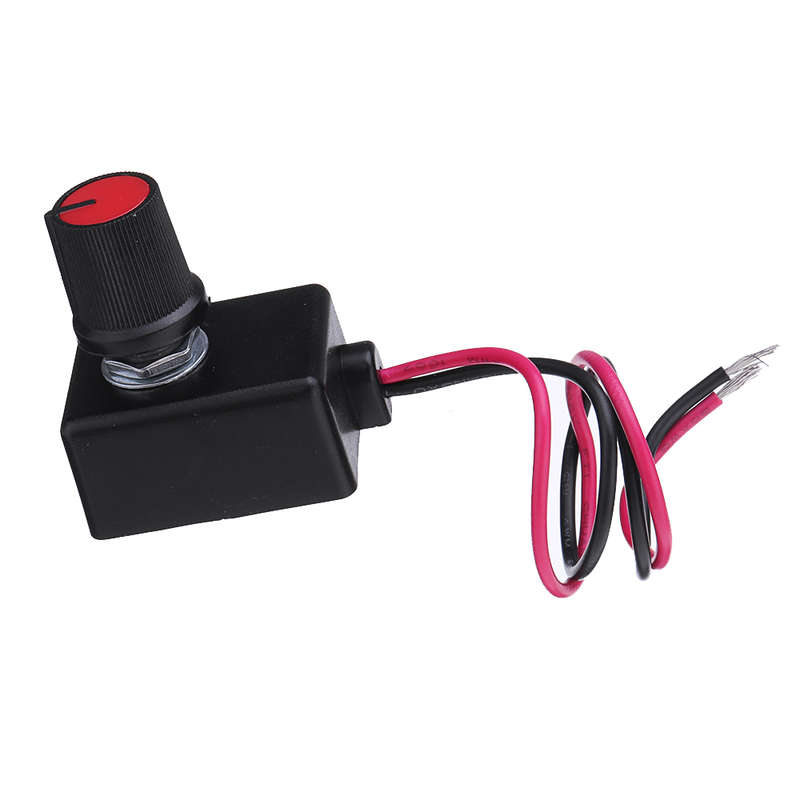

DC0/1-10V 40mA Dimmer Light Switch LED Driver for Lighting Product

20 available / new

R477.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3466

93.51 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

641121225

Specification:
Input voltage: DC0-10V
Output current: 40mA
Working temperature: -10a-40a
Working humidity: 20%-90% RH non-condensing
Storage temperature, humidity: -20a-80a, 10%-90% RH

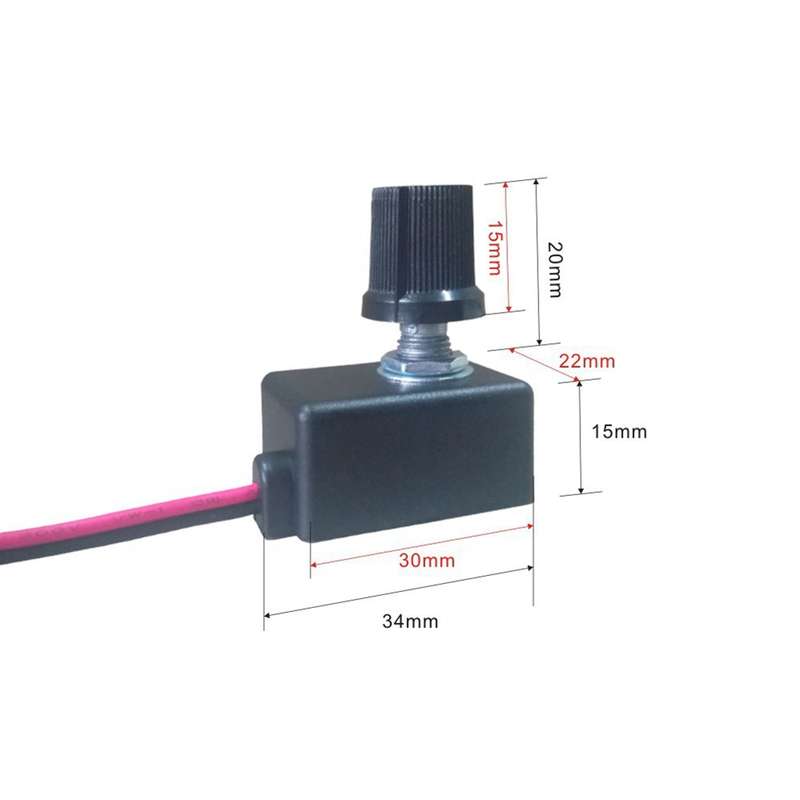

Dimension: 32*20*35.5mm

Feature:
The installation must be carried out by electrical specialist in accordance with international and national standards.
The max. load connected to the drive is 10V/40mA
Designed for 1-10V regulating and compatible all 0/1-10V interface dimmable electronic LED driver and power dimmers.
Place the driver away from direct heat sources and in well-already spaces. If the driver is built-in, sufficient ventilation must be ensured.
Min. output connect cable size is 20AWG, max. output cable length: 50m.

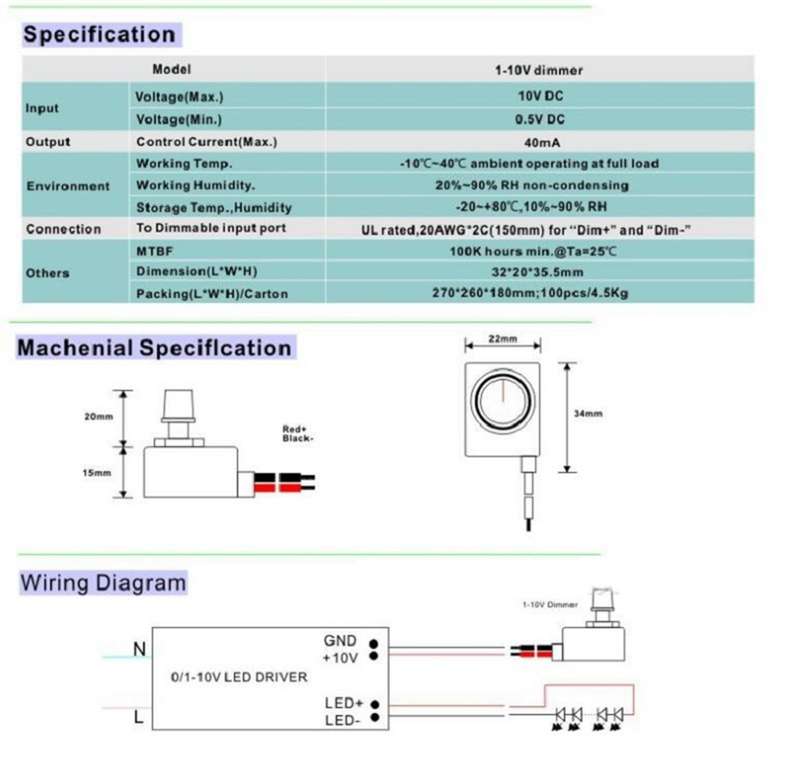

When connecting the electronis LED driver&ballasts and power dimmer, careful attention should be paid to connecting + and - as showing as the below wiring diagram.

Package included:
1* 0/1-10V led dimmer driver
