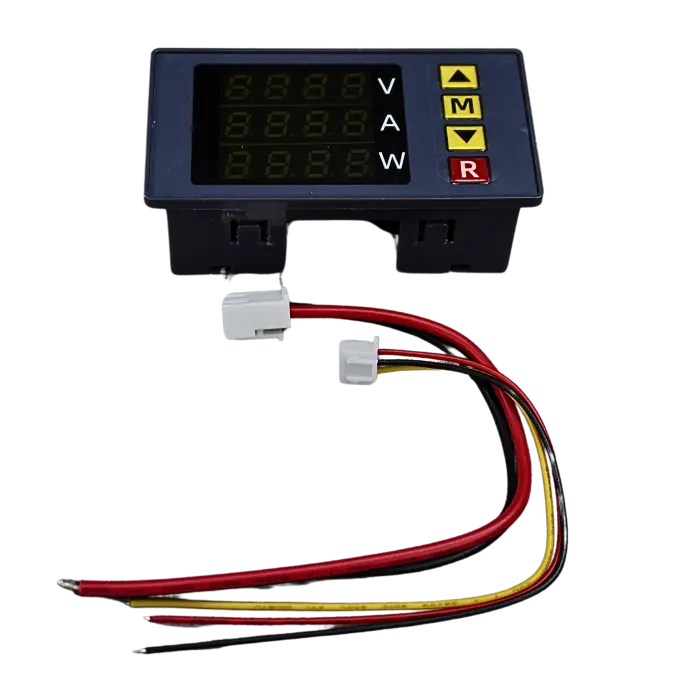

DC0-100V 10A LCD Display Digital Voltmeter Ammeter Wattmeter
This is a Panel Meter that measures Voltages and currents. The display has been designed by Deek-Robot and can measure voltages from 0v to 100v dc and measure current from 0 to 10 Amps. The display has 3 segments and can simultaneously calculate the power consumption in watts.
Technical specifications:
Display: 0.28" LED number
Working voltage: DC 8~24V
Measuring voltage: DC 0.000~100.0V
Measuring current: DC 0.000~9.999A
Measuring power: DC 0.000W~1000W
Refresh rate: 300ms/time
Measurement accuracy: 1% (1 bit)
Working current: <30mA
Working temperature: -10 to 65 C
Operating humidity: 10 to 80% (non-condensing)
Product size: 79.3mmx42.25x 24.38mm
Mounting hole: 72.0mm x 39.0mm
Product weight: 38g
Pin layout:
