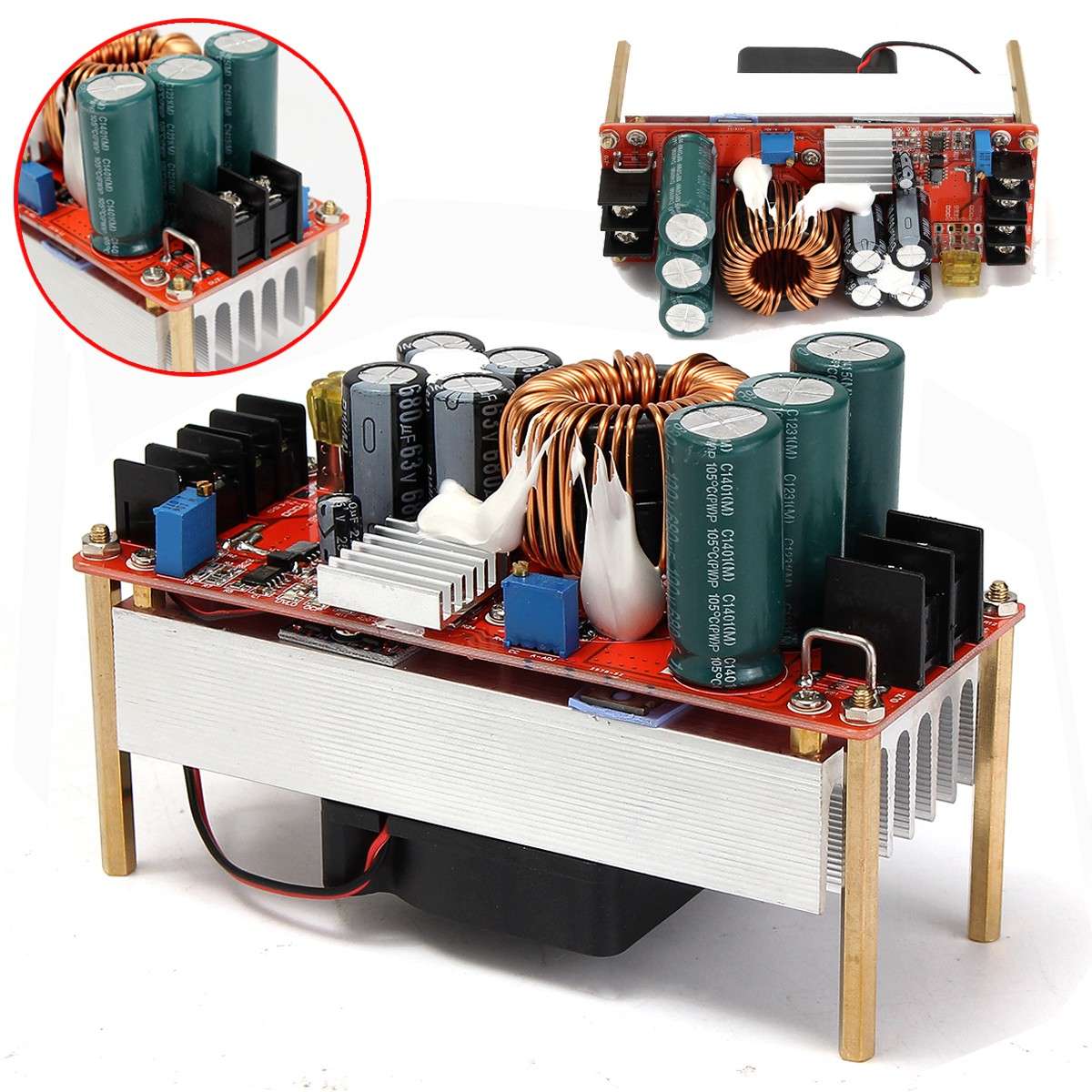

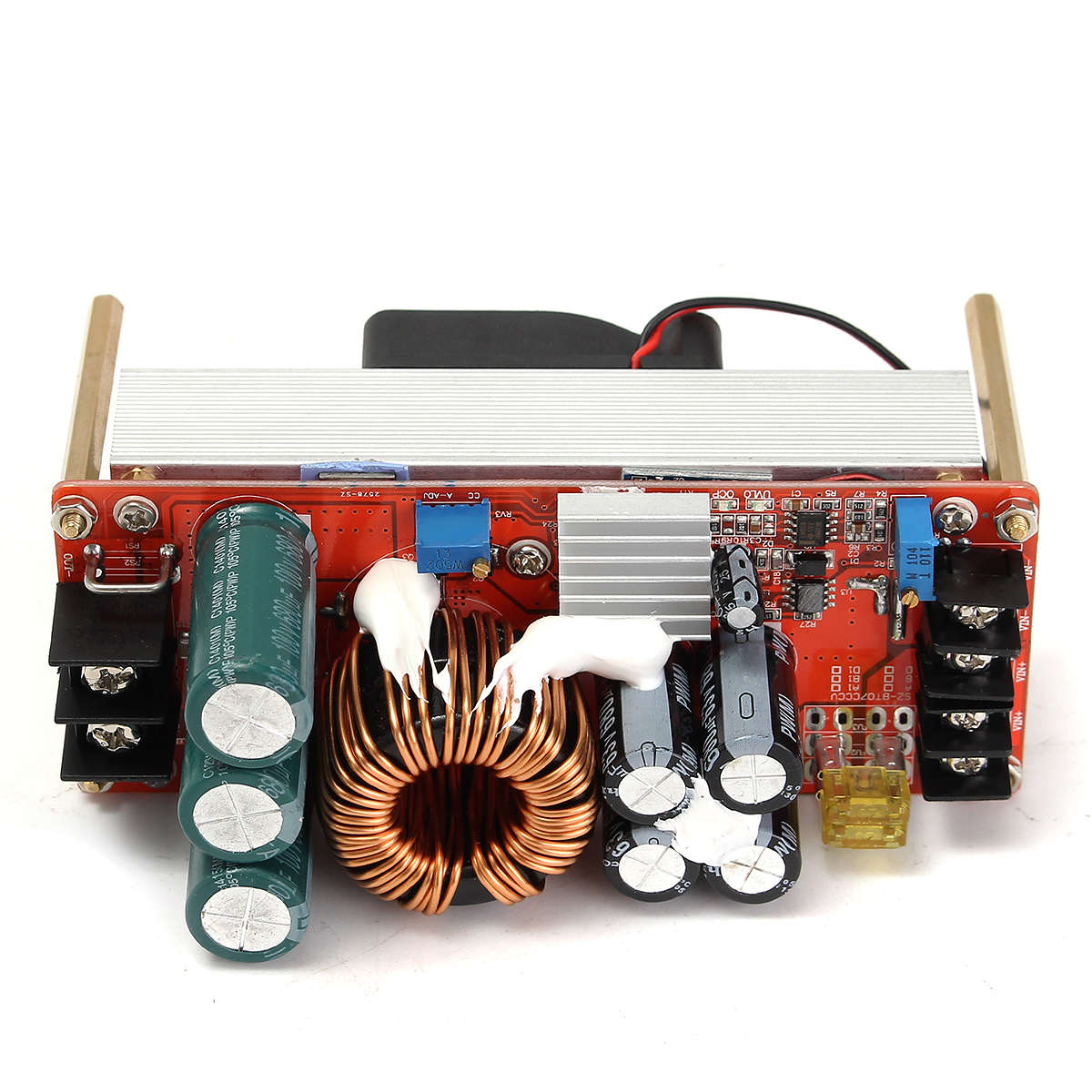

DC10-60V 30A 1500W To 12-90V Boost Converter Step Up Power Supply Module

Description:

Module properties: non-isolated step-up module (BOOST)
Input voltage: DC 10V~60V
Input current: 10~30V input voltage, maximum current 30A
31~60V input voltage, maximum current 25A
Quiescent current: 15 mA (12V liter 20V, the output voltage, the higher the current will increase too quiet)
Output voltage: 12~90V continuously adjustable
Constant] range: 0.8~20A (±0.3A)
Temperature: -40~ + 85℃(ambient temperature is too high, please enhance heat dissipation)
Operating frequency: 150 KHz
Conversion efficiency: 92% ~ 97%
Low battery protection: yes
Input reverse polarity protection: yes
Enter the anti-reverse protection: yes
Short circuit protection: yes
Installation: 4 x 3 mm screw holes

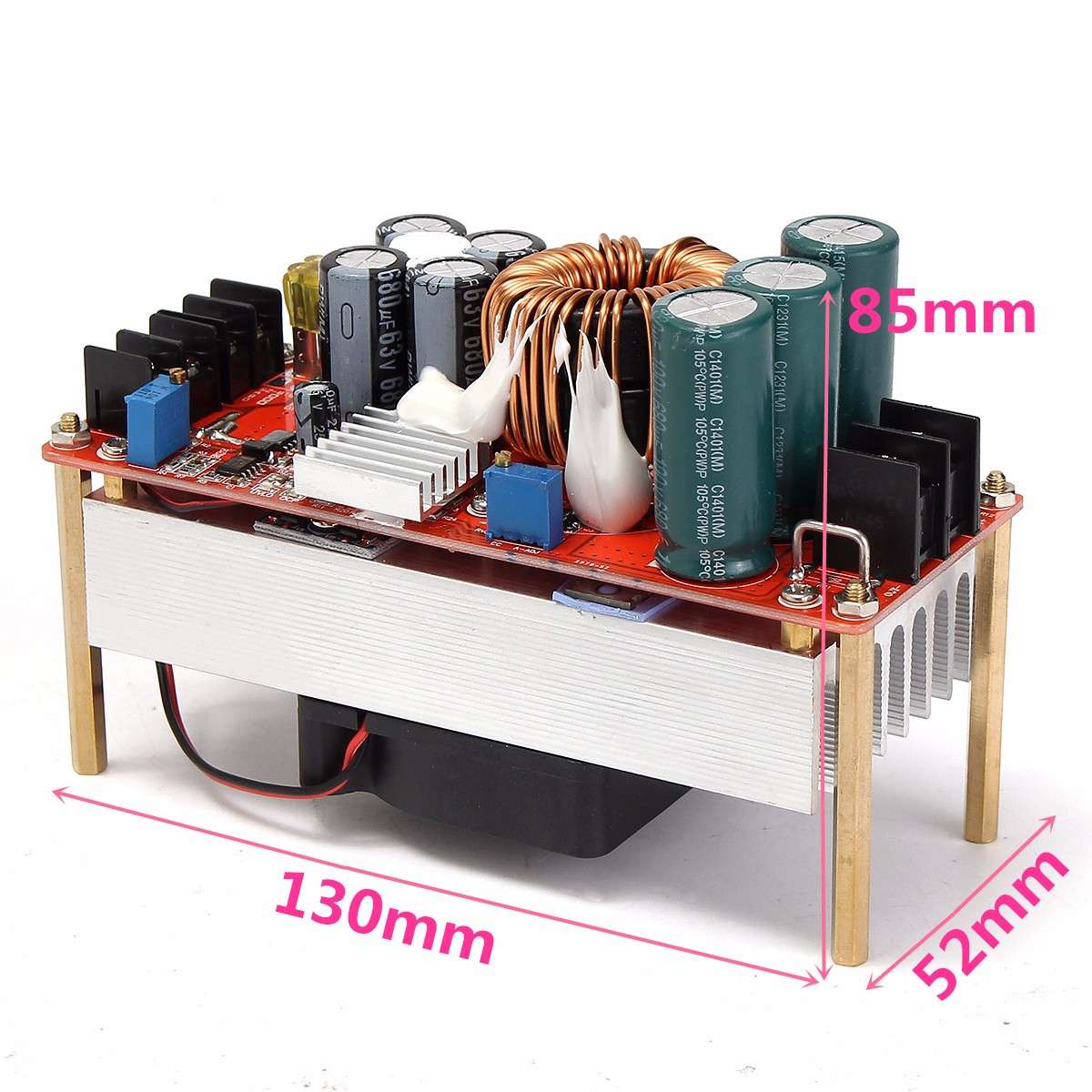

Module size(L*W*H): 130 x 52 x 85 mm

Applications:

1. DIY a power supply, 12V can input and output can 12-50V adjustable.
2. The power supply for your electronic device, according to your system can set the output
3. As the car power supply for your laptop, PDA or a variety of digital products supply.
4. DIY a mobile notebook power supply: 12V coupled with high-capacity lithium battery pack, so you can go where light where books.
5. Solar panel regulator.
6. To the battery, rechargeable lithium batteries.

Features:

1. Thickening of the radiator and intelligent temperature control cooling fan.
2. Have input MOS meter protection, don't worry about input after burn out the power supply.
3. When used in battery input low battery protection avoid battery discharge damage power supply module and a battery.

Package included:

1 x Boost Constant Current Module
