DC12-24V TPA3116D2 2.1 Channel Digital Subwoofer Power Amplifier Board
New
5 were available
R281.26
0% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable. Check my rate
The seller has indicated that they will usually have this item
ready to ship within 15 business days.
Shipping time depends on your delivery address.
The most accurate delivery time will be calculated at checkout,
but in general, the following shipping times apply:

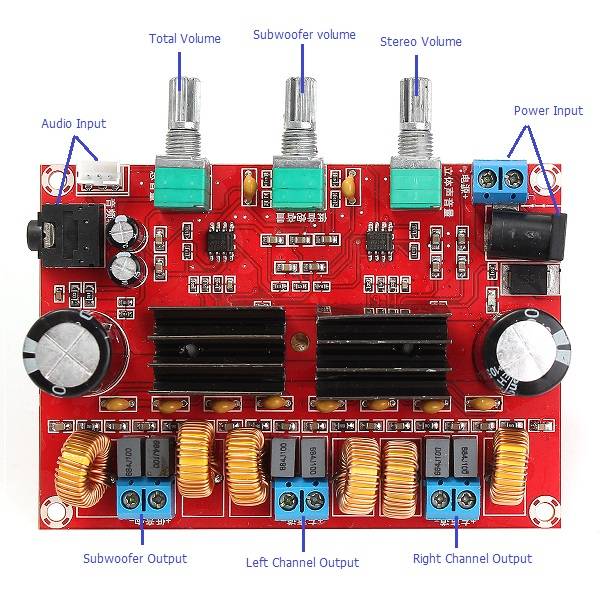

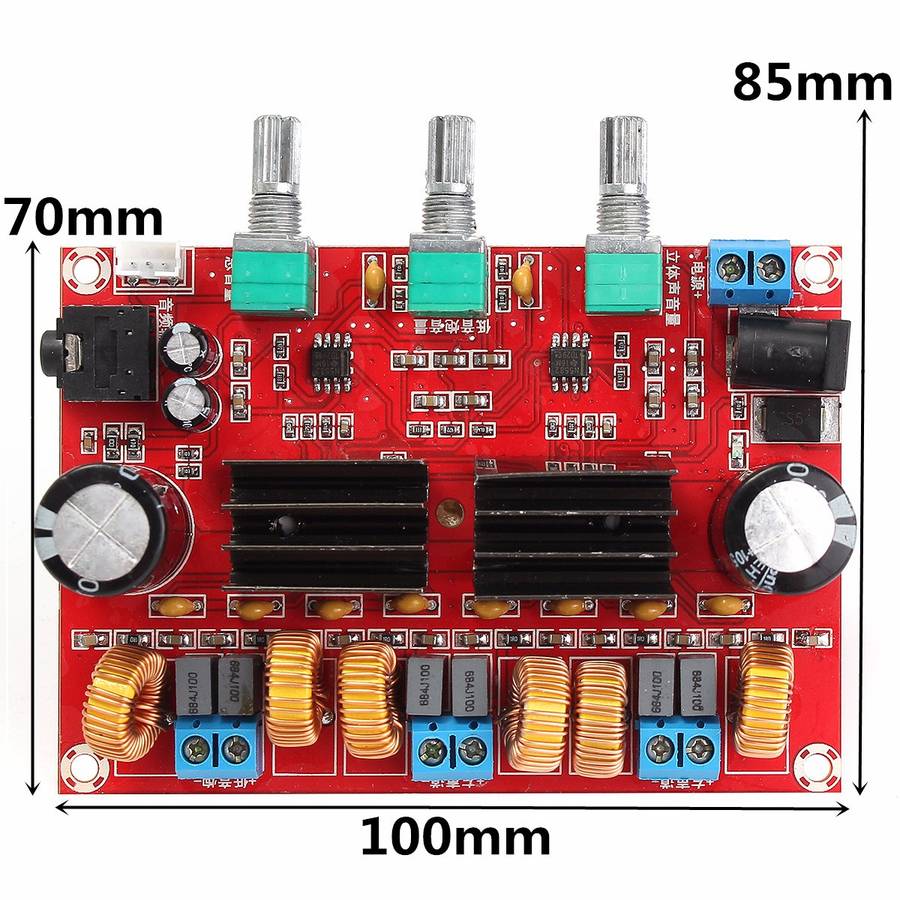

Chip Type: TPA3116X2 Supply Voltage: DC 12~24 V Channel Type: 3 Channels(Left Channel, Right Channel, Subwoofer) Output Power: 50W*2 + 100W*1 Subwoofer Output Match: 4~8 ohm Audio Output: Terminals SNR: 100dB Frequency Response Range: 14~20KHz Switching Frequency: 1.2 MHz PCB Board Size(L*W*H): 100 x 70 x 25 mm
Features:
1. Powered by DC 12-24 V, wide input voltage. 2. Adopts two high quality TPA3116D2 digital amplifier chips. 3. Sound quality is very good, high efficiency and amplifying power. 4. Just connect the power supply and loudspeaker box, enjoy the pure digital music. 5. User can adjust the volume by themselves easily.Applicable speaker impedance: 4-8 ohm. 6. 50W*2+100W 2.1 channels(left/right channel and subwoofer channel), high efficiency and low-heat.
Package included:

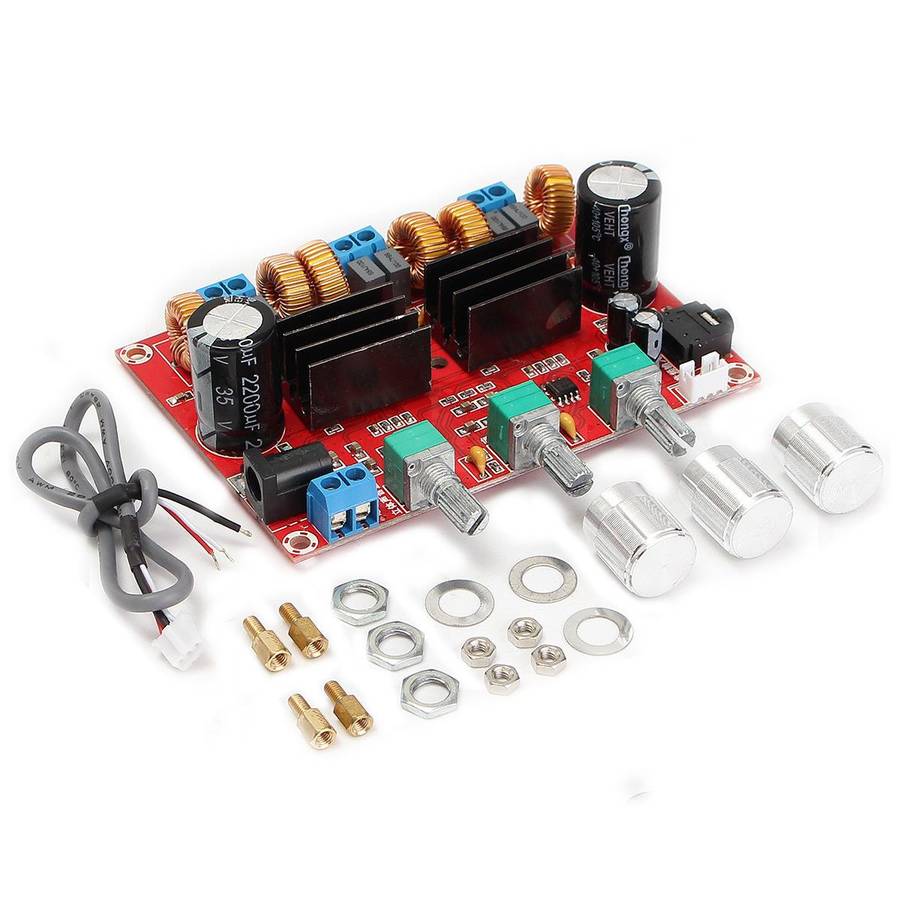

1 x 2.1 Channel Audio Amplifier Board 3 x Volume Knob 1 x Input line 1 x Fittings
