Package weight: 0.03 kgSpecifications:

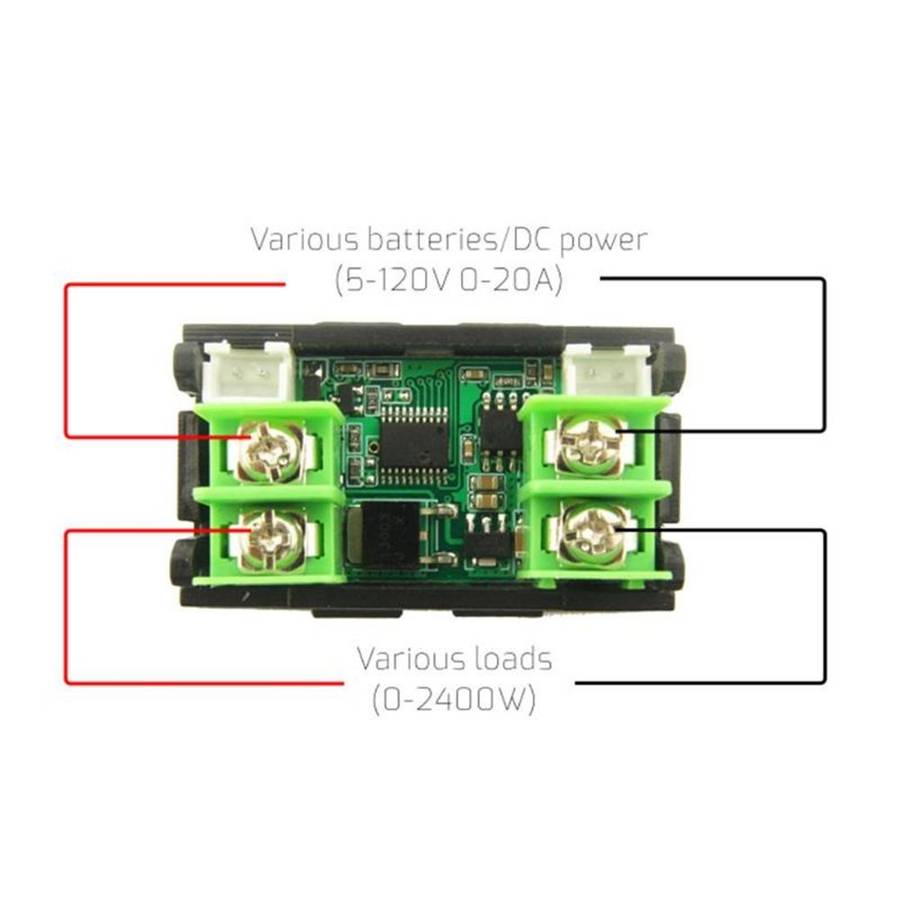

Input / output interface: 20 A high current screw
Voltage range: 0.00 V~120 V,Resolution accuracy: 0.05 V.
Current range: 0.00 A~20 A,Resolution accuracy: 0.05 A.
Capacity range: 0~999.99 Ah, resolution accuracy: 0.01 Ah
Power accumulation range: 0~9999.9 Wh, resolution accuracy: 0.01 Wh
Power range: 000.00~2400 W ,resolution accuracy: 0.01 W
Impedance range: 1~999.9 ,resolution accuracy: 0.1
Temperature range: 0~99°C ,Resolution accuracy: 1°C
The longest time: 999H59M59S ,resolution accuracy: 1S
Time reminder setting: count down any value for 24 hours
Small current standby alarm threshold parameter: <2 W / 0.5 H.
Small voltage power requirements: measurement <7.8V
Low voltage, please provide independent power interface

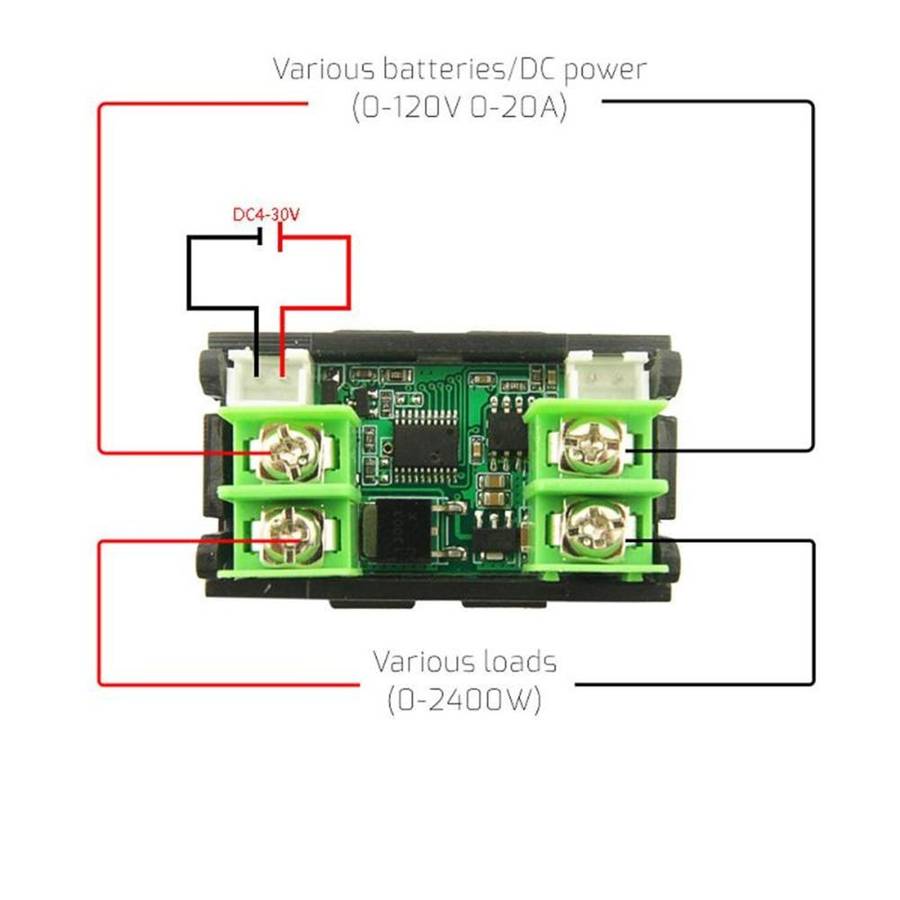

4~30V DC supply voltage range of the measurement system
Refresh time: > 500 ms / hour > 500 ms / time
Measuring speed: 0.5 times per second

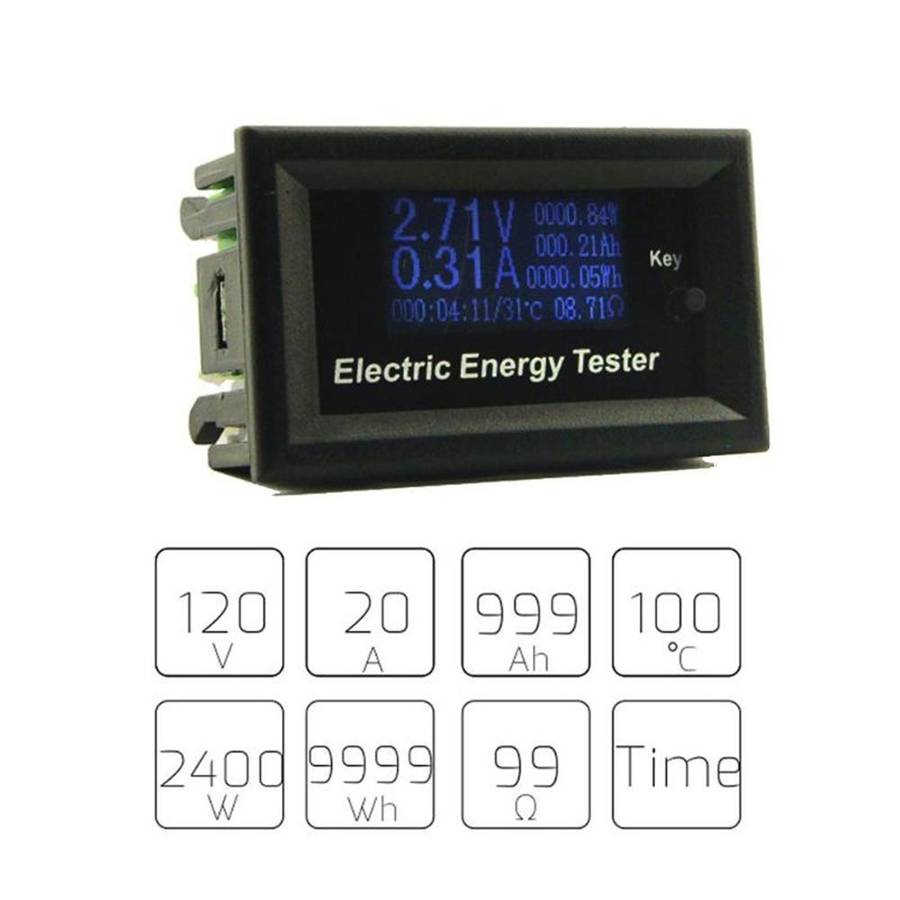

Display Type: Micropower consumption of LCD module LCM black font
Chinese and English green backlit display
Product size: 105 x 81 x 17 mm/4.13 x 3.19 x 0.67"
Due to power flow: <0.02 A
Working temperature: -10¬トテ~+60°C
Working humidity: 10~80 (dew) undoubtedly 10~80 (no doubt)
Working pressure: 80~106 kpa
Package Included:
1 x LCD Current Meters Digital Voltmeter
