Name: DC12V 1CH 315/433MHz Wireless Time Delay Relay RF Remote Control Switch Receiver
SKU: 1150044
Price: 286.22 ZAR
Availability: SoldOut

DC12V 1CH 315/433MHz Wireless Time Delay Relay RF Remote Control Switch Receiver

30 were available / new

Indicative market price: R599.00

R286.22

52% off

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Racer Gadgets10211

99.58 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

International

Product code

1150044

Bob Shop ID

540159155

DC12V 1CH 315/433MHz Wireless Time Delay Relay RF Remote Control Switch Receiver

Package weight: 0.04 kg

Instructions:

Working/output way:
1.Jog/Non-Latched: Press one button is Working /ON. Loosen your finger on the same button is Stop/OFF. One channel switch need one buttons remote control.
2.Self -lock/Self-Latched: Press one button for one time is working/ON. Press the same button again is stop/OFF. One channel switch need one buttons remote control.
3.Inter-lock /Latched: Press one button is working/ON,press another button is stop/OFF. One channel switch need 2 buttons remote control.
Learning :
1. Press the B key once,the LED will go off, press the button of the remote control, the LED of the control panel will blink three times in succession to learn the code successfully.
Operating Mode Description:
1. Set the jog output: Unplug the jumper cap
2. Set to self-lock output: use the short jumper pin on the board to connect "1-2" with the middle pin.
3. Set the interlock output: Connect the "3-4" pin to the middle pin with the jumper cap short pin on the board.
Delay settings:
1, press the button A key once, then press the learning code B key,press once to set the delay time of one second, press the second time to set the delay of two seconds, three times for the set delay time of three seconds, After the completion of the control panel by pressing the A key to confirm the delay time off, this time whether it is jog or self-locking, interlock status is the delay off function.
2, the delay control panel can be set free 1-99 seconds, according to your own needs.
Clear :
Press the learning button on the control panel B key does not let go until the LED indicator flashes to complete, that is automatically clear all the code to learn the remote control.

Specification :
1.Input Voltage: DC12V
2.RF Frequency: 315/433MHZ
3.RF Working mode:Super heterodyne receiver
4.Receiver Sensitivity: -107dBm
5.Remote Control Distance: >100 meter(In open environment)
6.Modulation: ASK
7.Load power: 800W
8.Support remote control type: learning code
9.Channel: 1CH
10.Multiple working modes: (Jog/Non-Latched ,inter-lock/Latched ,self-lock /Self-Latched,Delay)
11.Wiring Method:Fixed wiring terminal
12.Box dimension:6cm*4.5cm*2cm

Package Includes :
1 x12V 1 Channel Wireless Relay Switch

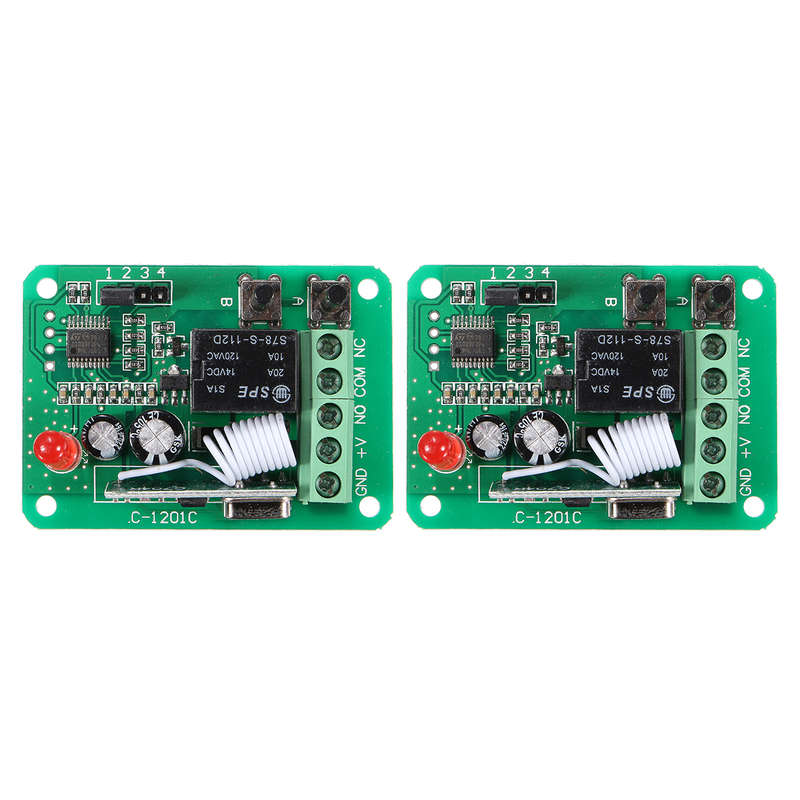

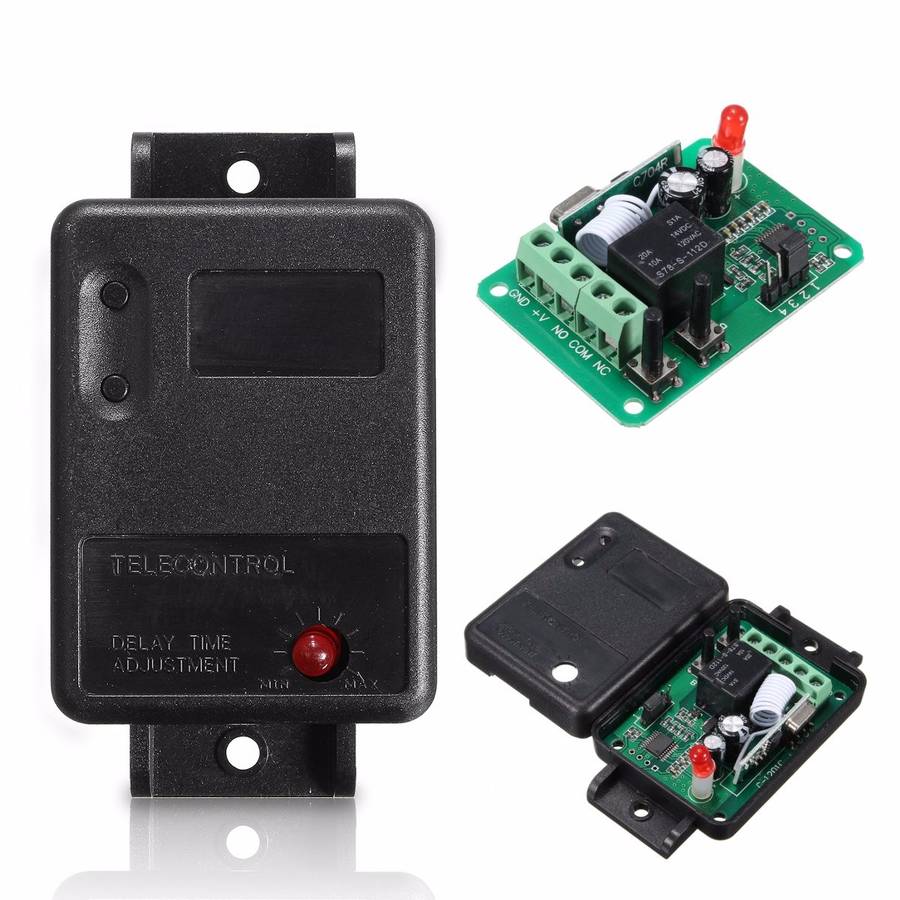

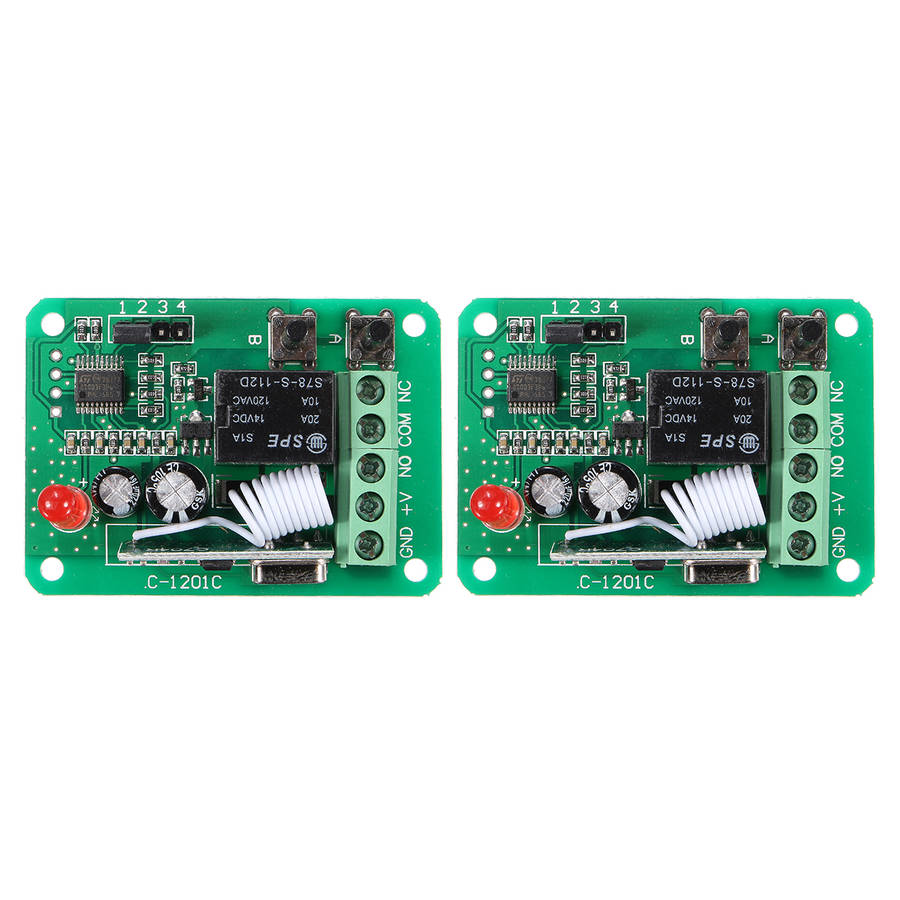

Details Pictures :
