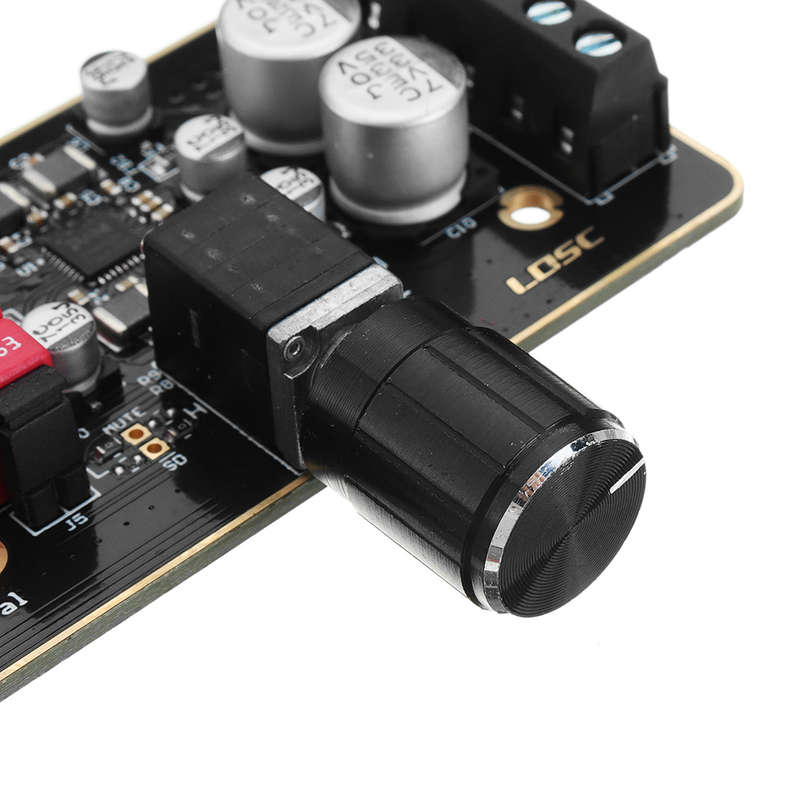

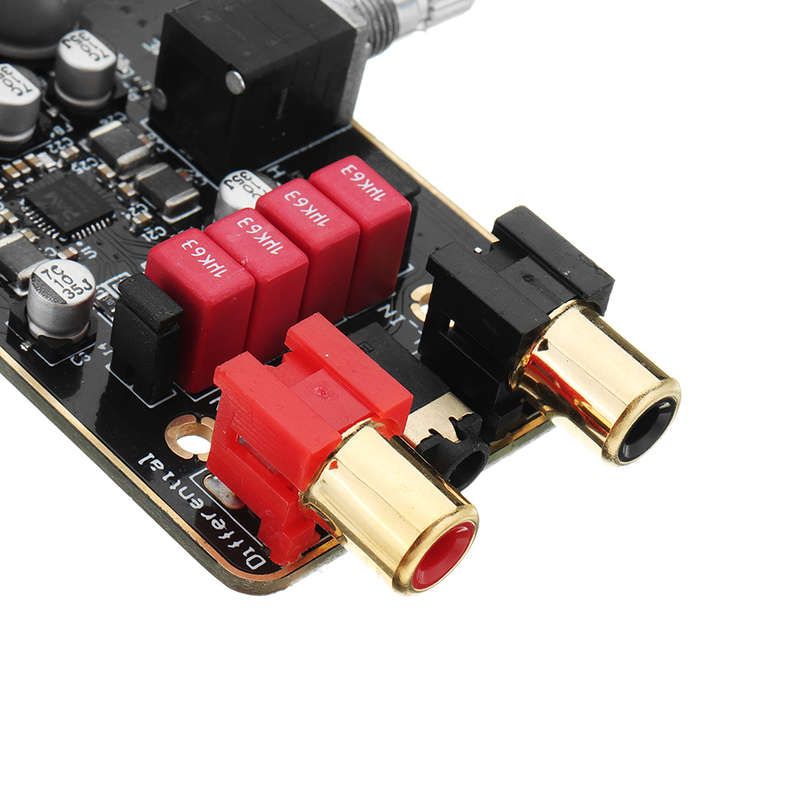

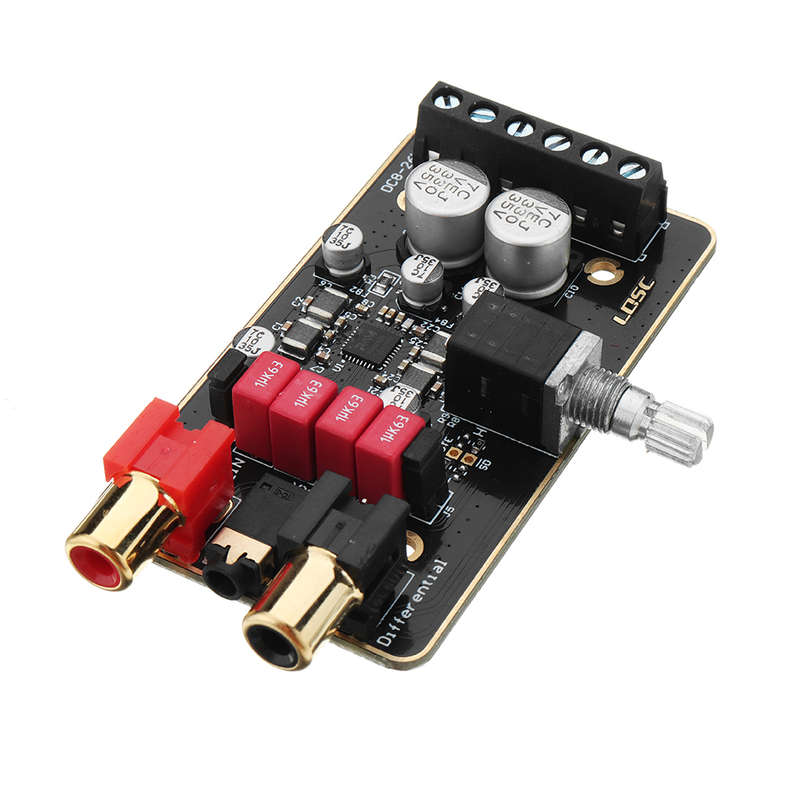

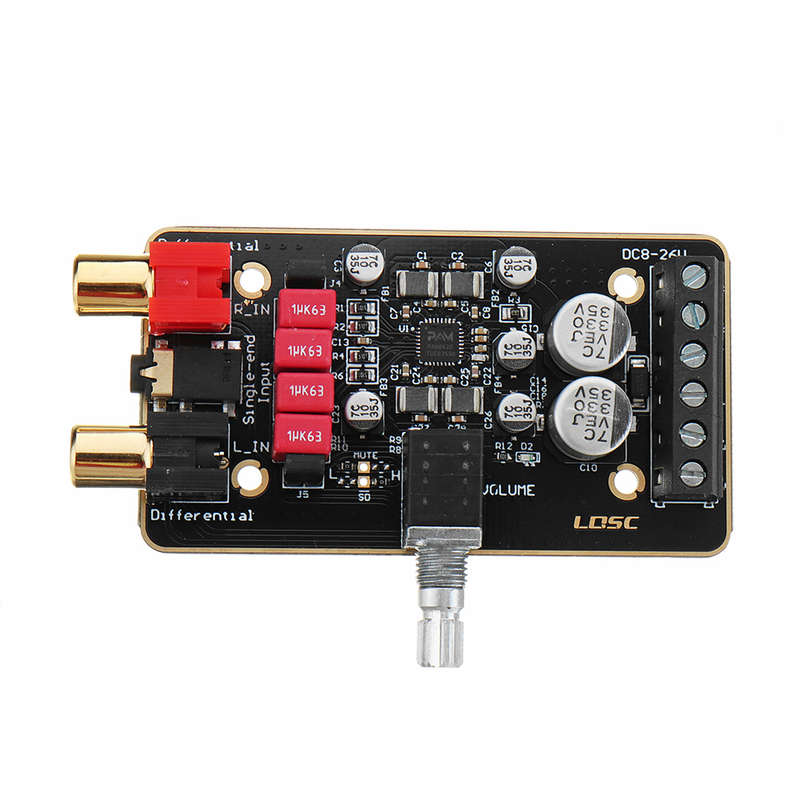

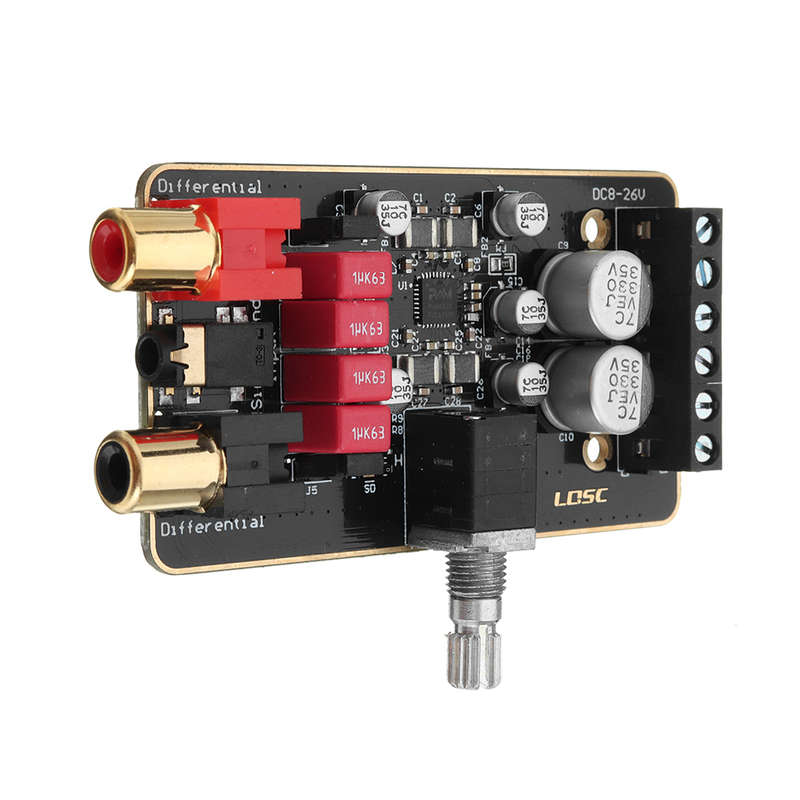

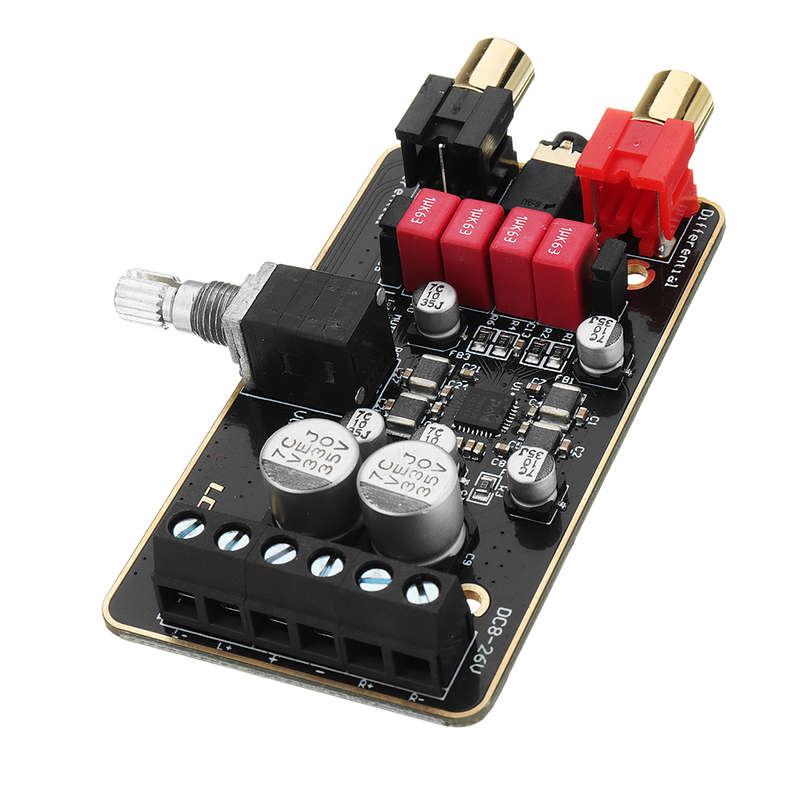

DC12V-24V 15Wx2 Dual Channel Digital Amplifier Board PAM8620 Stereo Class D Amplifier Module

Features: Supply voltage: DC 8-26V (Do not overvoltage, overvoltage will burn IC) Input method: single-ended (factory default) Output power: 15W Stereo (24V 8 Ohm), 10W Stereo (12V 8 Ohm), if connected to 4 Ohm or 2 Ohm speakers,

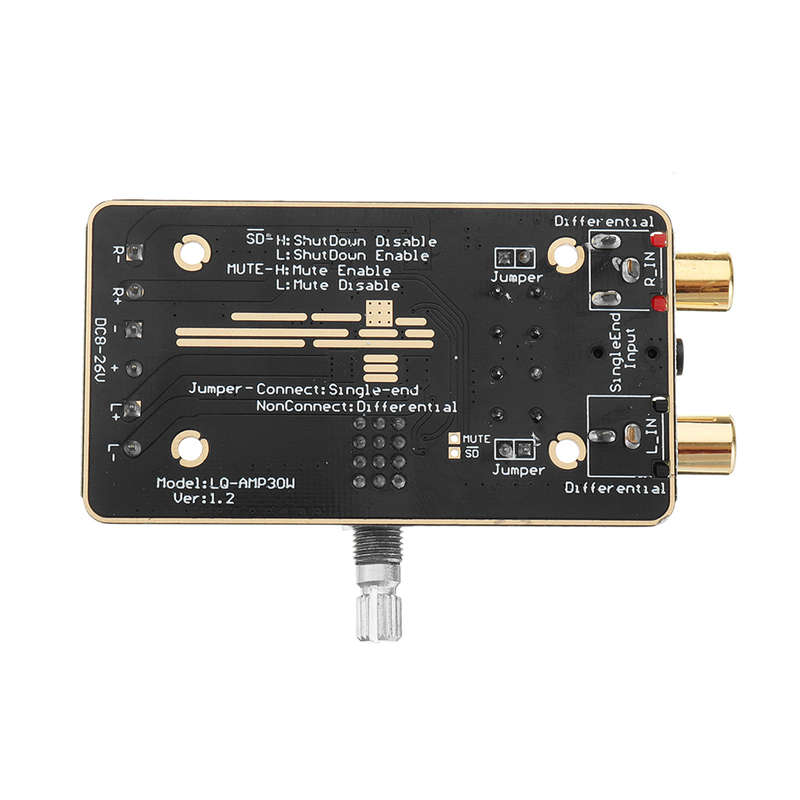

the power will be automatically limited to 15W) Impedance: 8 Difference: Select by jumper Size: 75.69mm*41.96mm Product weight: 35g Performance: Efficiency: >90% Total Harmonic Distortion plus Noise: <0.2% Low quiescent current Noise suppression Protection: reverse power supply input protection, short circuit, over current, overheat, overvoltage, low voltage, over EMI Additional features: External mute function (MUTE: high level mute, factory default low level) External Shutdown Function (SD: Low-Level Chip Shutdown, Factory Default High level)

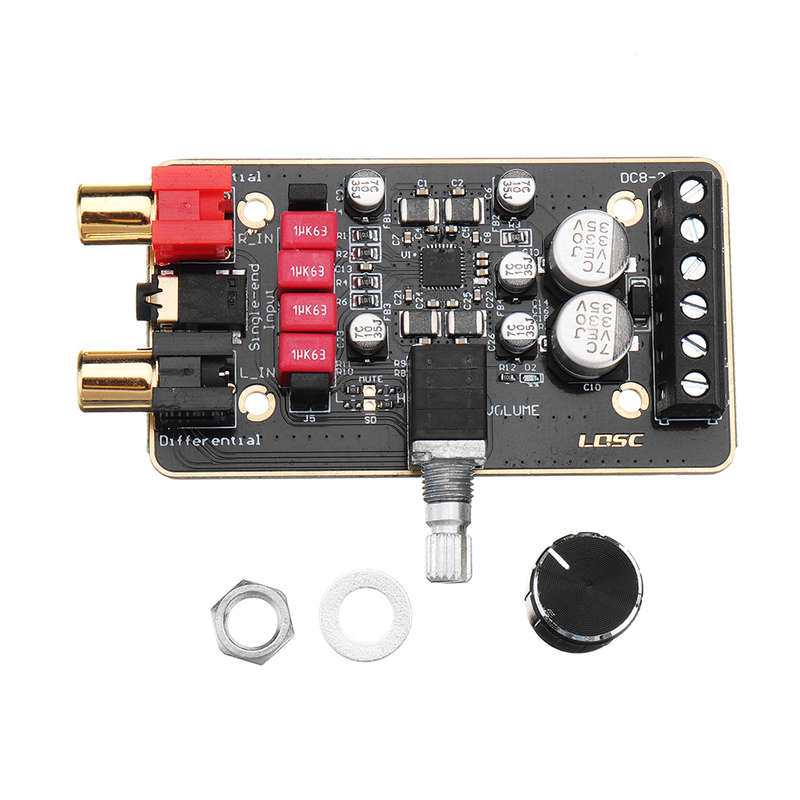

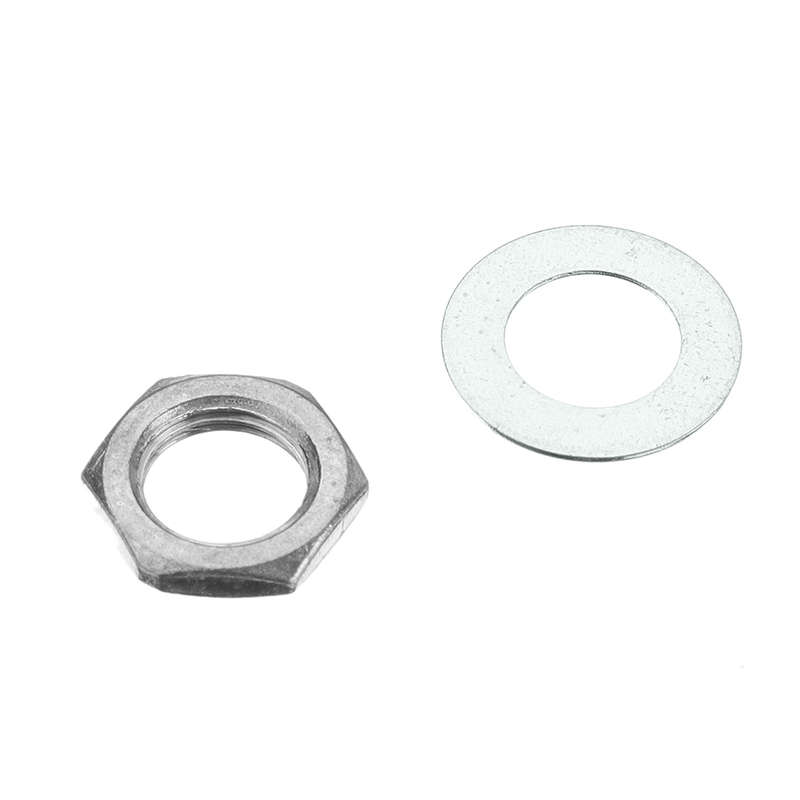

Package included:

1 xDC12V-24V 15Wx2 Dual Channel Digital Amplifier Board
