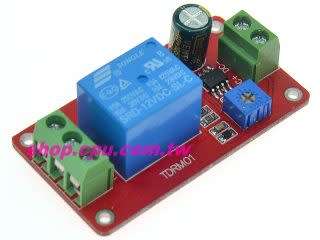

Working voltage: DC12V
Working current
Before the relay is closed: <5mA After the
relay is closed: <50mA
Maximum load
AC: 0250V/10A
DC: 030V/10A
Dimensions: 55(L) x 30(H ) x 18(W)mm
Timer: 0-20 seconds adjustable
Features
1. The relay will not be closed immediately after the power is turned on. When the delay time is up, the relay will be closed. As long as the module is not powered on, the state will always be maintained
. 2. The delay time is adjustable from 1 to 20 seconds
. 3. Can directly control AC or DC load
4. Power indicator (red), 1 relay status indicator (blue)
Instructions for use
1. After power-on, the relay will pull in delay, turn the variable resistor clockwise to increase the delay time ( The delay time is adjustable from 1 to 20 seconds) 2. The
three interfaces of COM, NO and NC are equivalent to a dual-control switch. When the relay coil is energized, COM and NO are connected, and when there is no power, COM and NC are connected.
CONDITION: 10/10
