Specifications:


Measurement accuracy: ±0.1¿

Control precision: 0.1¿

Return difference accuracy: 0.1¿

Refresh rate: 0.5S

High temperature protection: 0-110¿

Input voltage: DC12V

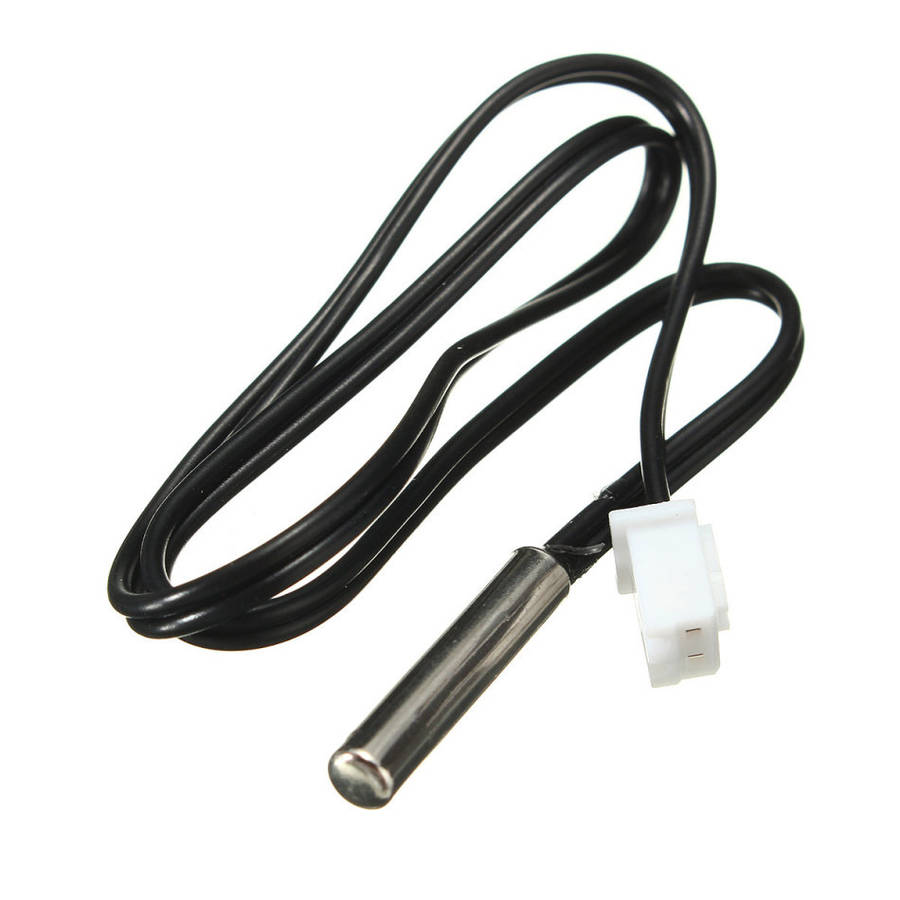

Measurement input: NTC (10K0.5%) waterproof type sensor

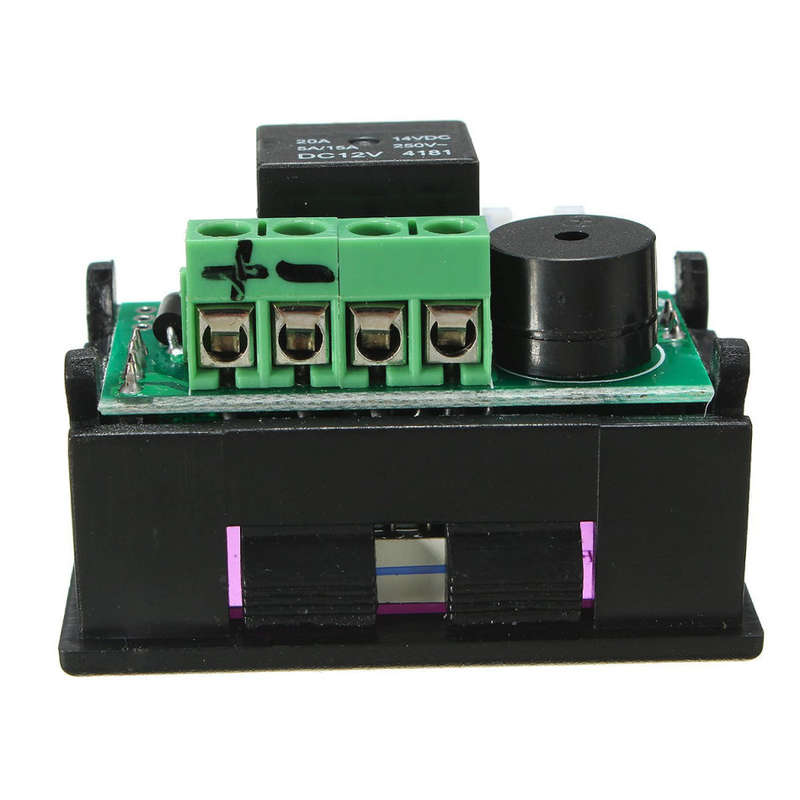

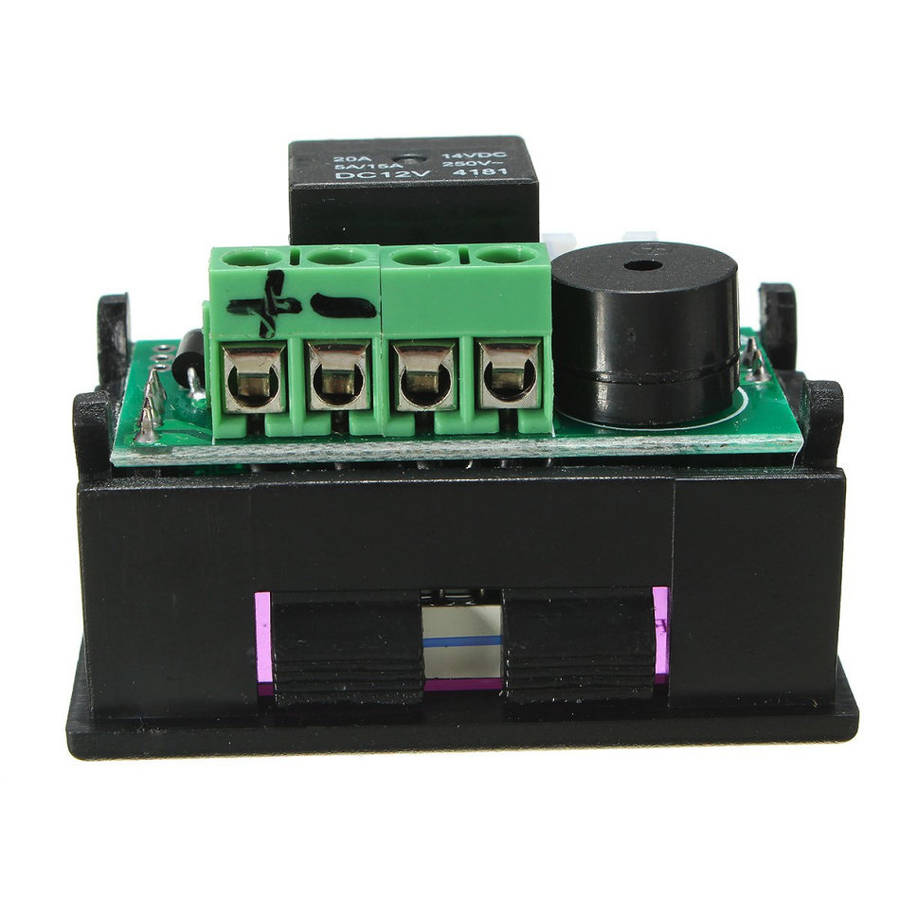

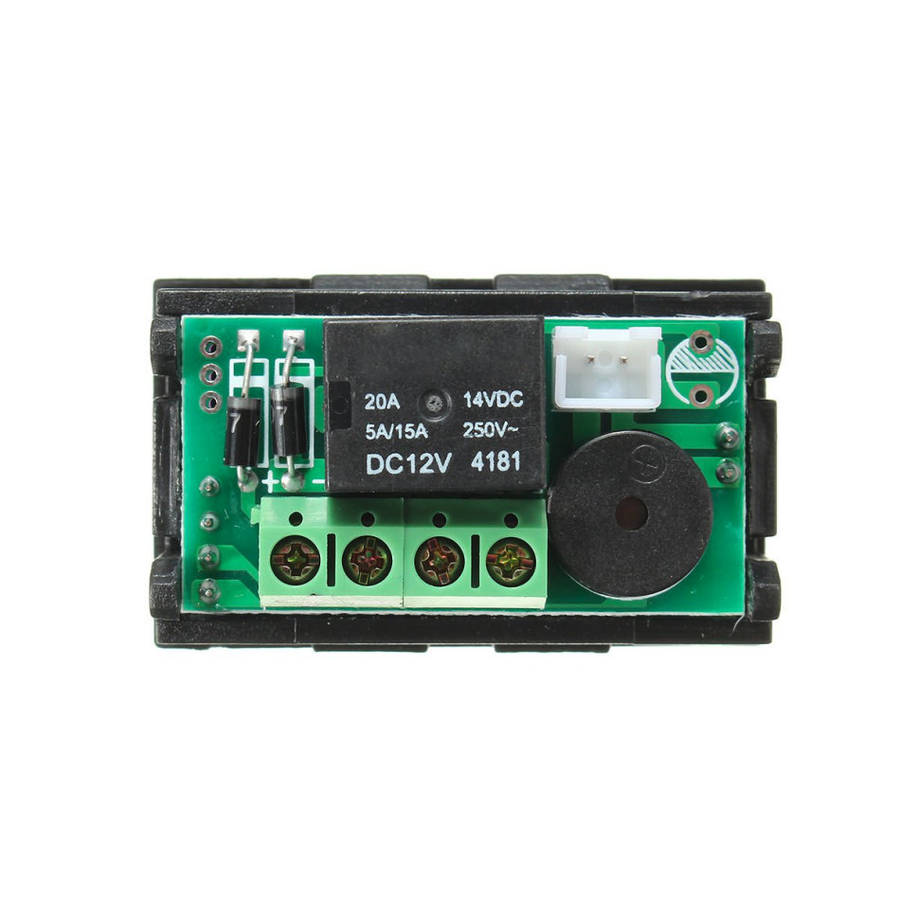

Output: all the way 20A relay


Environmental requirements: -10 to 60¿

Humidity: 20%--85%

Opening dimension: 46*26.5mm

Power consumption:

The quiescent current:≤35MA

operating current: ≤65MA

Power supply: 12V200MA

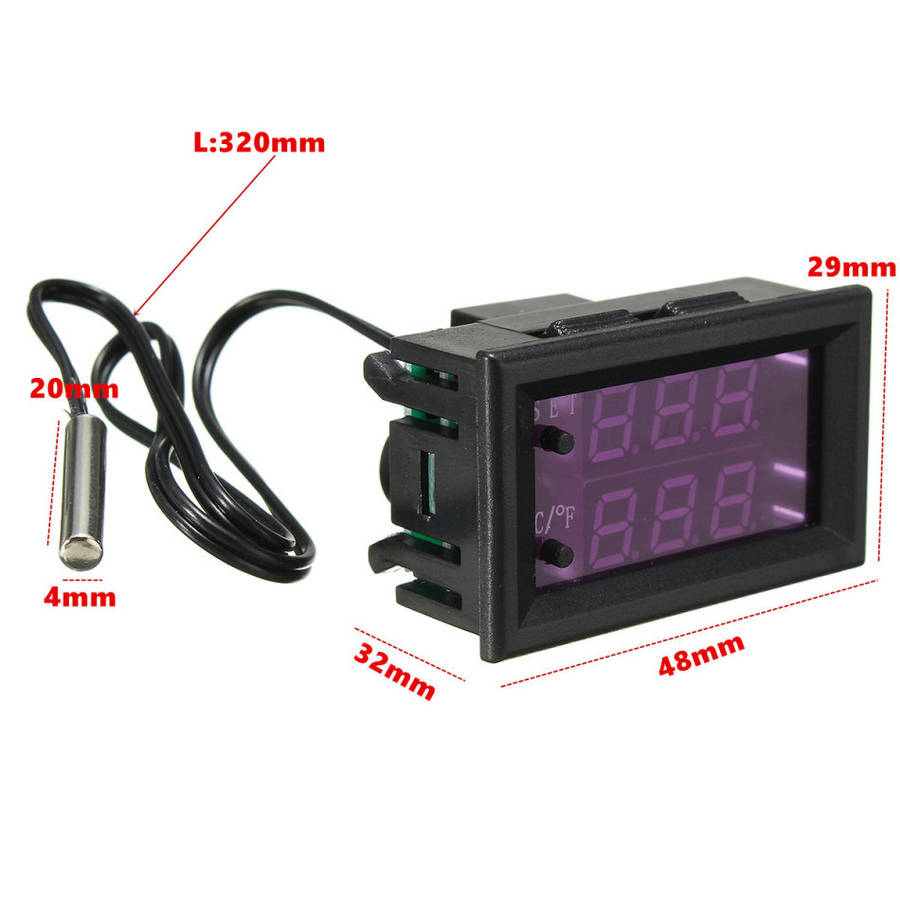

Size: 48 x 32 x 29mm



Method:

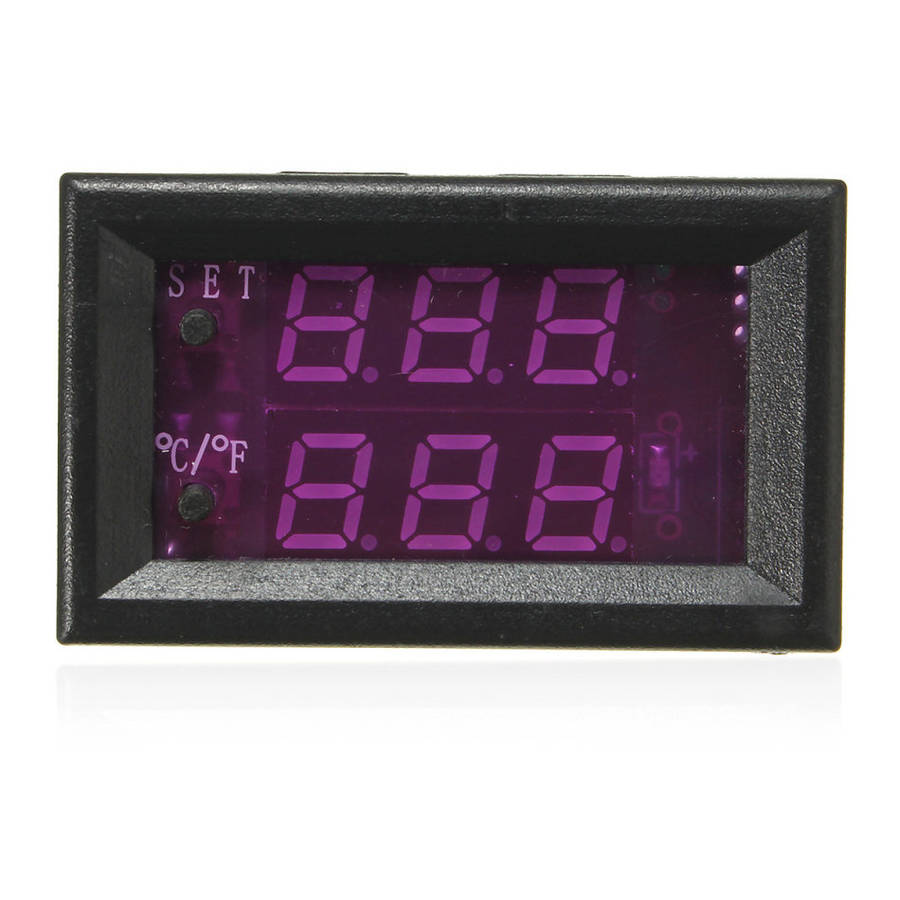

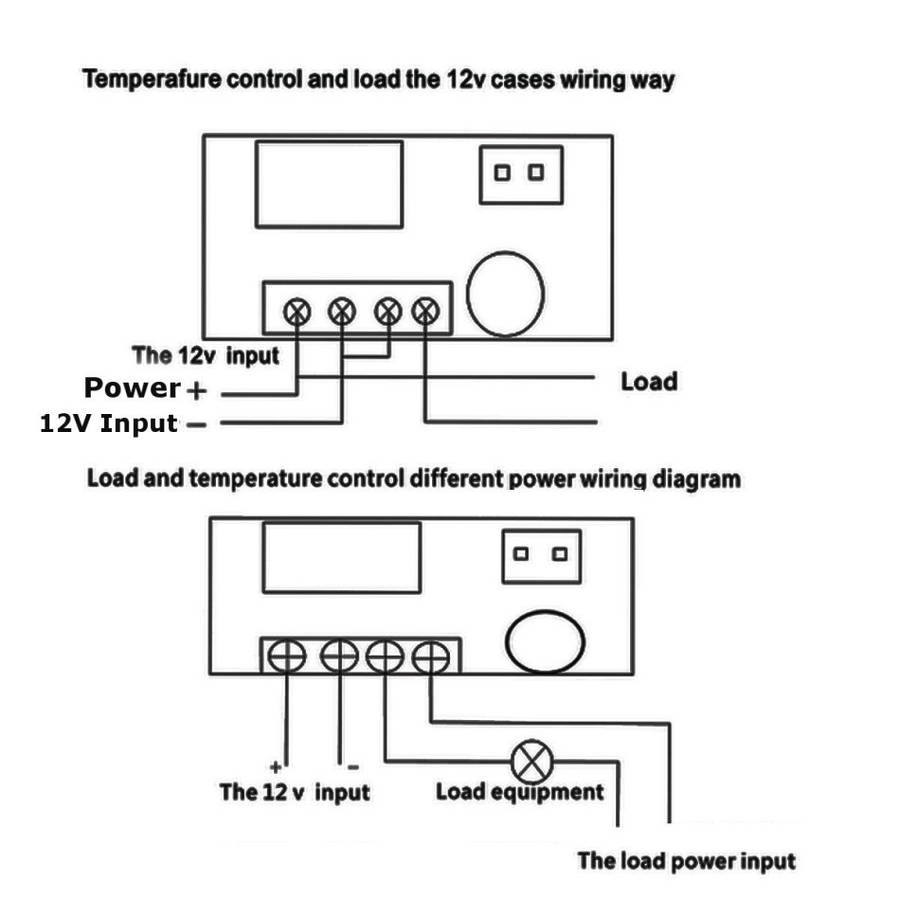

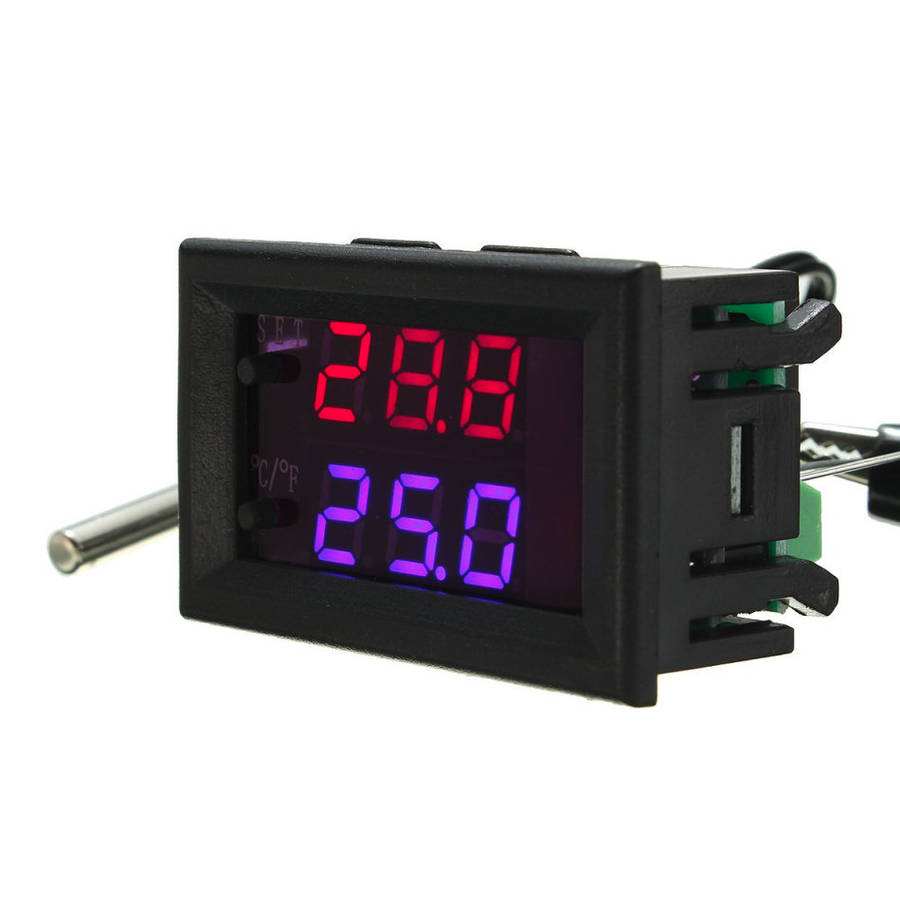

Connect the power supply and load, can supply the controller, the display for measuring the temperature above the red, the blue (but also red) showed the desired temperature, according to the STC (+) C/F (-) to set the desired temperature setting, after the completion of 3 seconds automatically confirm the return, then according to the set of automatic controller the implementation of relay on-off thermostat output for the 10A

relay, to meet a variety of high power load, please make sure that the correct line.

Package included:

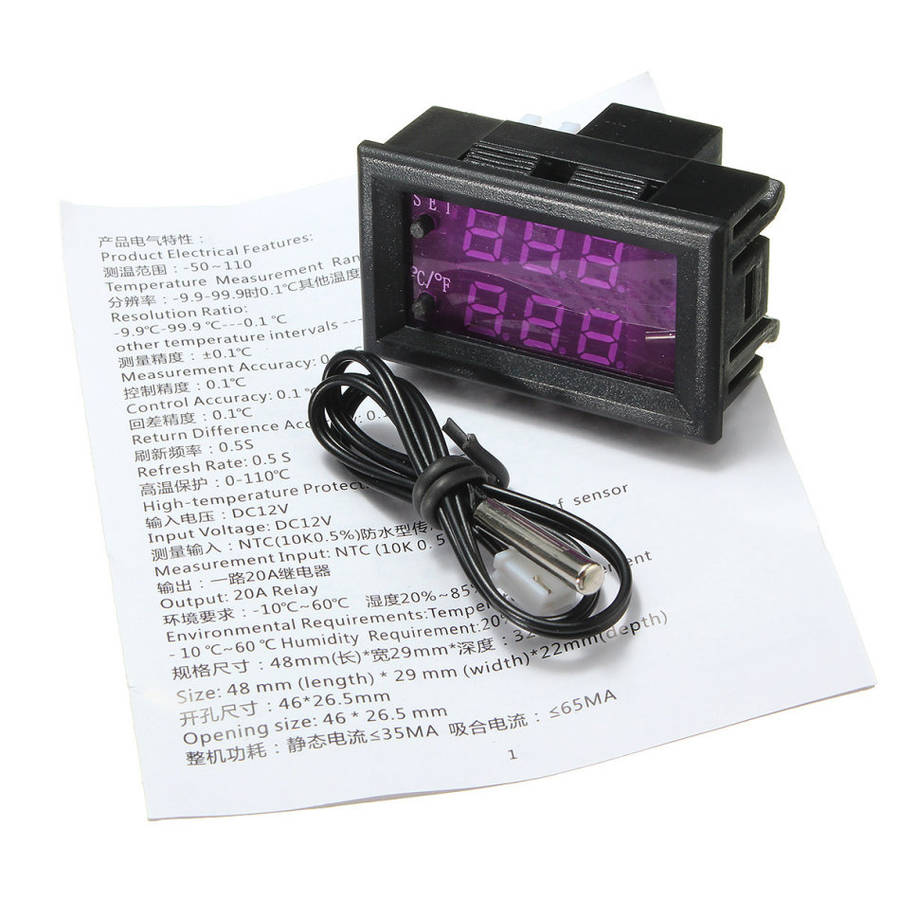

1 x Thermostat with sensor

1 x English manual
