DC12V High-Fidelity 2.1 Three-Channel Speaker Amplifier Board DIY Audio Modification Module

New 10 available
Indicative market price: R544.00
R272.00
50% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
EDA0090349
Bob Shop ID
671477580

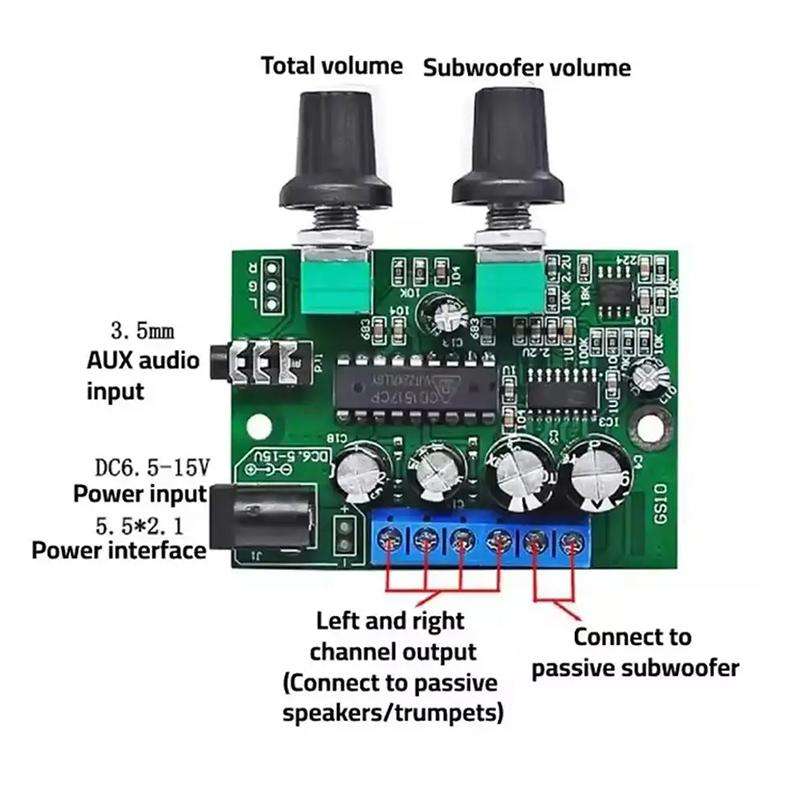

1. Power Supply: DC 6.5-15V (depending on the required output power). Power adapters, switching power supplies, and batteries are all suitable. A current of 3A or higher is recommended.
2. Bass Output Power: Maximum 25W. A 4-6 inch, 4-6 ohm, 20-50W subwoofer is recommended.
3. Left and Right Channel Output Power: 6W + 6W. 2-4 inch, 4-8 ohm, 3-25W full-range speakers are recommended. The above power requirements assume a power supply of approximately 13.5V.
4. The left and right channels use the high-fidelity audio-specific chip TDA1517P as the output stage, providing truly high-quality sound.
5. PCB Material: FR-4 fiberglass board, thickness: 1.6mm

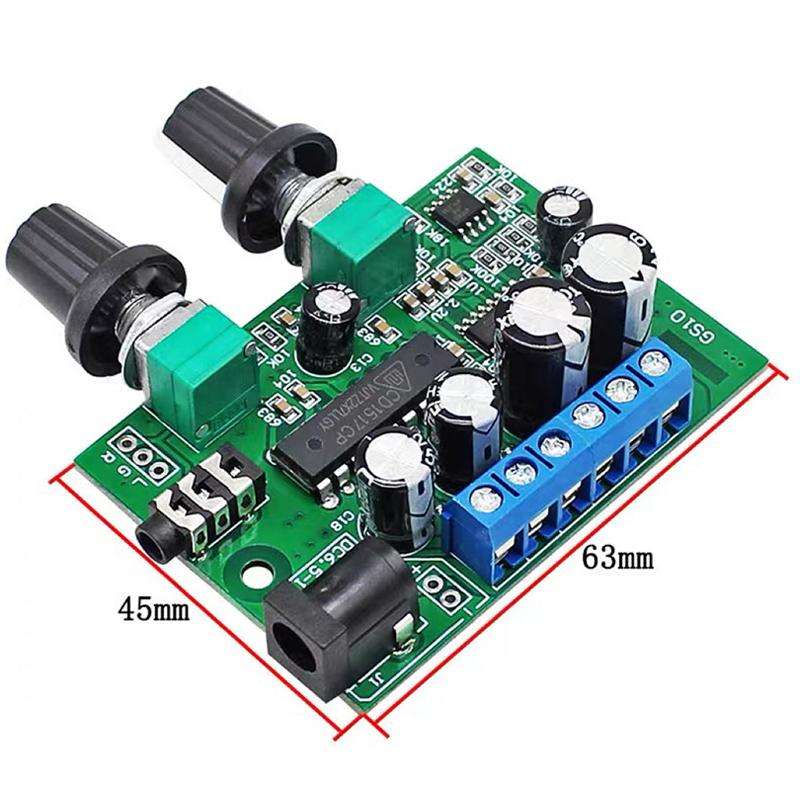

6. Board Dimensions: 63 x 45 x 20mm, excluding the potentiometer handle length.
7. Potentiometer Shaft Distance: 24mm. The potentiometer mounting hole diameter should be 7mm.
8. Input Interface: 3.5mm jack socket


EDA0090349
