Package weight: 0.02 kgSpecification:Working voltage : DC5V~12V
Working current: 20mA~130mA
Working temperature: -20￢ﾄﾃ~60￢ﾄﾃ
Remote distance :30 meters

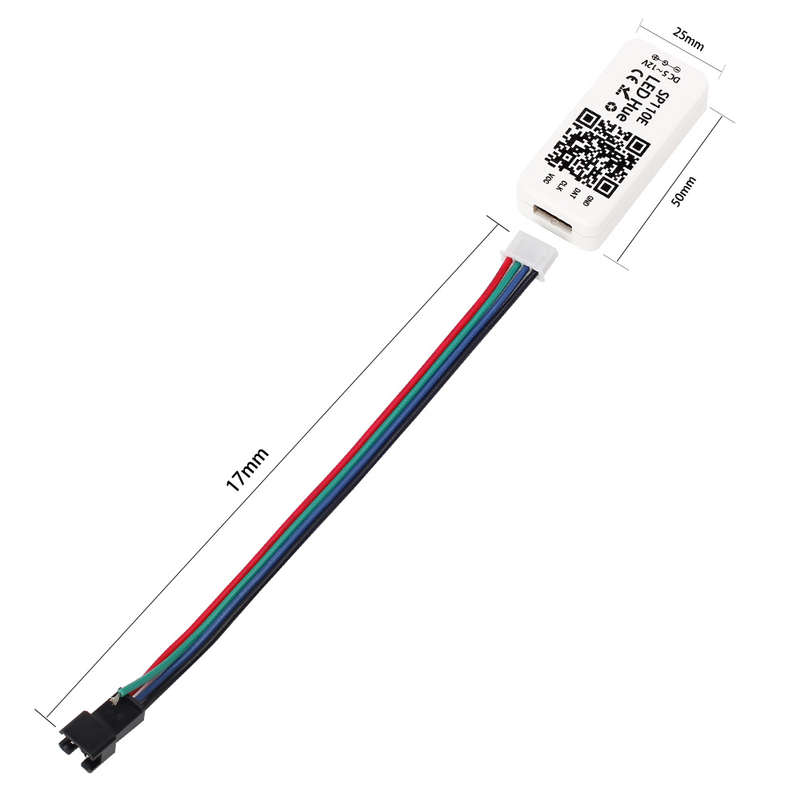

Product size: 85mm*45mm*22mm
Feature:1. Long distance APP remote control via WIFI;
2. Support routing mode(AP) and LAN connection mode(STA);
3. Support almost every kind of one-wire or two-wire LED driver IC ;
4. Brightness adjustable, With 180 kinds of patterns and 8 kind of color adjustable patterns;
5.Creatively using from-image-to-effect method for user to DIY any effect;
6. Support setting pixel number and segments number, able to control up to 2048 pixels;

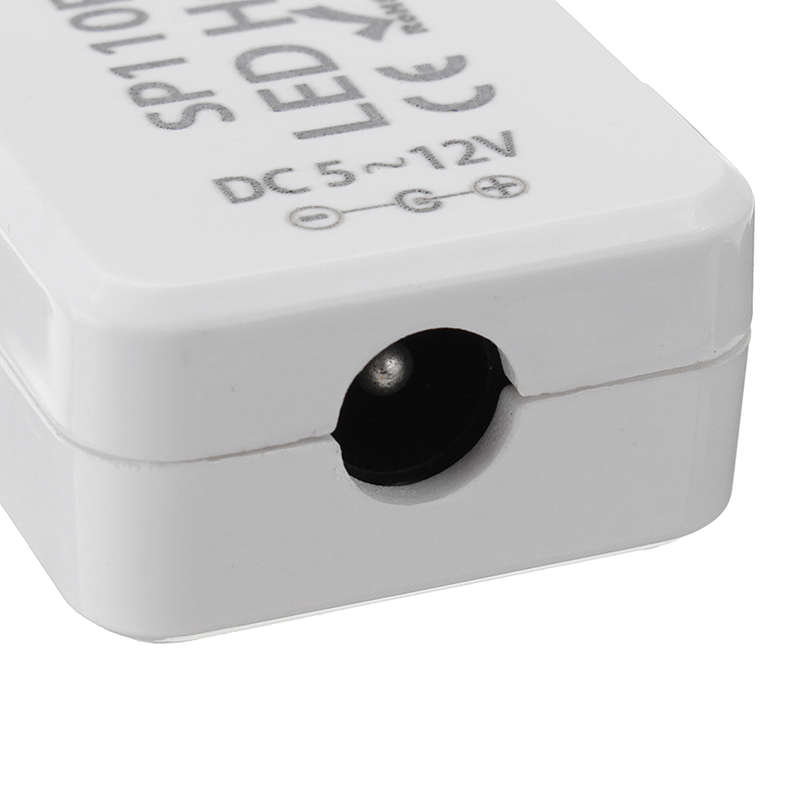

5. DC5V~12V wide range working voltage, preventing reverse connection of power supply;
6. User setting saving;

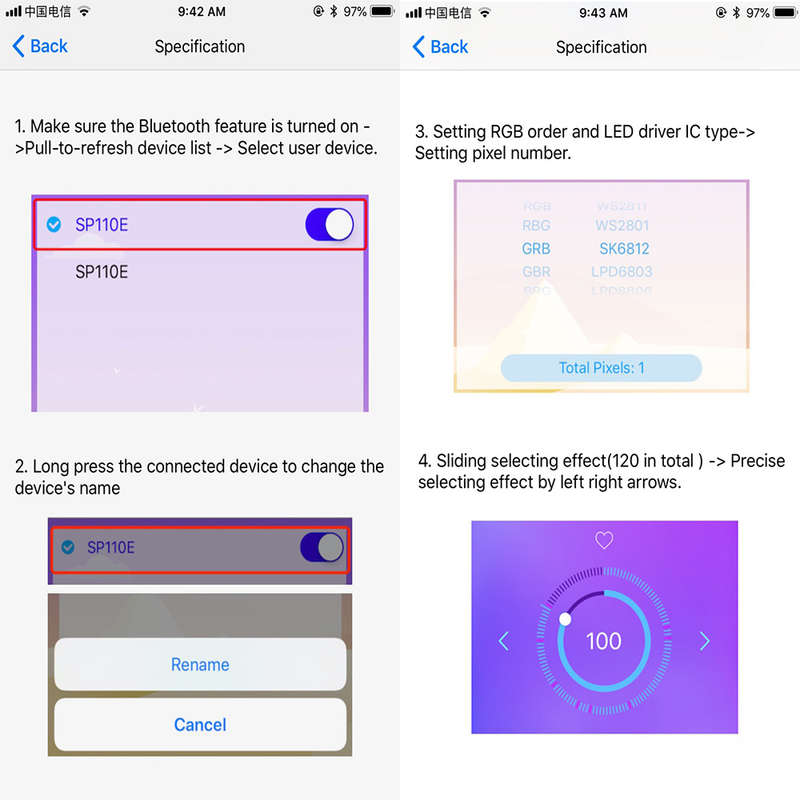

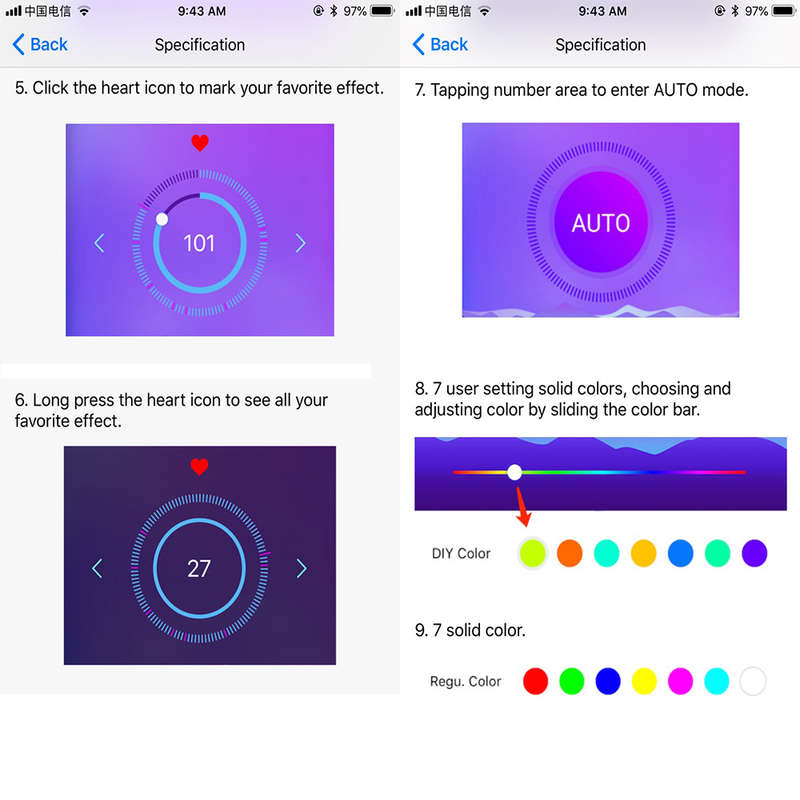

App control: Both IOS version and Android OS version are available. (hardware should support WIFI)
Requires IOS version 10.0 or later;
Requires Android version 4.4 or later;

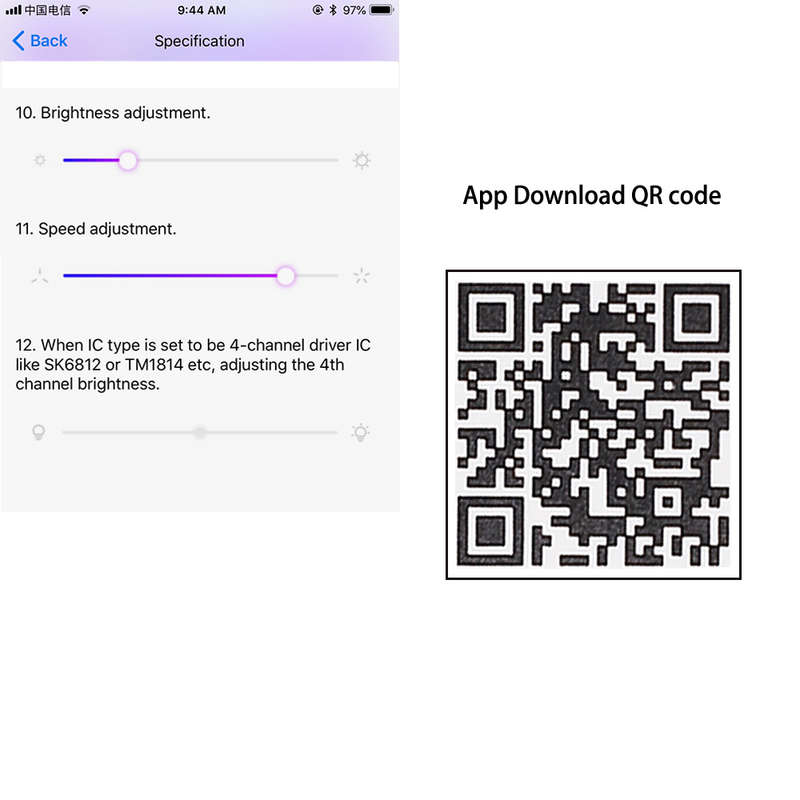

Search”LEDHue”in App Store or Google pay or scan this QR code to download and install the App:
Working mode and connecting:AP(Access Point) mode:Controller and Phone connect directly, controller works as an access point.
Connect steps: 1.When the device is not connected to any WIFI network, power on the controller and wait for 20s and then controller will switch into
AP mode ;
2.In the WIFI setting page, find and connect the controller(named like
SP108E_xxx, the default pin code is 12345678),
3.Open the LED Shop App, then the controller will be showed on the device list;
STA(Station) mode:Controller and phone are in one same WIFI network, in this network, users can operate the controller smoothly.
Connect steps: 1. When the device is not connected to any WIFI network,power on the controller, controller will be remain in Wait-For-Connet mode for 20 seconds;
2. Make sure that your phone is connected to a WIFI network, Open LED Shop APP, pressing the Add Device button,
input the WIFI pin code, then press the OK to confirm and wait for the configure processing finish;
3. When controller successfully enter the WIFI network, it will be showed on the device list;
4. User can select the controller and remove it out of the network by pressing the Remove Device button, then the controller will switch into AP mode.

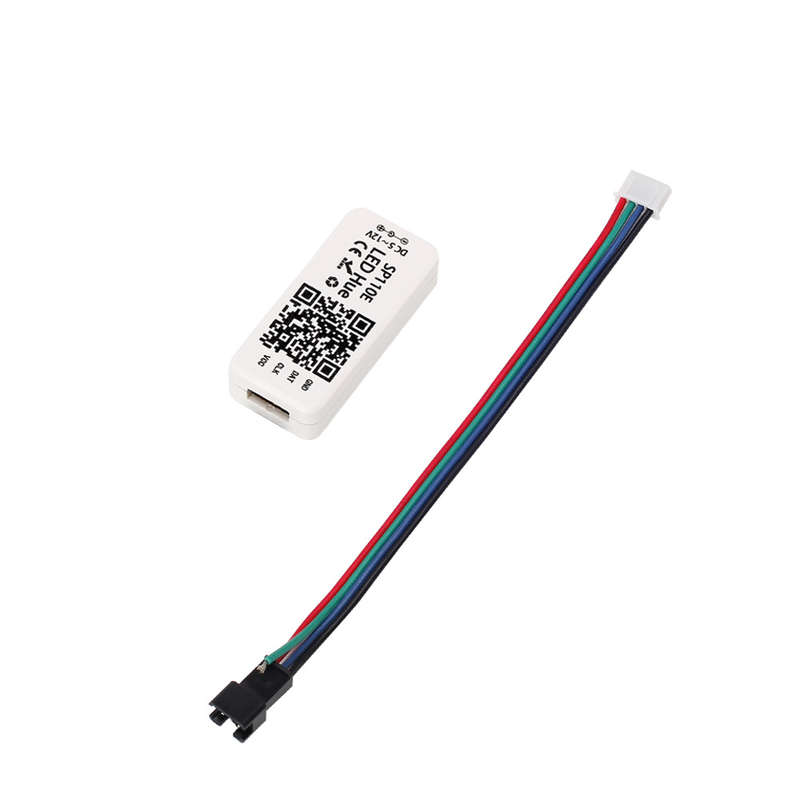

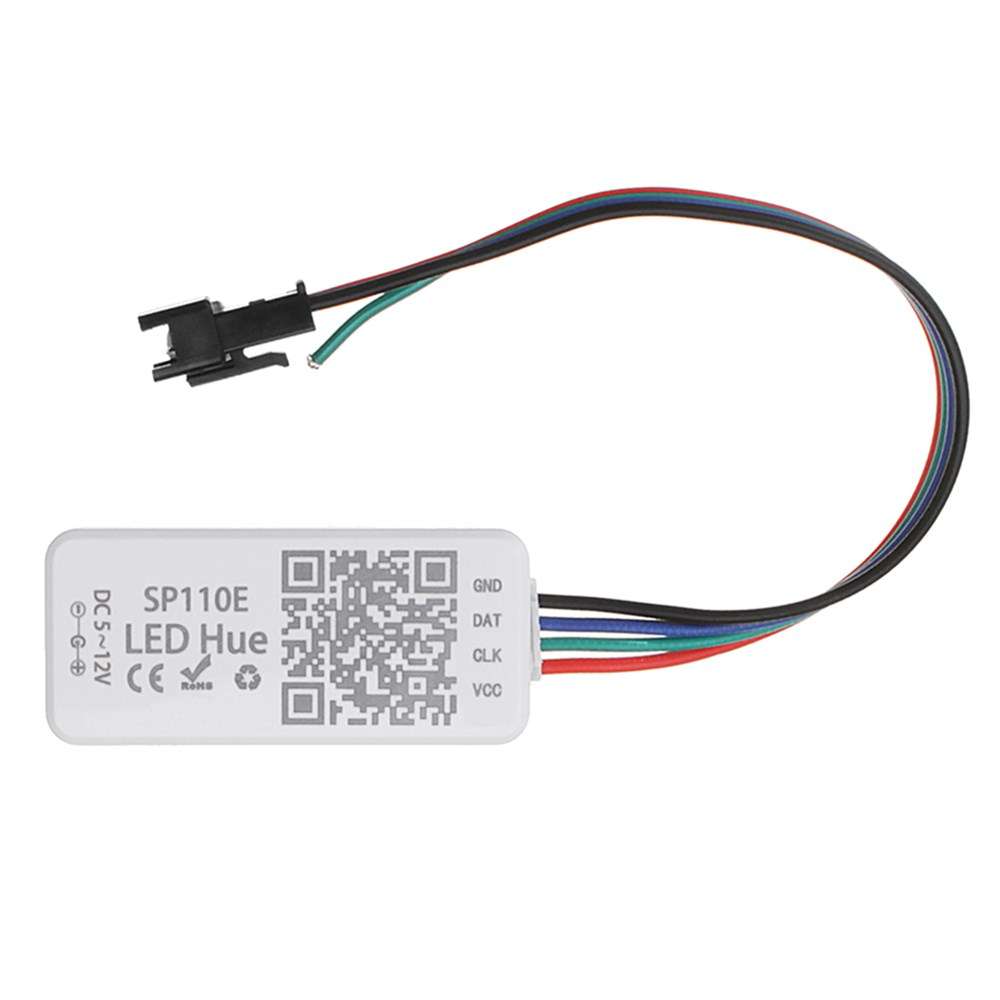

Package included:1 * bluetooth led controller
