Specification: Working voltage : DC5-24V
Working current:20mA~130mA
Working temperature: -20a~60a
Remote distance :30 meters
Product size: 85mm*45mm*22mm
Feature: 1.LongdistanceAPP remote control via WIFI;
2.Support routing mode(AP)and LAN connection mode(STA);
3. Support almost every kind of one-wire or two-wire LED driver IC ;
4. Brightness adjustable,With 180kinds of patternsand 8 kind of color adjustable patterns;
5.Creatively usingfrom-image-to-effectmethod for user toDIYany effect;
6. Support setting pixel numberand segments number,able to control up to 2048pixels;
5. DC5V~12V widerangeworking voltage,preventing reverse connection ofpower supply;
6. User setting saving;
Appcontrol: Both IOSversionand Android OSversion are available. (hardware should supportWIFI)
RequiresIOS version10.0or later;
Requires Androidversion4.4or later;

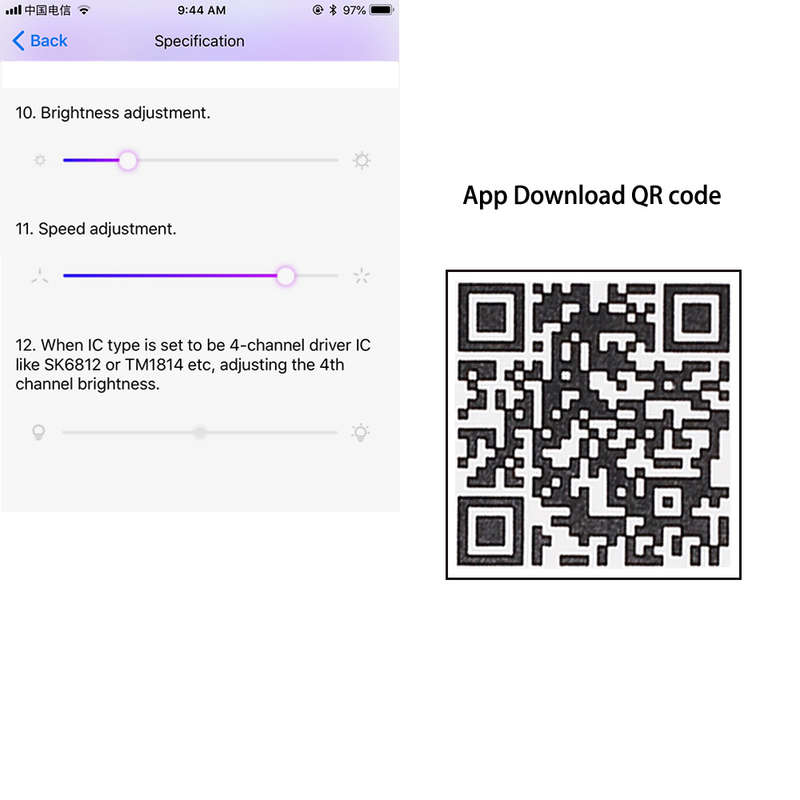

SearchaLEDHueain App or Google payor scan thisQR code to download and install the App:
Working m ode and c onnecting: AP(Access Point) mode: Controller and Phone connect directly, controller works as an access point.
Connect steps: 1.When the device is not connected to any WIFI network, power on the controller and wait for 20sand then controller will switch into
APmode ;
2.In the WIFI setting page,find and connect the controller(named like
SP108E_xxx, the default pin code is 12345678),
3.Open the LED Shop App,then the controller will be showed on the device list;
STA(Station) mode: Controller and phone are in one same WIFI network, in this network, users can operate the controller smoothly.
Connect steps: 1.When the device is not connected to any WIFI network,power on the controller,controllerwill be remain inWait-For-Connetmode for 20 seconds;
2.Make sure that your phone is connected to a WIFI network, Open LED Shop APP, pressing theAdd Devicebutton,
input the WIFI pin code, then press theOKto confirm and wait for the configure processing finish;
3.When controller successfully enter the WIFI network, it will be showed on the device list;
4.User can select the controller and remove it out of the network by pressing theRemove Devicebutton,then the controller will switch into AP mode.

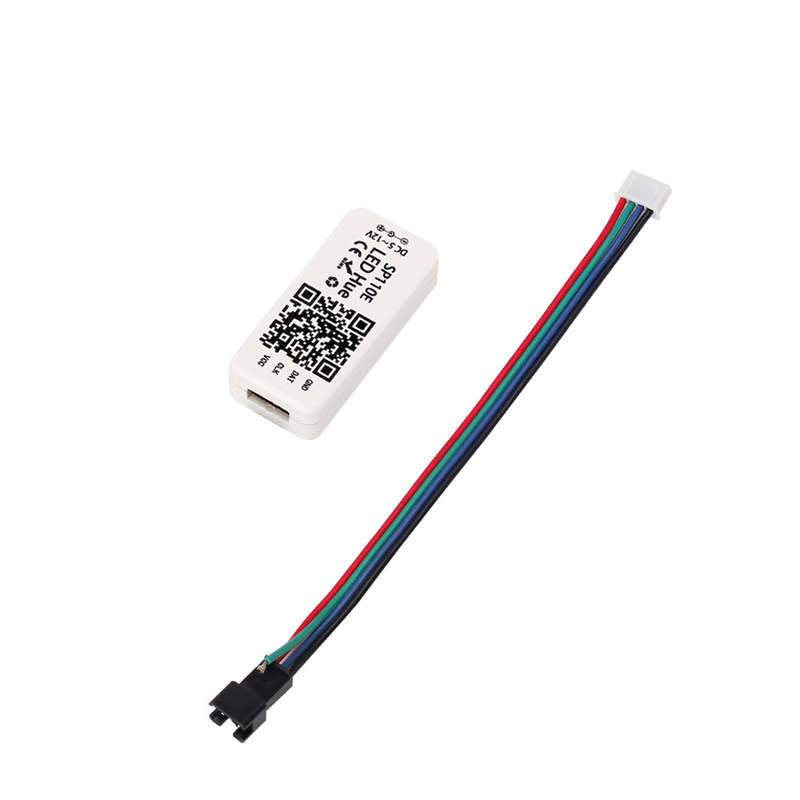

Package included: 1 * bluetooth led controller
