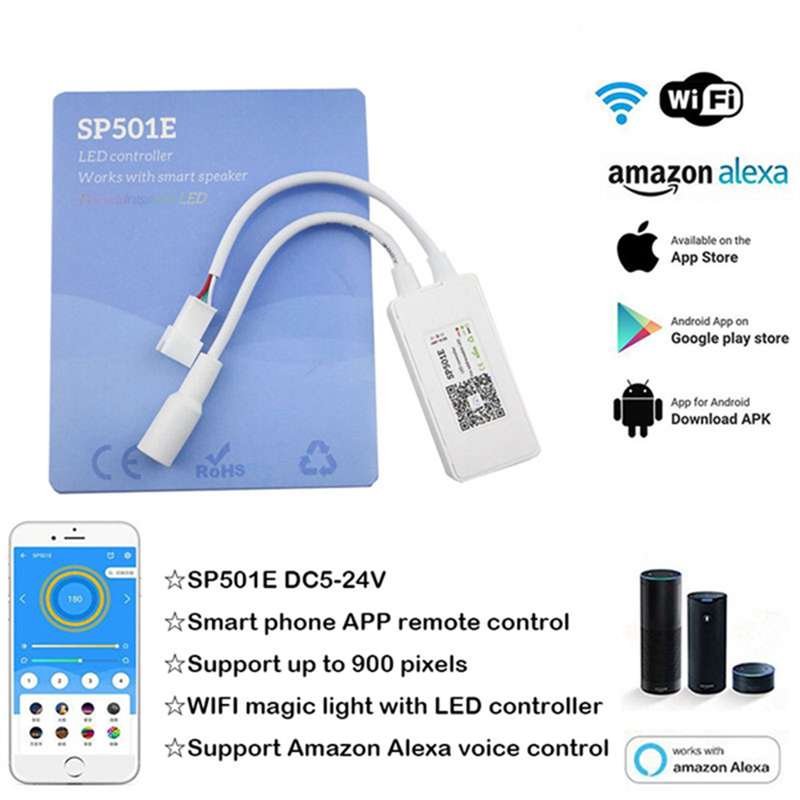

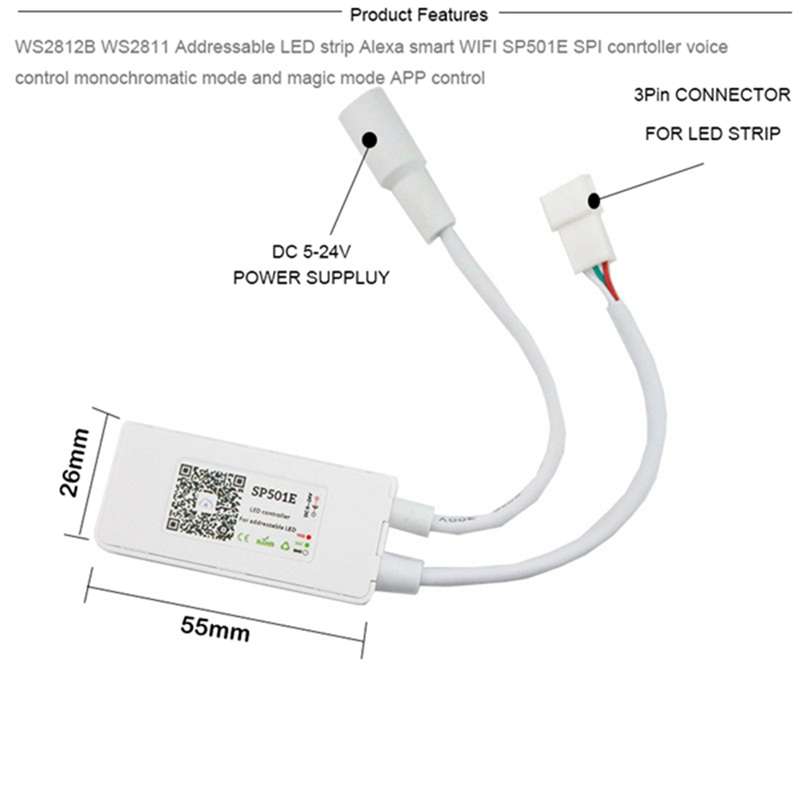

Specification: Input voltage: DC5-24V
Dimension: 55*26mm

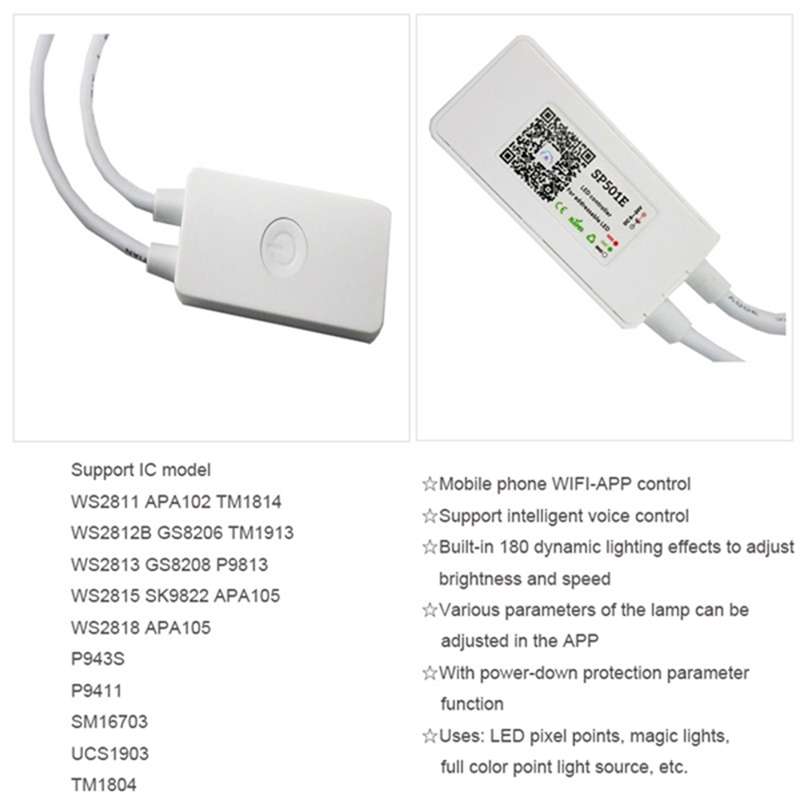

Suitable for WS2811, WS2812B, WS2813, USC1903
Feature: Controller c onfiguration Scan the QR code(search for aFairyNesta on Google Play) to download the FairyNest App. Open the App and Sign up.
Connect your phone or tablet to a 2.4G WiFi network.(Does not support 5.0G WiFi network)

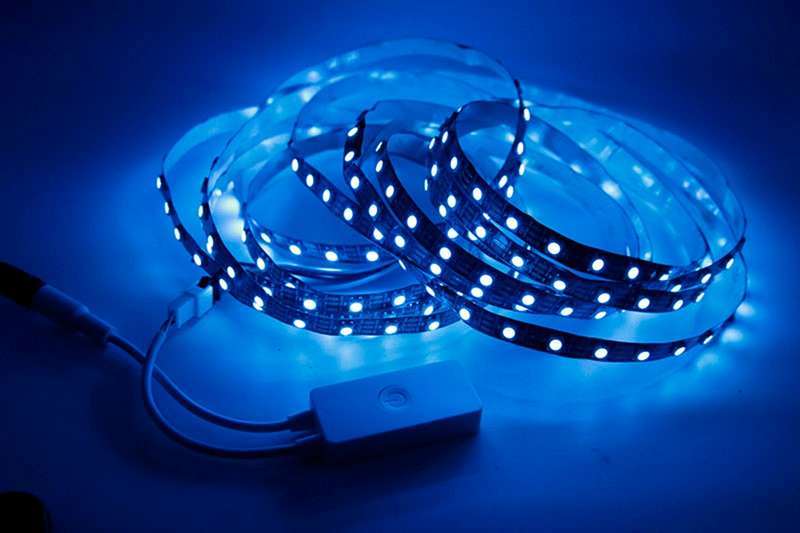

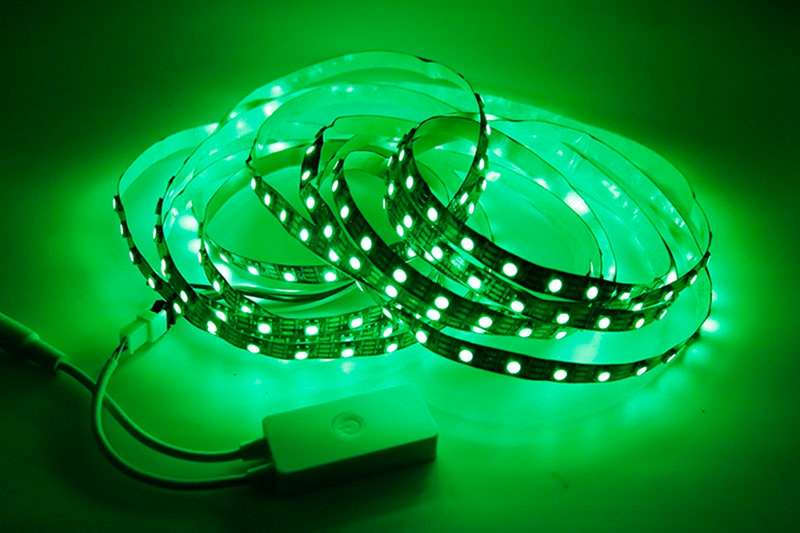

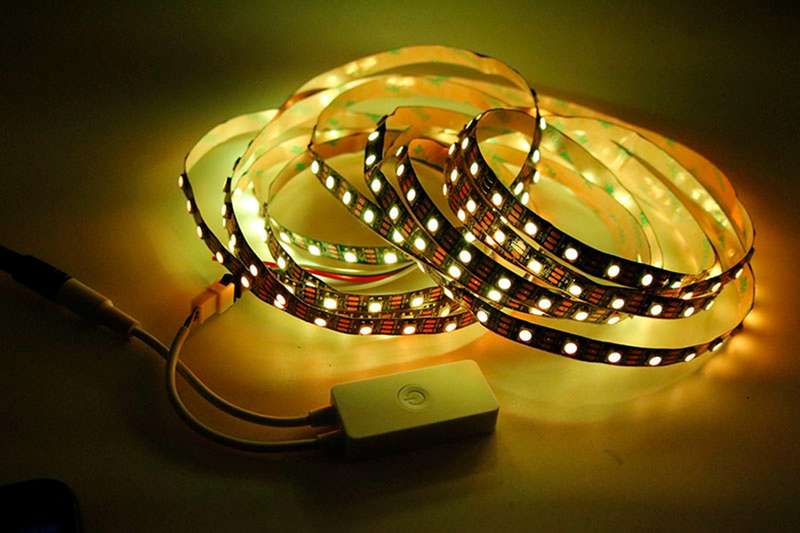

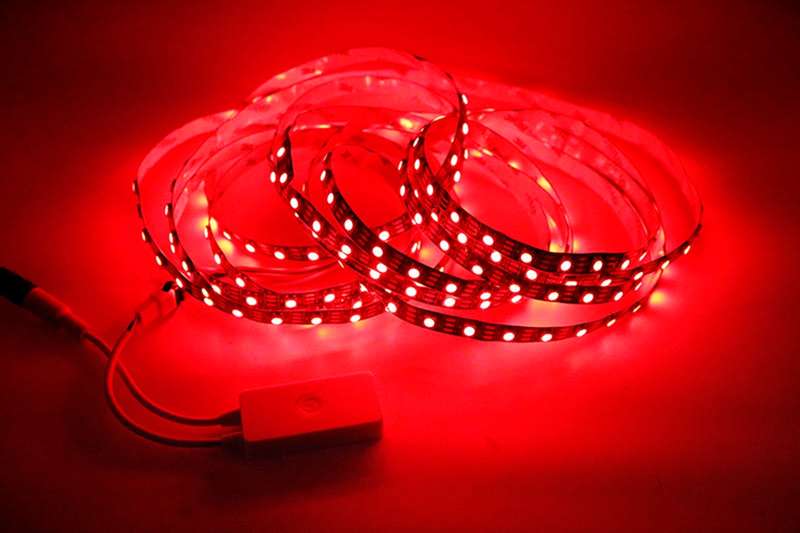

Power up SP501E controller(DC5-24V), and connect the controller to the LED strip.
Click a+a button to configure the new SP501E controller:
Input your WiFi network password.
Pressing and hold the button on the controller until the LED flashes in white.
Please keep your phone, the WiFi router and the controller closer together to maintain a better signal connection during configuration.
After the configuration is completed, the controller will successfully access the Internet.

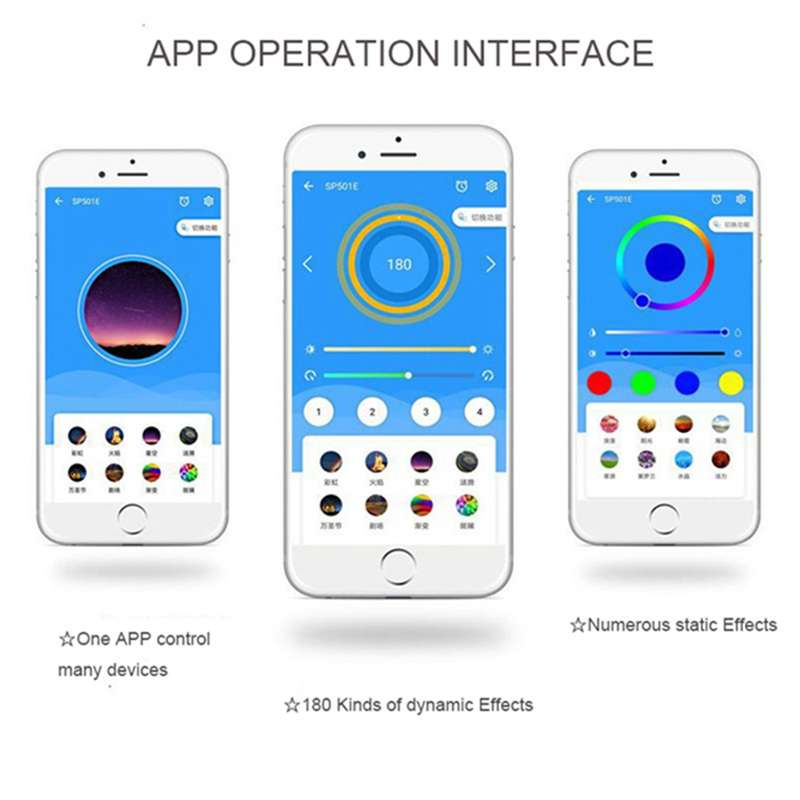

FairyNest A PP f unction There are 180 dynamic built-in effects with adjustable brightness and speed.
You can long press and drag your favourite effects into four slots.
8 buttons for 8 special led effects that can be easily called using the FairyNest app and can be called via Alexa voice orders.
In the static color page, you can combine any static colors using the color ring and the brightness and saturation adjust bars.
You can long press and drag your favourite colors into four slots.
8 buttons for 8 special led colors that can be easily called using the FairyNest app and can be called via Alexa voice orders.
Connect to s mart s peaker 1. Sign in to the Alexa App and get your smart speaker ready.
2.Enable skills:
There are two skill for SP501E LED controller: FariyNest and Fairy Light.
Search FairyNest(FairyLight) on the Alexa Appas Skills page, click Enable button to enable the skill.
Go to the FairyNest login page and enter your FairyNest account and password.
Go to the Authorization page and click the aGRANTabutton to grant Alexa permission to control the LED controller.
Voice control instructions With the FairyNest and FairyLight skills enabled, you can now control your LED with voice orders.
FairyNest skill: This FairyNest skill has basic functions such as turning on, off, changing colors and adjusting brightness.
You can use the voice order as below(presume your controlleras name is: living room light):
Alexa, turn on living room light.
Alexa, turn off living room light.
Alexa, set color living room light color to red.
Alexa, set color living room light color to purple.
Alexa, set the brightness of living room to 80%.
Alexa, brighten living room light.
Alexa, dim living room light.
FairyLight skill: This FairyLight skill is used for dynamic LED effects and can be used to change effects and adjust speed with voice orders.
You can use the voice orders as below:
==========change effect ========== Alexa, ask fairy light to run rainbow effect.

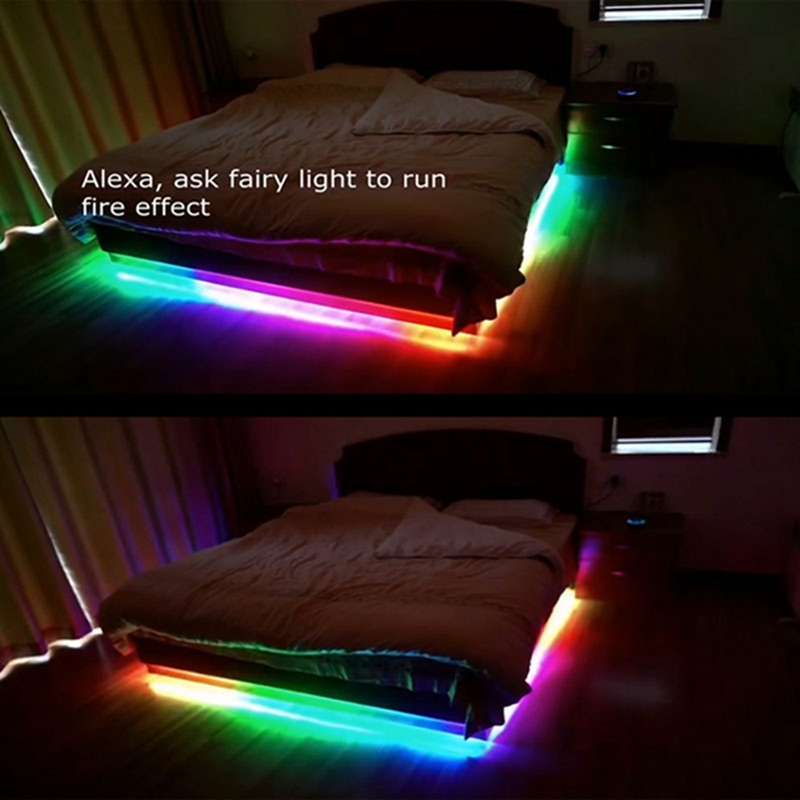

Alexa, ask fairy light to run fire effect.
Alexa, ask fairy light to run stars effect.
Alexa, ask fairy light to run ripple effect.
Alexa, ask fairy light to run Halloween effect.
Alexa, ask fairy light to run theater effect.
Alexa, ask fairy light to run gradient effect.
Alexa, ask fairy light to run gorgeous effect.
======== adjust effect speed ======== Alexa, ask fairy light to speed up.
Alexa, ask fairy light to run faster.
Alexa, ask fairy light to speed down.
Alexa, ask fairy light to run slower.
======== set static color ======== Alexa, ask fairy light to run romantic effect.
Alexa, ask fairy light to run sunshine effect.
Alexa, ask fairy light to run sunset effect.
Alexa, ask fairy light to run seaside effect.
Alexa, ask fairy light to run grassland effect.
Alexa, ask fairy light to run violet effect.
Alexa, ask fairy light to run crystal effect.
Alexa, ask fairy light to run energy effect.
Note: 1, Power supply/phone/controller/led strip not include.
2, This phone only support 2.4G WiFi network.Can't support 5.0G WiFi network.
3, This app support Android 4.4 or above, IOS 10.0 or above.
Package include d : 1*SP501E WiFi LED strip light controller (power and strip light not include)
