DC5V 8 Bits WS2812B 5050 RGB DIY LED Module Strip Ring Pixel Light with Integrate... (COLOR.: WHITE)

SELECTED OPTION:
COLOR.: WHITE

Specification:
Voltage: DC5V
LED source: WS2812B 5050
Light color: RGB
LED quantity: 8pcs
Board color: black, white
Inner diameter: 12mm
Outer diameter: 27mm

Feature:
Intelligent reverse polarity protection, power supply reverse polarity will not damage the IC.
IC control circuit and a power LED spot light utility.
Control circuit chip with RGB components in a package in 5050, to form a complete external control pixels.
Built-in signal shaping circuit, any one pixel after receiving the signal through the waveform shaping and then output to ensure line waveform distortion will not accumulate.
Built-in power-on reset and brown-out reset circuit.

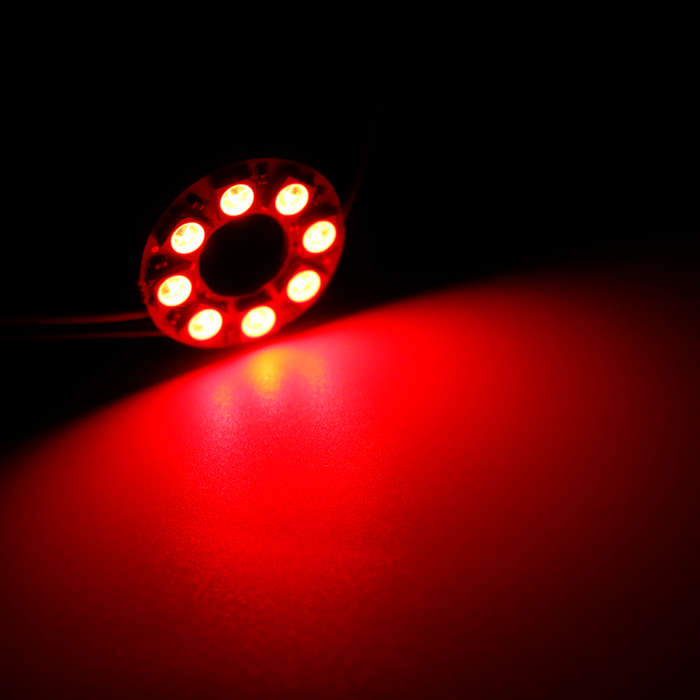

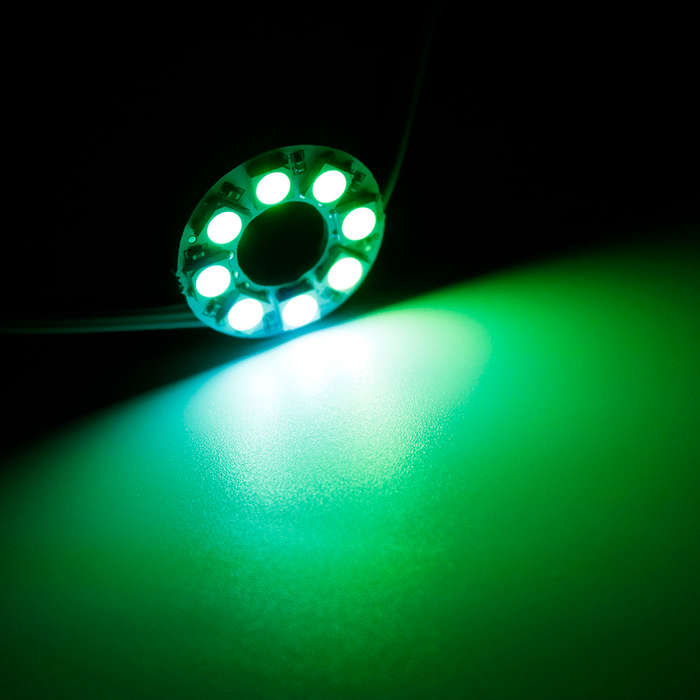

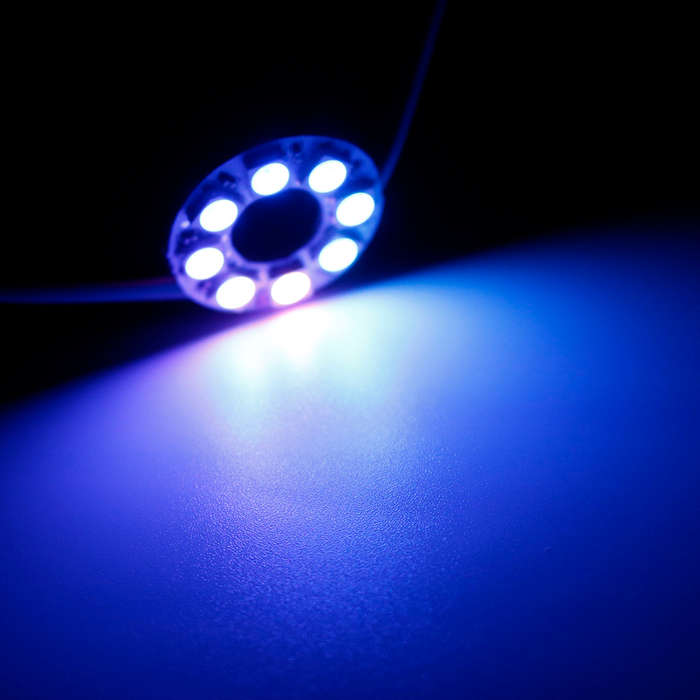

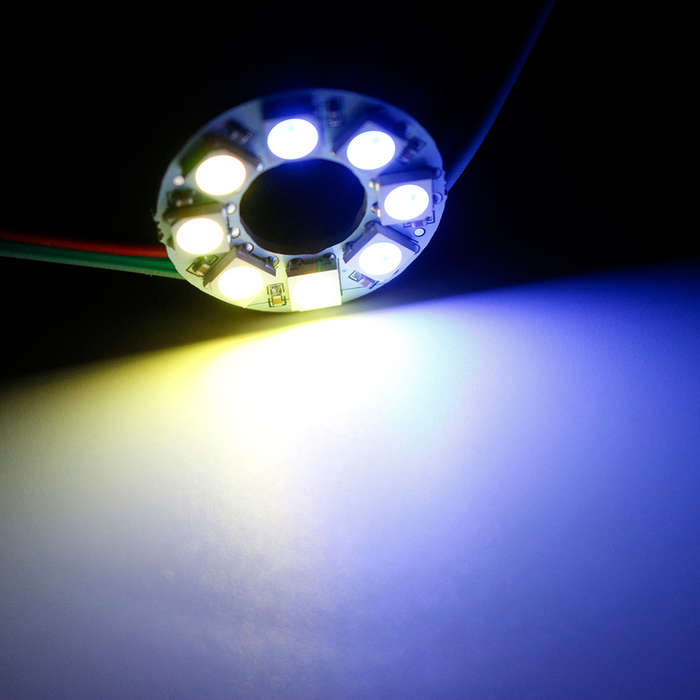

Trichromatic color of each pixel can realize 256 highlighted, complete 16777216 colors of all true color display, the scanning frequency is not less than 400Hz / s.
Serial cascade interface, through a signal line to complete the receiving and decoding of data.
Transfer transmission distance between any two points in less than 5 meters without any additional circuitry.
When the refresh rate of 30 frames / sec, cascading number of not less than 1024 points.
Data transmission speeds of up to 800Kbps.
The color of the light highly consistent, cost-effective.

Application:
With Gorgeous color, this module can be used to decorate dress or or the holiday decoration

Package Included:

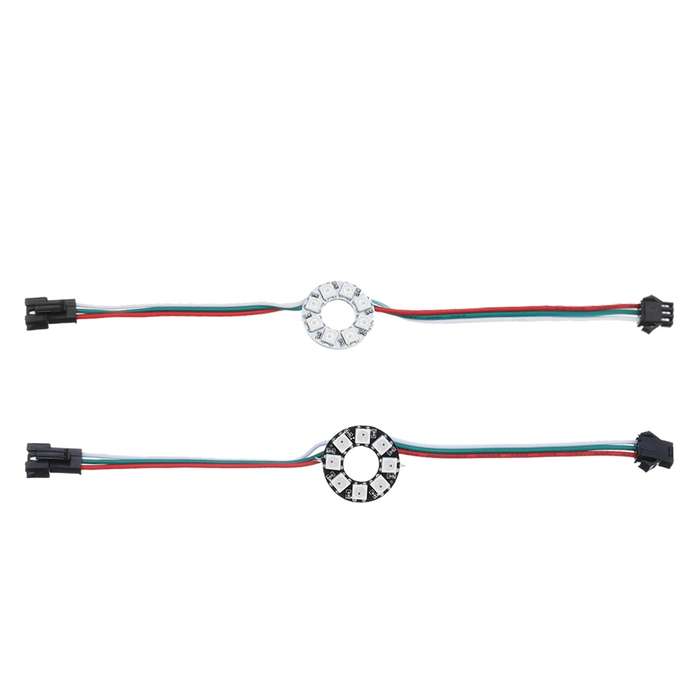

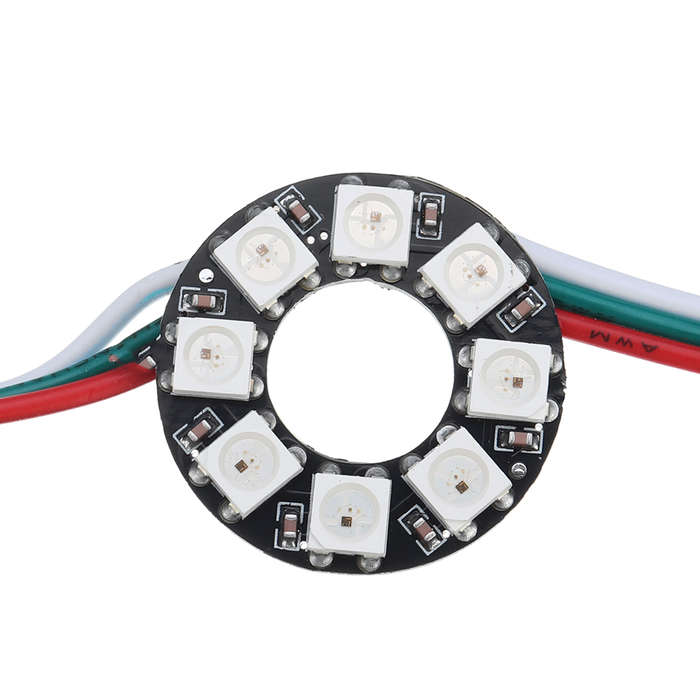

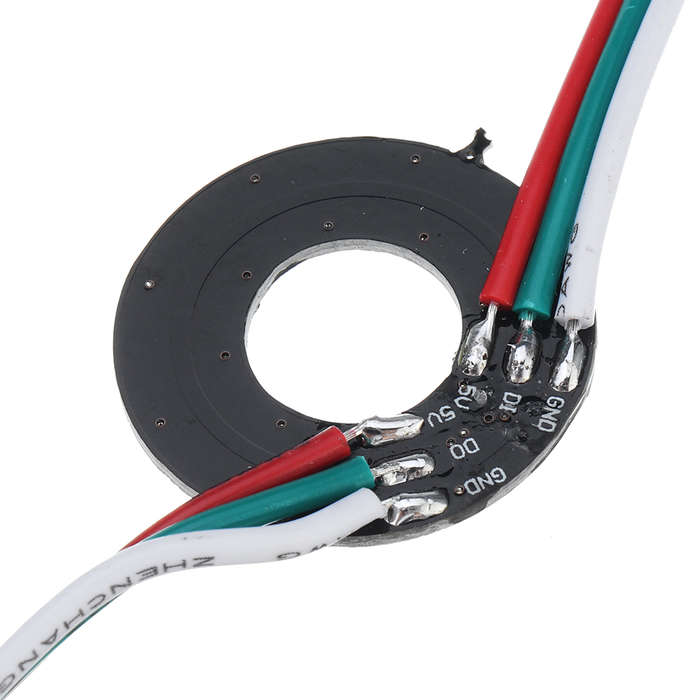

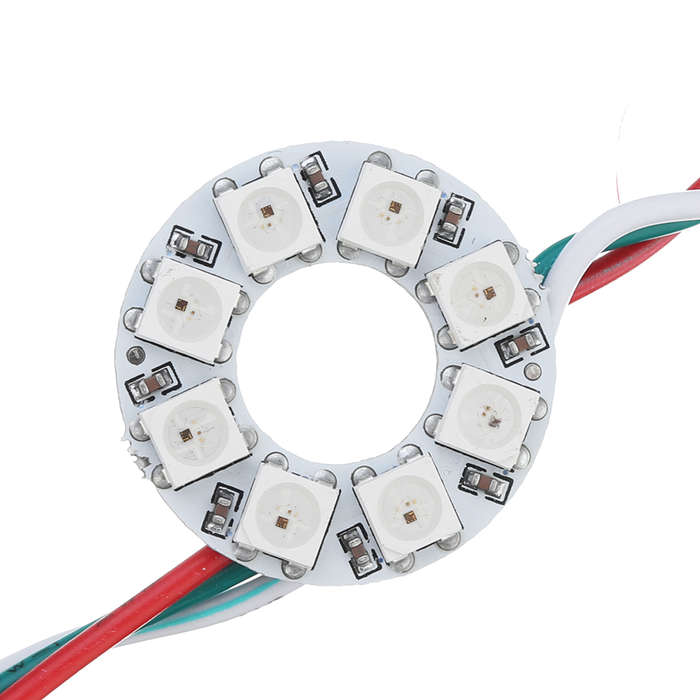

1*8leds WS2812B ring round board (not include controller)
