DC7-28/5V ESP8266 WIFI 4 Channel 30A Relay Module ESP-12F Development Board Secondary Opening

20 available / new

R460.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3533

93.36 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

643377347

Description:

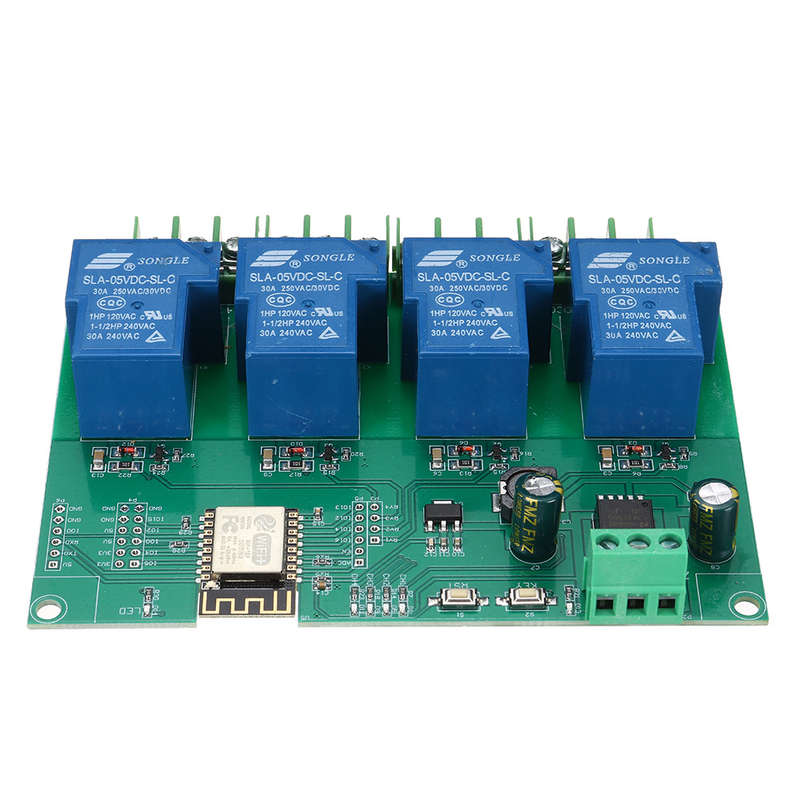

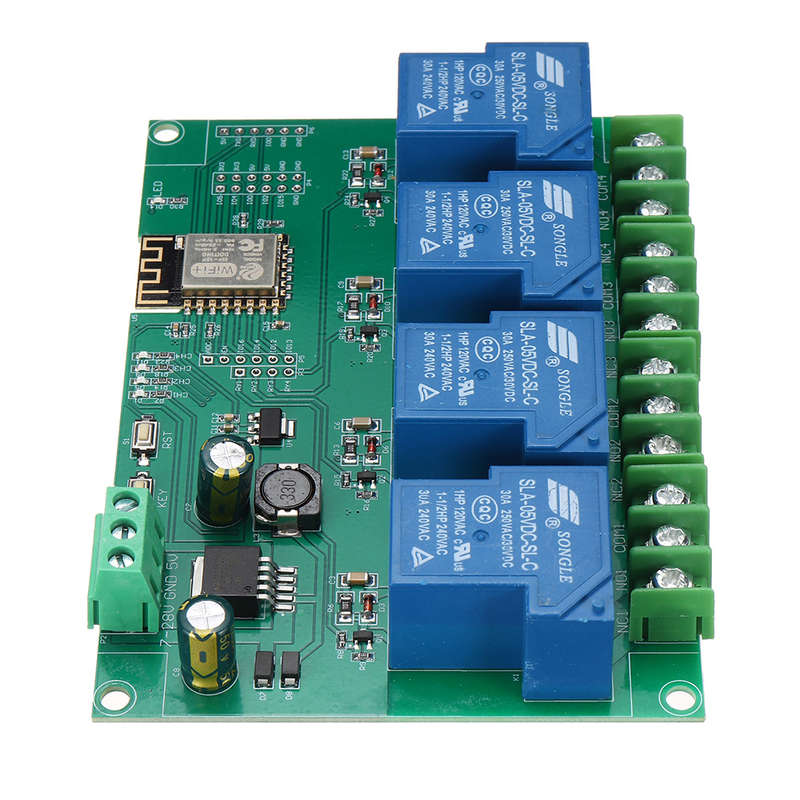

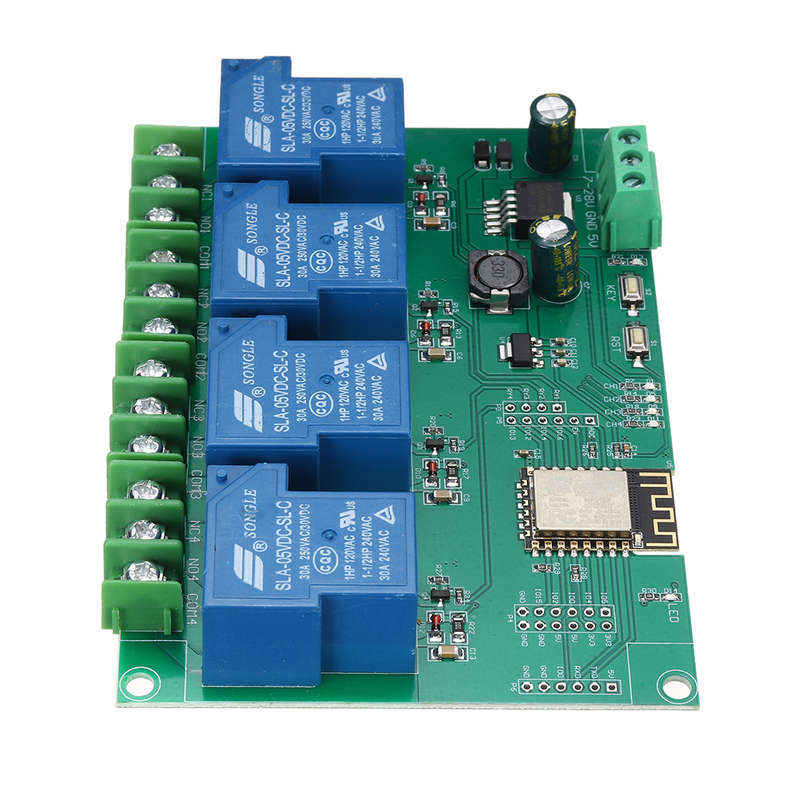

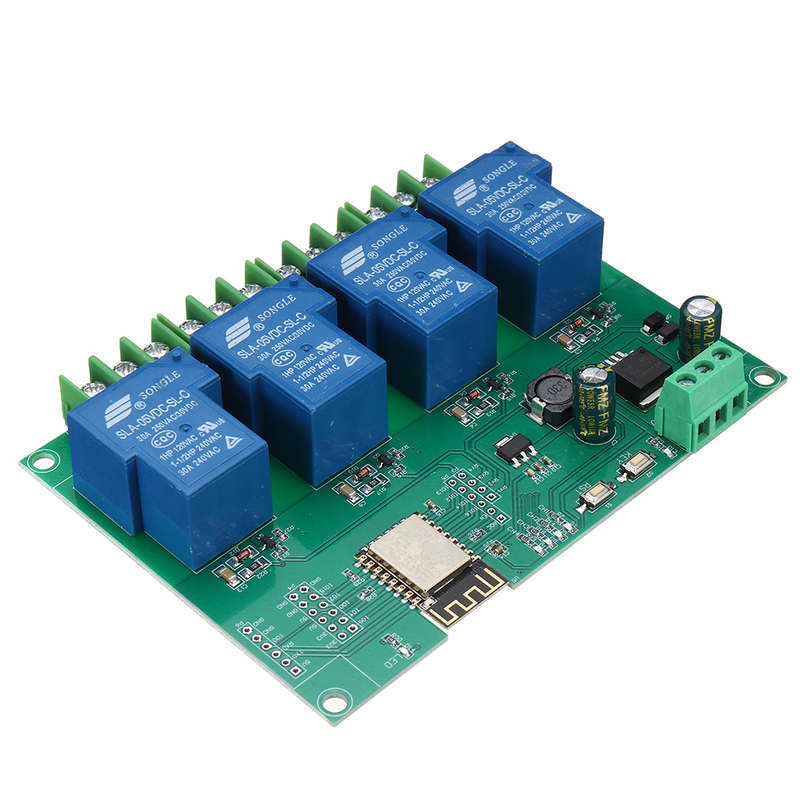

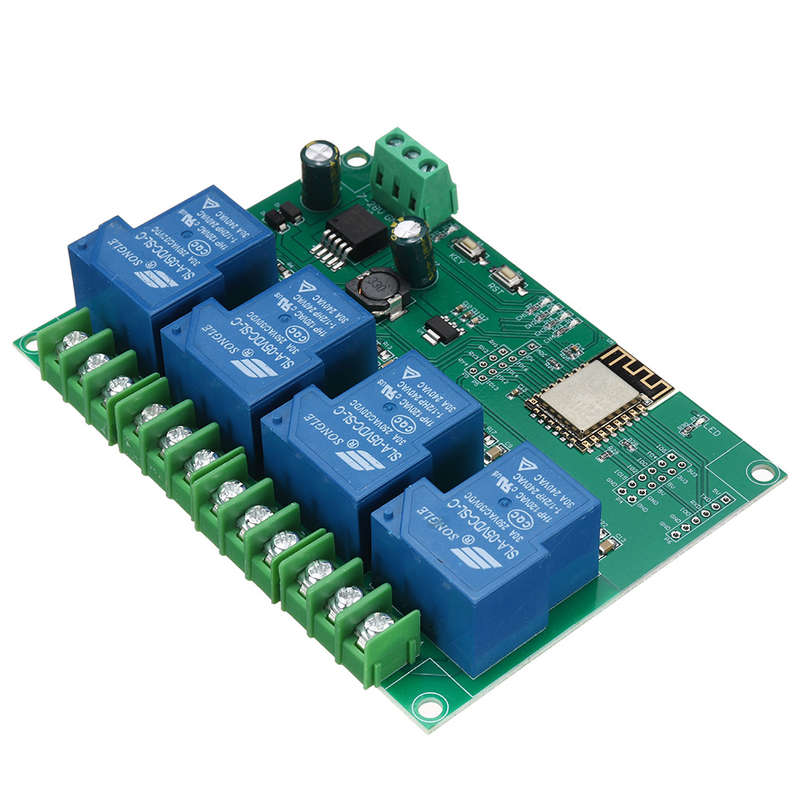

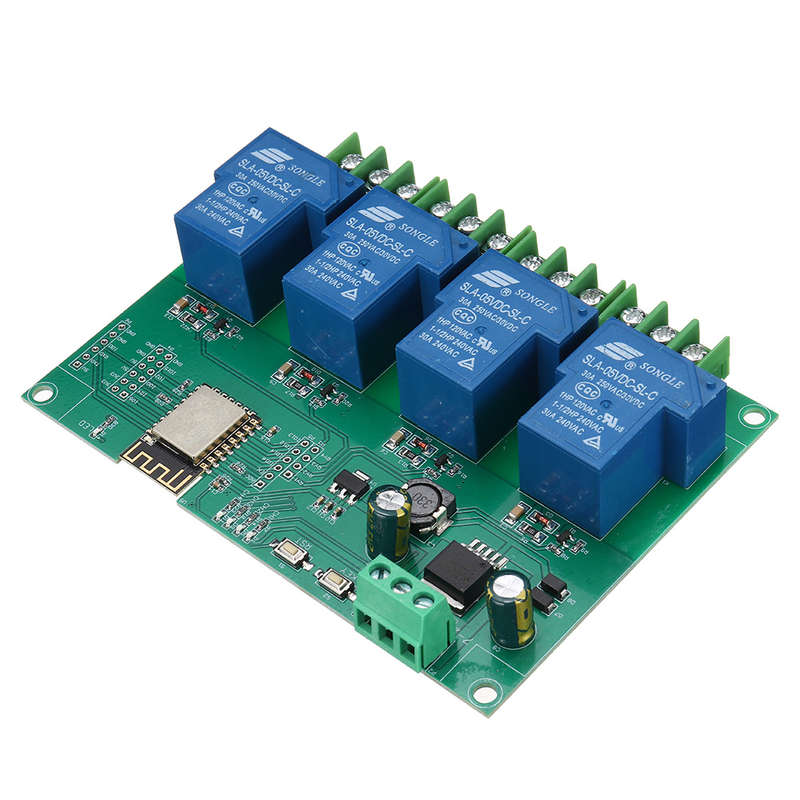

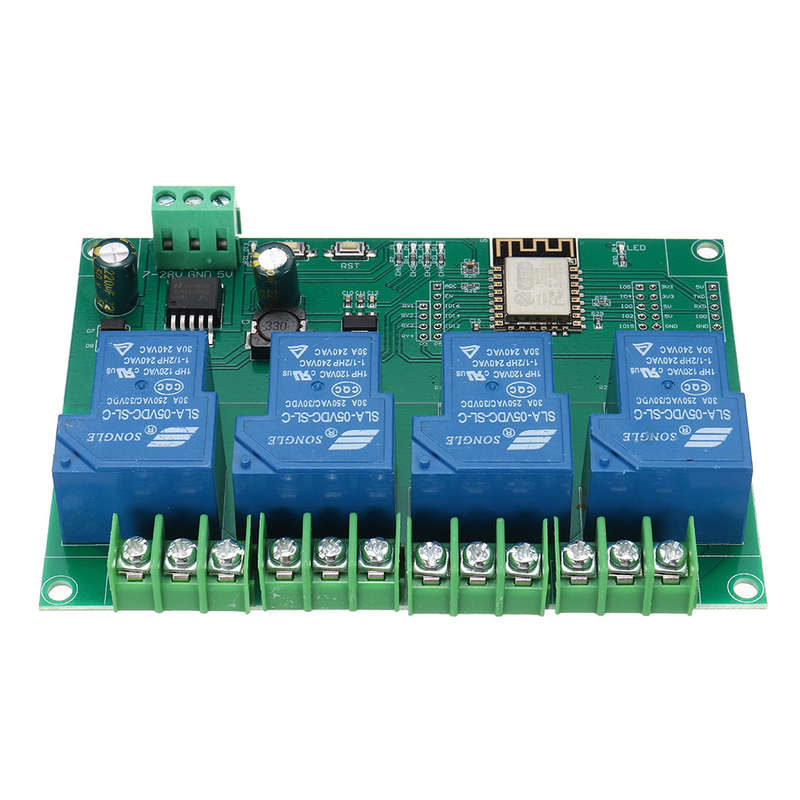

Esp8266 four way 30A relay development board is equipped with esp-12f WiFi module, I / O ports are all led out, and supports dc7-28v / 5V power supply mode. It is suitable for esp8266 secondary development and learning, smart home wireless control and other occasions.
Features:

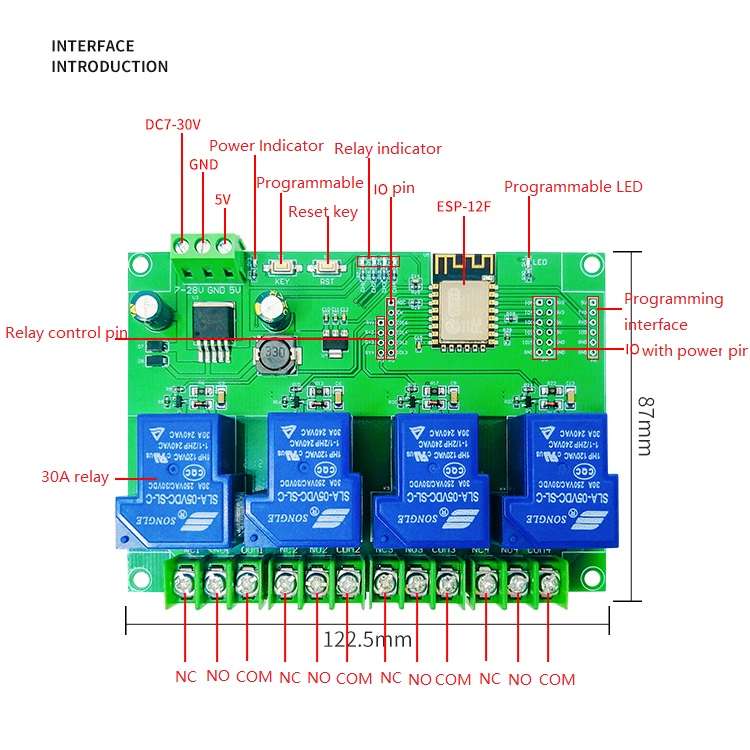

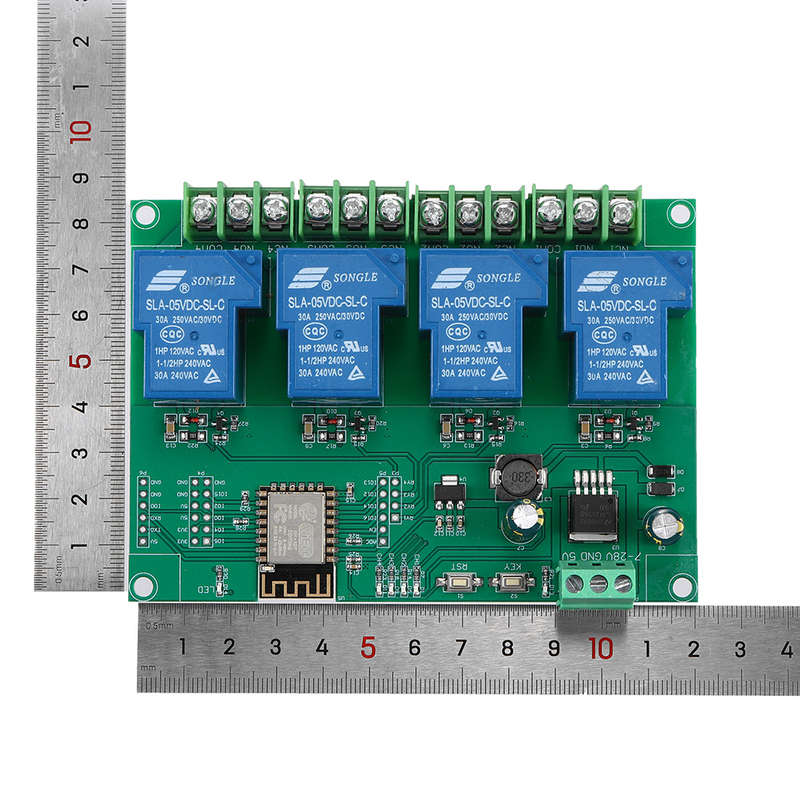

1. Mature and stable esp-12f WiFi module on board, large capacity 4mByte Flash. 2. I / O port of WiFi module and UART program download port are all led out,It is convenient for secondary development. 3. The power supply mode supports dc7-28v / 5V. 4. On board WiFi module RST reset button and a programmable key. 5. Esp-12f supports the use of eclipse / LDE and other developers provide the reference program for Arduino development environment. 6. On board 4-way 5V / 30A relay, output switch signal, tocontrol the load whose working voltage is within AC 250V / DC 30V. 7. On board power indicator, 1 programmable led and relay indicator. 8. Board size: 122.5 * 87mm 9. Weight: 160g
GND, Rx, TX and 5V of burning and writing port esp8266 are respectively connected with GND, TX, RX and 5V of external TTL serial port module. When downloading, 00 needs to be connected with GND, and then disconnect 00 from GND after downloading.
Relay output: NC: normally closed end, the relay is short circuited with com before closing and suspended after closing. COM: public end. No: normal opened end, the relay is suspended before closing, and it is short circuited with com after closing.
Package included:
1 x Relay Module
