DDS Function Signal Generator Module Sine Square Sawtooth Wave Signal

Feature: This is a function (waveform) signal generator designed with1602 LCD screen and intuitive 5 buttons It can produce some specific periodic time function waveform (sine, square, triangle, sawtooth, and pulse wave, etc.) signal The frequency range from a few Hz to tens of MHz micro-function signal generator circuit experiments and equipment detection of a very wide range of applications DDS signal amplitude of the offset amount can be adjusted separately by two potentiometers The power automatically restores the last used configuration Specification: Operating voltage: DC7V-9V Size: Approx. 100*80mm (Length*width) Template thickness: 2mm DDS frequency range: 1HZ-65534Hz. High-speed frequency (HS) Square Wave: 1MHz/2MHz/4MHz/8MHz DDS signals: sine wave, square wave, sawtooth, reverse sawtooth, triangle wave, ECG wave and noise wave Section into the Value: 1,10,100,1000,10000 Hz Offset: 0.5pp-5Vpp Amplitude amount: 0.5Vpp-14Vpp Output impedance: 20-200 ohms

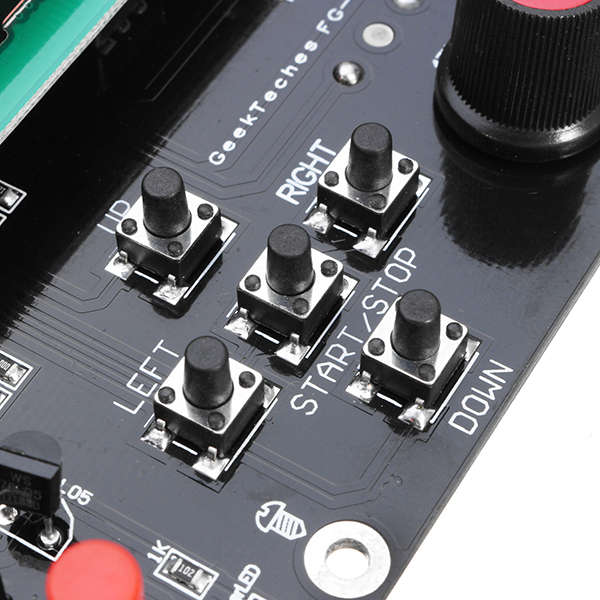

Color of PCB: black and blue random delivery Buttons Functions: UP: Output waveform select DOWN: Output waveform select LEFT: Output frequency - RIGHT: Output frequency + START/STOP: Output stop / start Package Includes: 1 x Signal Generator Module
















, , , , , , ,
