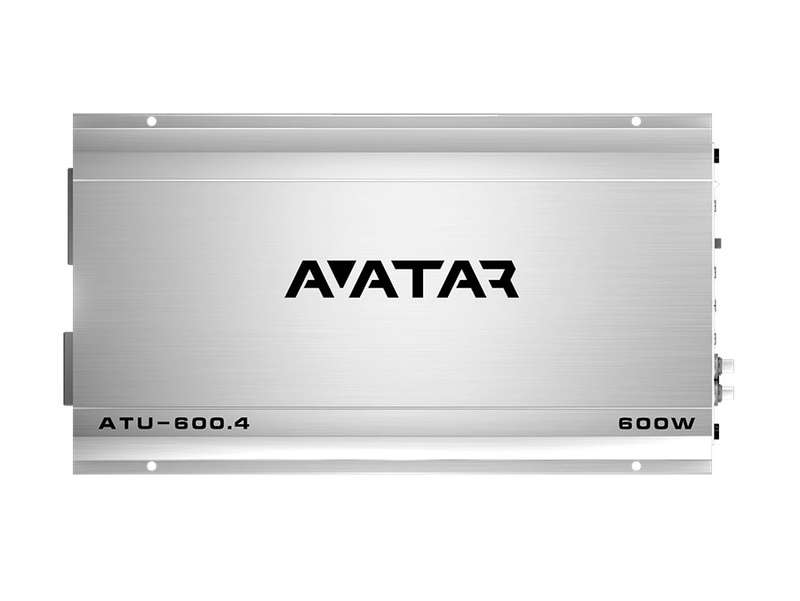

Deaf Bonce Avatar ATU-600.4 80rms 4 Channel Amplifier

Deaf Bonce Avatar ATU-600.4 80rms 4 Channel Amplifier

Tsunami Series

Avatar ATU-600.4 - 4-channel broaband amplifier (AB class) with summary power 600W.

Practical design, high power and considered filters make these models excellent decision for loud and high-quality car audio system.

Cast aluminium body has very good breaking resistanse. Also, heat resistance is very effective.

All the TSUNAMI monoblocs are bridgeable, that allows doubling the power to get desired maximum of sound pressure.

Model ATU-600.4
Class AB
Number of the channels 4
Frequency response 20 - 20000 Hz
2 Ohm RMS Power (14.4 V) 150 W x 4
4 Ohm RMS Power (14.4 V) 80 W x 4
4 Ohm RMS Power (Bridge) 300 W x 2
Minimum permissible load on the channel 2 Ohm
Minimum permissible load in a bridge connection 4 Ohm
Input SPL 0.2 - 6 V
Low pass filter 40 - 4000 Hz
High pass filter 20 - 4000 Hz
Crossover 12 dB/Oct
Input terminal 4 Ga
Output terminal 8 Ga
Damping factor 90
Working voltage 9 - 15 V
Size (W×L×H) 12.91 × 7.28 × 2.32 inch
Gross weight 7.72 lb (3.50 kg)
