Decibell N3A Mini Desktop PC - 12th Gen Intel Core I9 12950HX Processor (30MB Cache, 3.60GHz Up to 5.00GHz, 8 Cores), 16GB DDR4 3200MT/s SO-DIMM Memory, 512GB M.2 2280 NVMe SSD, Intel UHD Graphics, Support Up to 4090 x 2304 Resolution @ 60Hz Frequency, Support WiFi 6 and Bluetooth 4.2 Built-in Connectivity, Windows 11 Pro 64-Bit, Retail Box, 1 Year Warranty.
Product Overview

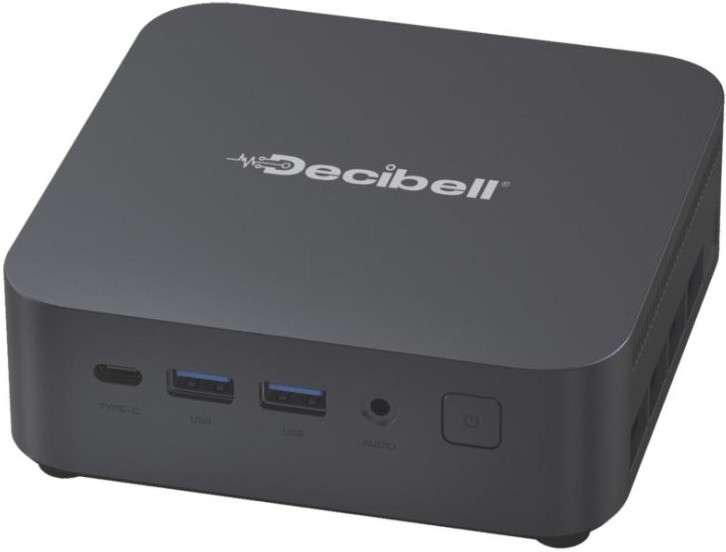

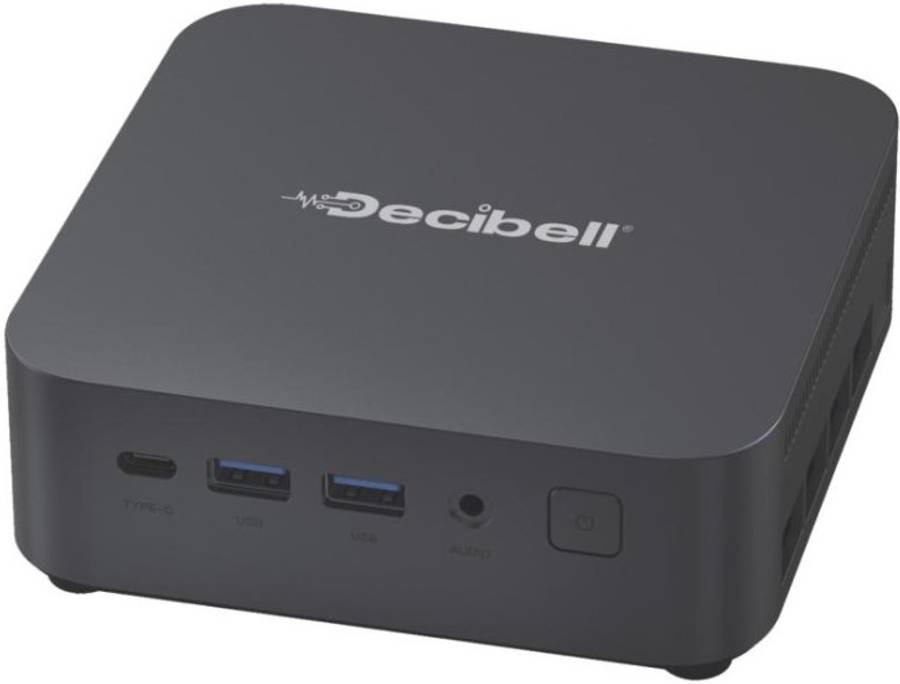

Decibell N3A Mini PC houses a desktop-grade 12th Gen Intel Core i9-12950HX (16 cores, 24 threads, up to 5.0 GHz) in a compact 128x128x41 mm plastic chassis (net 521.5 g) with VESA support for space-saving deployments. 16GB RAM Up to 64 GB DDR4 (2x SODIMM, 3200 MT/s), dual M.2 (one NVMe 2280 + one M.2 2280 SATA/NVMe) 512GB Storage supporting SSDs up to 2 TB, Intel UHD graphics (1.3 GHz) and triple-display outputs (HDMI 2.0, DP1.4b, 10 Gbps USBC). Connectivity includes WiFi 6, Bluetooth, single Gigabit LAN, six USB 3.0 TypeA ports, TPM 2.0, UEFI/diskless boot and Windows 11 Pro support - powered by a 19V/6.3A adapter, operating 0-40 deg C.
Specifications
-Product Code: N3A-I9-16-512-PRO
-Description: Decibell N3A Mini PC
-Processor: Intel Core i9-12950HX (12th Generation)
-Architecture: Alder Lake
-Process: Intel 7
-Segment: Mobile
-Total Cores: 16
-Performance Cores: 8
-Efficient Cores: 8
-Threads: 24
-Max Turbo Frequency: Up to 5.00 GHz
-Efficient Core Turbo: Up to 3.60 GHz
-Cache: 30 MB Intel Smart Cache
-Base Power: 55 W
-Minimum Assured Power: 45 W
-Maximum Turbo Power: 157 W
-GPU: Intel UHD Graphics (12th Gen)
-Graphics Frequency: Up to 1.30 GHz
-Maximum Resolution: 4096 x 2304 @ 60 Hz
-Multi-Display Support: Up to 3 Displays
-Display Outputs: HDMI 2.0 x1, DisplayPort 1.4b x1, USB Type-C x1 (Display + Data)
-Memory: 16GB DDR4 SO-DIMM(Up to 64GB)
-Memory Speed: Up to 3200MT/s
-Storage: 512GB M.2 2280 NVMe SSD (Up to 2TB)
-Wi-Fi Module: M.2 E-Key
-Wi-Fi Standards: IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 5 / Wi-Fi 6)
-Bluetooth: Bluetooth 4.2 / 5.2
-Ethernet: 1 x Gigabit Ethernet (10/100/1000 Mbps)
-SIM Support: Not Supported
I/O Ports
-USB 3.0 Type-A (5 Gbps): 6
-USB Type-C (10 Gbps + Display Output): 1
-HDMI 2.0: 1
-DisplayPort 1.4b: 1
-Gigabit LAN: 1
-DC Power Input: 1 (5.5 x 2.1 mm)
-3.5 mm Audio Combo Jack: 1
-Operating System: Windows 11 Professional
-Operating Temperature: 0 deg C to 40 deg C
-Storage Temperature: 20 deg C to 60 deg C
-Input Voltage: 100-240 V AC
-Frequency: 50/60 Hz
-Output: 19 V DC / 6.3 A
-Connector: DC Jack (5.5 x 2.1 mm)
