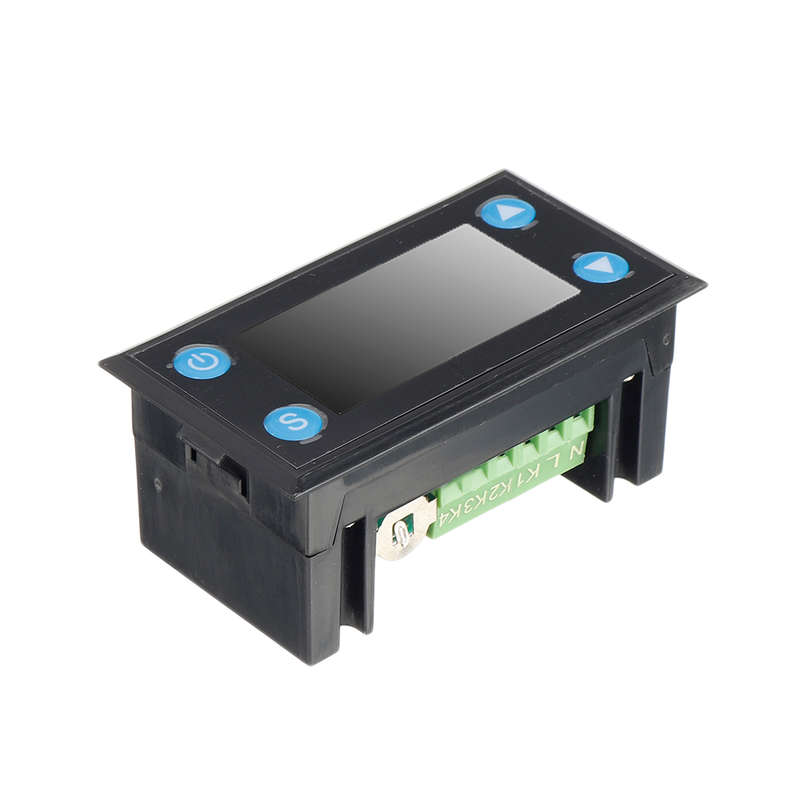

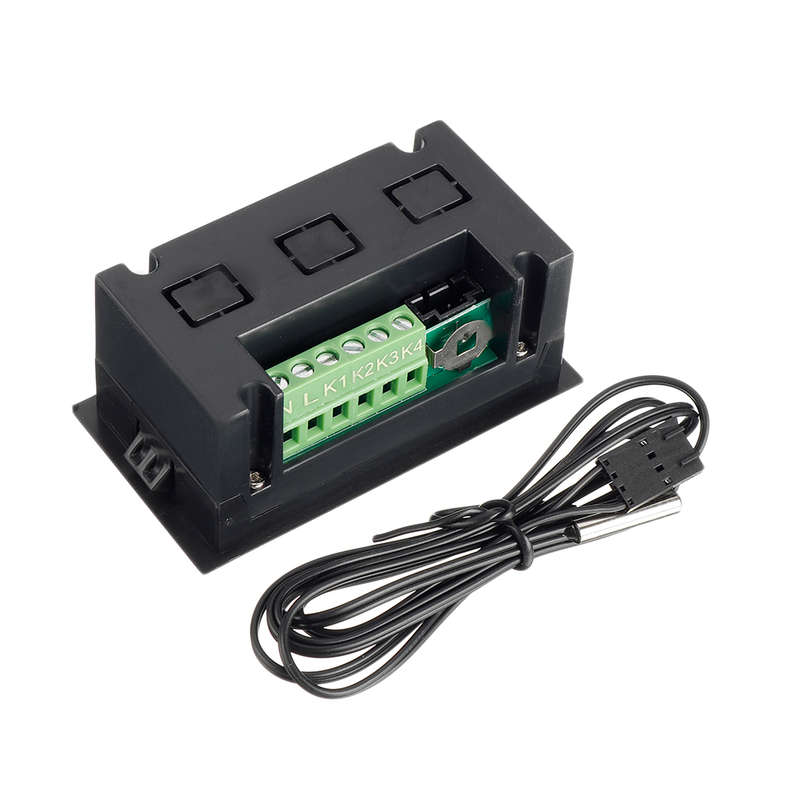

Product parameter: Product name: Intelligent temperature controller
Product model: W-1213 Power supply voltage: AC110-220V Working frequency: 50HZ Temperature range: -40ﾣC~+120ﾣC Temperature measurement accuracy: ±0.5ﾣC Sensor cable length: 100CM Size: 79.5*43*35mm Shell material: surface shell ABS, bottom shell flame retardant ABS Battery: CR1220 3V button battery(not included)
Display panel description: Heat (corresponding icon display): heating mode, in heating mode, heatingthe relay works. Cool (corresponding icon display): Cooling mode, in cooling mode, coolingthe relay works. Timer: Timer switch, in timer mode, the icon flashes OBJ LOW: Set lower limit of target temperature OBJ HIGH: target temperature setting upper limit Horizontal marquee: increasing. Going up means heating decreasing and going down means cooling
Key Description: 1. Power button aIn the power-on state, long press to power off aIn the shutdown state, long press to turn on aIn the setting mode, short press to confirm and press again to return to the home page displaytemperature.
2. Set key aLong press to enter the setting mode option aIn the setting mode option, short press to confirm the currently selected setting mode.
3. Minus key In the setting mode interface, short press-times to subtract 1, long press to continue to subtract In the non-setting interface, long press to cancel the timing time.
4. Add key In the setting mode interface, short press--times to increase by 1, long press to continue to increase. In the non-setting interface, short press to view the timer shutdown time setting value, long presstiming.
5. Combination keys Setting key + number minus (restore factory settings) In the power-on state, pressing the key combination at the same time will restore the factory settings (long press)
Mode description: Under normal operation, the LCD screen displays the real-time measured value of the current temperature, and
Automatic recognition and conversion of cooling and heating working modes.
1. Cooling mode: aWhen the real-time temperature a the target temperature upper limit setting value, enter the cooling mode Type, the Cool indicator icon is on, the marquee decreases, and the refrigeration relay works. aWhen the refrigeration temperature drops to the lower limit set value of the target temperature, the refrigeration relay The thermostat stops working, and the thermostat enters the temperature control state, and the temperature control range is the target temperatureupper and lower limit setting value. aWhen the refrigeration temperature rise value a the target temperature upper limit setting value, the snowflake mark The logo starts to flash, the thermostat enters the press delay state, and the press delay time is over.The cold relay only starts to work, (press delay time can be set)
2. Heating mode: aWhen the real-time temperature a the lower limit set value of the target temperature enters the heating state, The Heat indicator icon lights up, the marquee increases, and the heating relay works. aWhen the heating temperature reaches the target temperature upper limit setting value, the heating relay stops Stop working, the marquee stops, the thermostat enters the temperature control state, the temperature control range is the targetstandard temperature upper and lower limits.
3. Timing on/off mode: aSet the scheduled shutdown time in the power-on state through the number plus key. In the timer mode, you can turn off the timer shutdown function by long pressing the plus button aThrough the number minus key, set the timing power-on time in the off state, In the timer mode, you can turn off the timer boot function by long pressing the minus button.
Notes: aIn normal mode, short press the power button or plus button to view the setting parameters, 1 secondback to normal mode later. aIn the setting mode, if no button is pressed, it will automatically return after 10 secondsnormal working mode. aIn the setting mode, when a certain option value is set, if the setting is not pressedPress the key or power key to confirm and return, and automatically return to normal working mode after 10 secondsWhen, the value will not be saved.
Package Included: 1 x Digital Display Temperature Humidity Controller
