Brand New & Sealed with Manufacturer Warranty

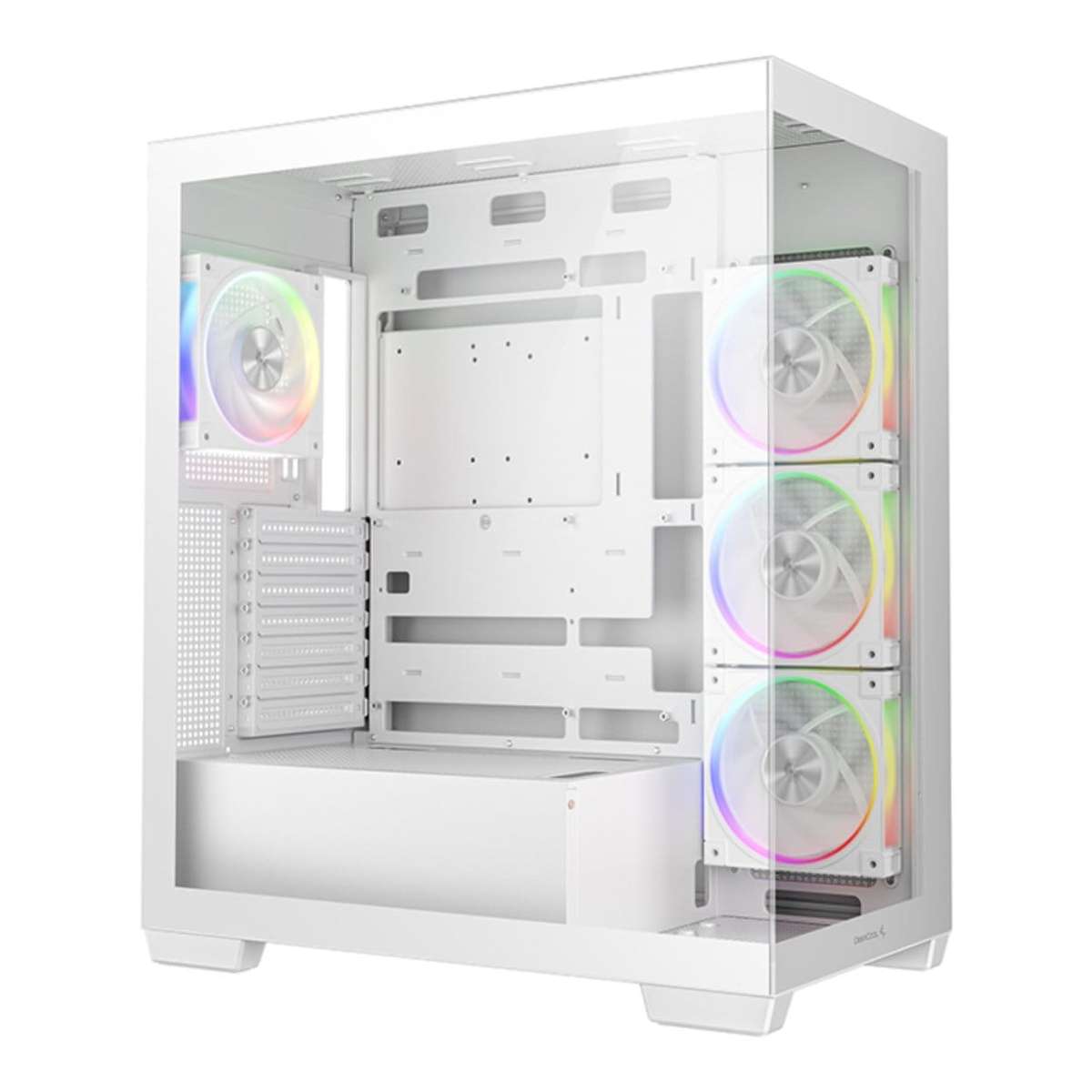

DeepCool CG580 4F V2 TCG580 4F V2 ARGB Midi Tower ATX White Gaming PC Case R-CG580-WHADA4-G-2
The CG580 4F V2 WH is a picturesque single-chamber case crafted to elegantly display the most commonly used components. Equipped with 4 ARGB fans, support for 360mm radiators, and multiple fan configurations, it combines style with exceptional functionality. The design features a no A-pillar construction, along with glass side and front panels offering a 270°view, allowing builders to fully appreciate their hardware.
Features:
SCENIC VIEW
The lack of an A pillar between the front and side tempered glass panels removes the main obstruction to a clear and uninterrupted view of your incredible build. Your system will look more streamlined and cleaner thanks to the motherboard tray that can support mainstream motherboards models with back connectors from ASUS and MSI.
INNOVATIVE COOLING PLUS VISUAL EXPERIENCE
The CG580 4F V2 WH stands out with a pre-installed cooling setup, featuring three PWM ARGB reverse flow fans on the side and one standard PWM ARGB fan at the rear. This configuration creates a streamlined airflow path that enhances thermal efficiency. Coordinated ARGB lighting across the fan frames and rings supports motherboard sync for a unified and dynamic visual effect.
LED BUTTON OPERATION INSTRUCTIONS
Switching Lighting Effect
Short press the LED button to cycle through 16 pre-set lighting effects.
When Connected to Motherboard Sync Cable
Long press the LED button (about 2-3 seconds) until a white flash: Enter motherboard synchronization mode. The lighting effects will now be controlled by the motherboard.
During Motherboard Sync Mode
Long press the LED button for 2 seconds: Exit the motherboard sync mode and return to lighting control by the case lighting control board.
THE SUPPORT YOU NEED
The CG580 4F V2 WH is designed to support a wide range of components, ensuring flexibility for any build. It supports a 210mm PSU and a 410mm GPU, with the option to fit a 262mm GPU when a radiator is vertically installed on the side of the motherboard. The case is compatible with ATX motherboards and features 7 expansion slots, along with 2 x 3.5" drive bays and 2 x 2.5" drive bays, providing ample space for storage and expansion.
EXCEPTIONAL COOLING CAPACITY
The CG580 4F V2 WH is designed for maximum cooling efficiency, supporting a variety of radiator configurations, including up to 360mm on the top, 360mm on the side, and 140mm at the rear. It accommodates multiple fan setups, with options for 3×120mm or 2×140mm on the top, 3×120mm on the side, and 1×120mm or 1×140mm at the rear. The bottom offers a choice between a 3.5" HDD or a 120mm fan, while the PSU shroud can house 2×120mm fans. Additionally, the case supports CPU coolers up to 176mm, ensuring your system stays cool under the most demanding conditions.
QUALITY OF LIFE FEATURES
With two USB 3.0 ports, one TYPE-C port and a hybrid audio port that can be accessed from the top I/O panel, connecting temporary devices is a breeze. Wire management is also facilitated with a 33mm backplane. The magnetic filters on the top, bottom and side keep dust out and makes cleaning a little easier.
Technical Specifications:
Materials ABS + SGCC + Tempered Glass
Motherboard Support
ITX/Micro-ATX/ATX
ATX(Rear Connector)
Micro-ATX(Rear Connector)
Front I/O Ports: USB3.0×2/Gen2 Type-C×1/Audio&Mic×1
3.5 Drive Bays: 2
2.5 Drive Bays: 2
Expansion Slots: 7 Slots
Pre-Installed Fans Side:
3×120mm(PWM+ARGB Reverse Blade)
Rear: 1×120mm(PWM+ARGB)
Fan Support:
Front: NA
Top: 3×120mm/2x140mm
Side: 3x120mm
Rear: 1×120mm/1x140mm
Bottom: 1×120mm(3.5 HDD/120FAN :Choose one of two)
PSU Shrouded: 2×120mm
Radiator Support
Front: NA
Top: 120/140/240/280/360mm
Side: 120/240/360mm
Rear: 120/140mm
CPU Cooler Height Limit: 176mm
GPU Length Limit: 410mm (limited to 262mm if a 360mm radiator and fan set are mounted on the side)
Power Supply Type: ATX PS2(maximum length: 210mm)
Colour: White
Product Dimensions: 43.7 x 23.5 x 50.1 cm
Product Weight: 8800g
What's in the Box:
